LDO

36V CST75xx series

     The CST75XX 36V series is a highvoltage,ultralow-power,low dropout voltage regulator.
     The device can deliver 150mA output current with a dropout voltage of 300mV and allows an input voltage as high as 36V. The typical quiescent current is only 1.5µA. The device is available in fixed output voltages of 1.8,2.5,2.8,3.0,3.3,3.6,4.0,4.2,4.4 and 5.0V.
     The device features integrated short-circuit and thermal shutdown protection.Although designed primarily as fixed voltage regulators, the device can be used with external components to obtain variable voltages.
    CST75XX 36V ​Description
        The CST75XX 36V series is a highvoltage,ultralow-power,low dropout voltage regulator.
         The device can deliver 150mA output current with a dropout voltage of 300mV and allows an input voltage as high as 36V. The typical quiescent current is only 1.5µA. The device is available in fixed output voltages of 1.8,2.5,2.8,3.0,3.3,3.6,4.0,4.2,4.4 and 5.0V.The device features integrated short-circuit and thermal shutdown protection.Although designed primarily as fixed voltage regulators, the device can be used with external components to obtain variable voltages.

    CST75XX 36V  series Features:
    Low Power Consumption: 1.5µA (Typ)
    Maximum Output Current: 150mA
    Small Dropout Voltage
       300mV@100mA (Vout=3.3V)
    CST7550(B)±2% Output Voltage
    CST7550(A) ±1% Output Voltage
    RoHS Compliant and Lead (Pb) Free
    Good Transient Response
    Integrated Short-Circuit Protection
    Over-Temperature Protection
    Output Current Limit
    Stable with Ceramic Capacitor
    Support Fixed Output Voltage
    1.8,2.5,3.0,3.3,3.6,4,0,4.2 and 5.0V
    SOT23-3/SOT89-3

    CST75XX 36V  series Application:
    Portable, Battery Powered Equipment
    Smoke detector and sensor
    Battery-powered equipment
    Audio/Video Equipmen
    Weighting Scales
    Home Automation

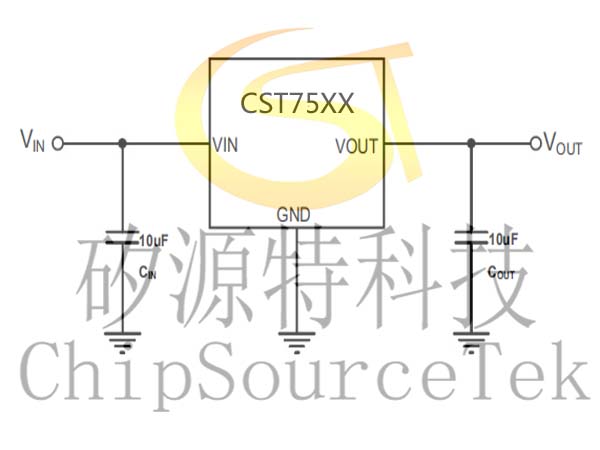

    CST75XX 36V  series Application Circuits:

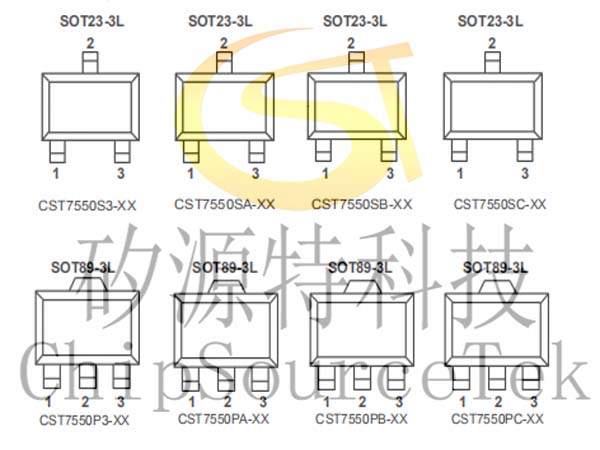

    CST75XX 36V  series  Pin Configuration:


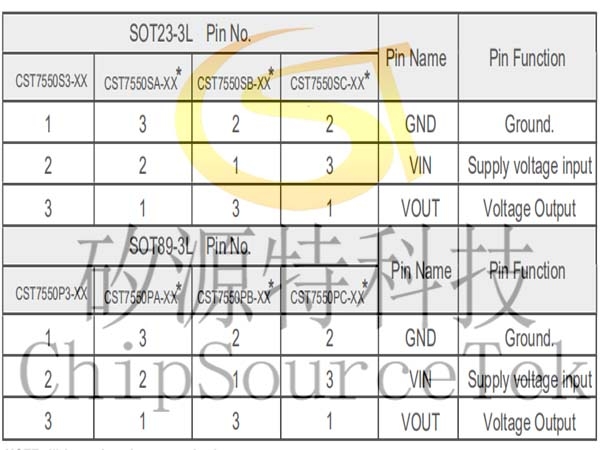

    CST75XX 36V  series Pin Description:


    CST75XX 36V  series Order Information:
    CST7550①②③④⑤
    Designator
    Symbol
    Description
    ①②
    S3/P3
    SOT23-3L/SOT89-3L
    ③④
    Integer
    Output Voltage 1.8,2.5,2.8,3.0,3.3,3.6,4.0,4.2and5.0
    A
    Accurate±1%
    B
    Accurate±2%

    Model
    Marking
    Description
    Package
    T/R Qty
    CST7550S3-XX*
    AFXXA(B)
    CST7550 36V;1.5μAIQ
    150mA Low-Dropout LDO
    SOT23-3L
    3000PCS
    CST7550P3-XX*
    AFXXA(B)
    SOT89-3L
    1000PCS
       Note:(*)XX Represents the Output Voltage

    CST75XX 36V
     series Marking Information:
    ①②Represents the product name
    Mark①②
    Product Series
    AF
    CST7550 S3/P3
    ③④Represents the Output Voltage
    Mark
    Output Voltage(V)
    Mark
    Output Voltage(V)
    18
    1.8
    36
    3.6
    25
    2.5
    40
    4.0
    28
    2.8
    42
    4.2
    30
    3.0
    50
    5.0
    33
    3.3


    ⑤Represents the Output Voltage Accurate
    Mark
    Product Series
    ±1% Output Voltage
    ±2%Output Voltage
    CST7550(AorB)
    A
    B

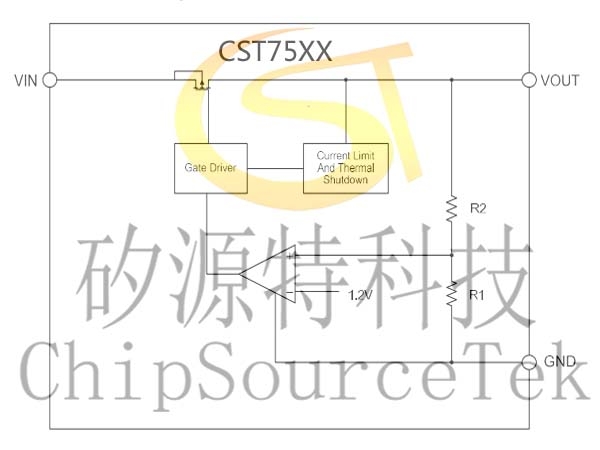

    CST75XX 36V  Function Block Diagram:
