LVD

TX70XXM

    The TX70XXM series devices are a set of three terminal low power voltage detectors implemented in CMOS technology. Each voltage detector in the series detects a particular fixed voltage ranging from 0.9V to 5.0V.

    The voltage detectors consist of a high-precision and low power consumption standard voltage source as well as a comparator,hysteresis circuit, and an output driver (CMOS inverter or NMOS open drain). CMOS technology ensures low power consumption.

    Although designed primarily as fixed voltage detectors, these devices can be used with external components to detect user specified threshold voltages.
    TX70XXM General Description:
        The TX70XXM series devices are a set of three terminal low power voltage detectors implemented in CMOS technology. Each voltage detector in the series detects a particular fixed voltage ranging from 0.9V to 5.0V. The voltage detectors consist of a high-precision and low power consumption standard voltage source as well as a comparator,hysteresis circuit, and an output driver (CMOS inverter or NMOS open drain). CMOS technology ensures low power consumption.
        Although designed primarily as fixed voltage detectors, these devices can be used with external components to detect user specified threshold voltages.

    TX70XXM Features:
    Low power consumption
    Low temperature coefficient
    Built-in hysteresis characteristic
    High input voltage (up to 10V)
    Output voltage accuracy: tolerance ±1% or ±2%
    TO92, SOT89, SOT23-3 ,SOT23 and SOT23-5 package

    TX70XX Applications:
    Battery checkers
    Level selectors
    Power failure detectors
    Microcomputer reset
    Battery memory backup
    Non-volatile RAM signal storage protectors

    TX70XX Selection Table:
    Part No.
    Det. Voltage
    Hys. Width
    Output
    Tolerance
    Package
    TX7009MCxx
    0.9V
    4%
    CMOS
    ±1%or±2%
    TO92
    SOT89
    SOT23-3
    SOT23
    SOT23-5

    TX7009MNxx
    0.9V
    4%
    NMOS
    ±1%or±2%
    TX7010MCxx
    1.0V
    4%
    CMOS
    ±1%or±2%
    TX7010MNxx
    1.0V
    4%
    NMOS
    ±1%or±2%
    TX7011MCxx
    1.1V
    4%
    CMOS
    ±1%or±2%
    TX7011MNxx
    1.1V
    4%
    NMOS
    ±1%or±2%
    TX7012MCxx
    1.2V
    4%
    CMOS
    ±1%or±2%
    TX7012MNxx
    1.2V
    4%
    NMOS
    ±1%or±2%
    4%
    ±1%or±2%
    TX7050MCxx
    5.0V
    4%
    CMOS
    ±1%or±2%
    TX7050MNxx
    5.0V
    4%
    NMOS
    ±1%or±2%

    TX70XX Order Information:
    TX70①②③④⑤⑥⑦
    Designator
    Symbol
    Description
    ①②
    Integer
    Output Voltage(0.9~5.0V)
    M
    Standard
    C
    CMOS output
    N
    NMOS output
    T
    Package:TO-92
    P
    Package:SOT89
    M
    Package:SOT23-3
    N
    Package:SOT23
    M5
    Package:SOT23-5
    R
    RoHS / Pb Free
    G
    Halogen Free
    1
    ±1% accuracy

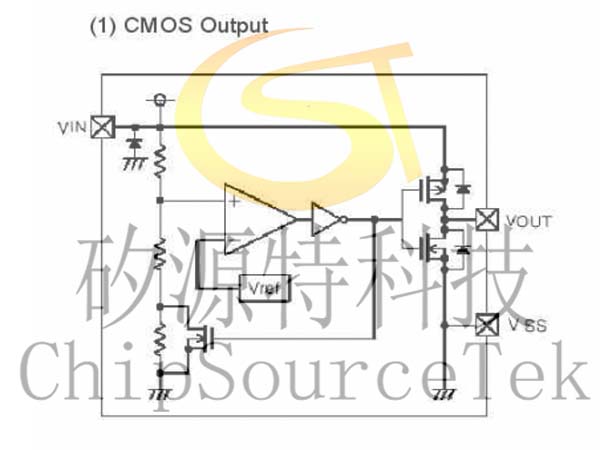

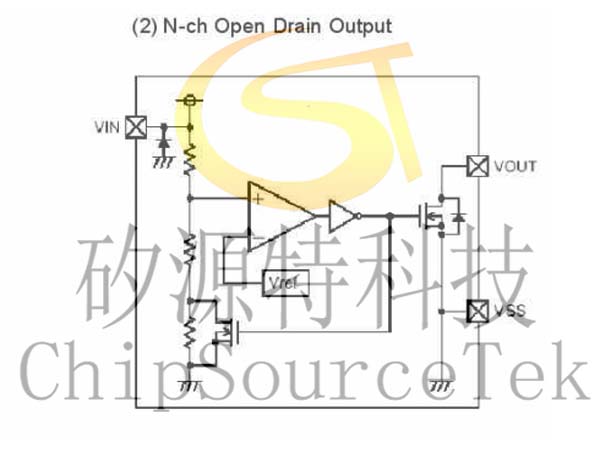

    TX70XX Block Diagram:


    TX70XX Pin Assignment:

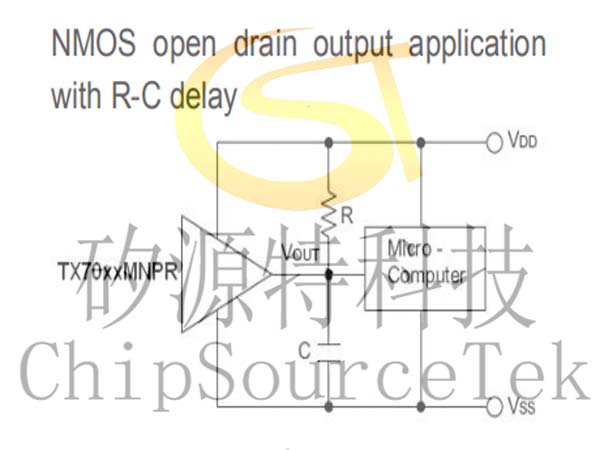

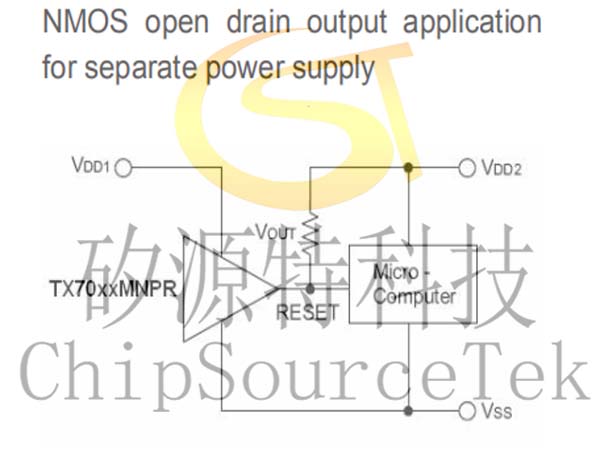

    TX70XX Application Circuits:
