TX75XXH

    The TX75XXH series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 32V. They are available with several fixed output voltages ranging from 2.5V to 5.0V.

    CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.
    TX75XXH General Description:
        The TX75XXH series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 32V. They are available with several fixed output voltages ranging from 2.5V to 5.0V.
        CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.

    TX75XXH Features:
    Low power consumption
    Low voltage drop
    Low temperature coefficient
    High input voltage (up to 32V)
    Output voltage accuracy: tolerance ±3%
    TO92 and SOT89 package

    TX75XXH Applications:
    Battery-powered equipment
    Communication equipment
    Audio/Video equipment

    TX75XXH Selection Table:
    Part No.
    Output Voltage
    Package
    Marking
    TX7525Hxx
    2.5V
    TO92
    SOT89
    75XX-H#(for TO92)
    75XX-H#(for SOT89)
    TX7527Hxx
    2.7V
    TX7530Hxx
    3.0V
    TX7533Hxx
    3.3V
    TX7536Hxx
    3.6V
    TX7540Hxx
    4.0V
    TX7544Hxx
    4.4V
    TX7550Hxx
    5.0V
    Note:”XX” stands for output voltages.
         TO92 & SOT89 packages will add a “#” mark at the end of the marking.

    TX75XXH Order Information:
    TX75①②③④⑤
    Designator
    Symbol
    Description
    ①②
    Integer
    Output Voltage(2.1~6.0V)
    H
    Standard
    T
    Package:TO-92
    P
    Package:SOT89
    R
    RoHS/Pb Free
    G
    Halogen Free

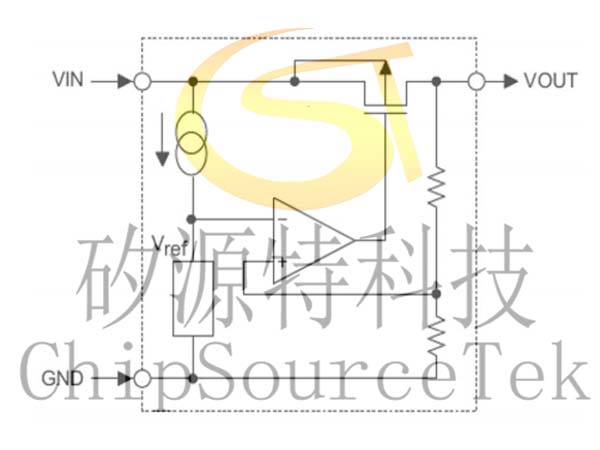

    TX75XXH Block Diagram:


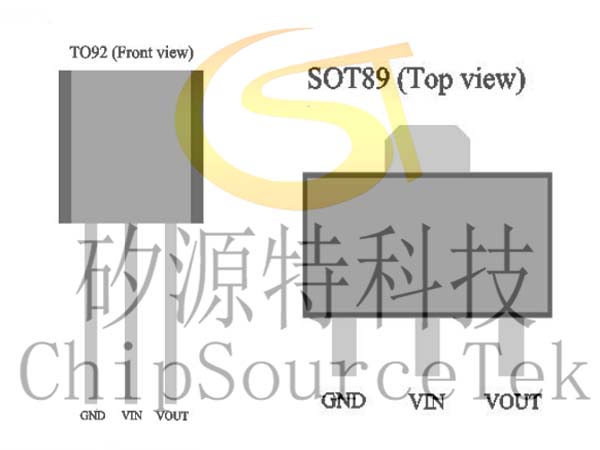

    TX75XXH Pin Assignment:


    TX75XXH Application Circuits:

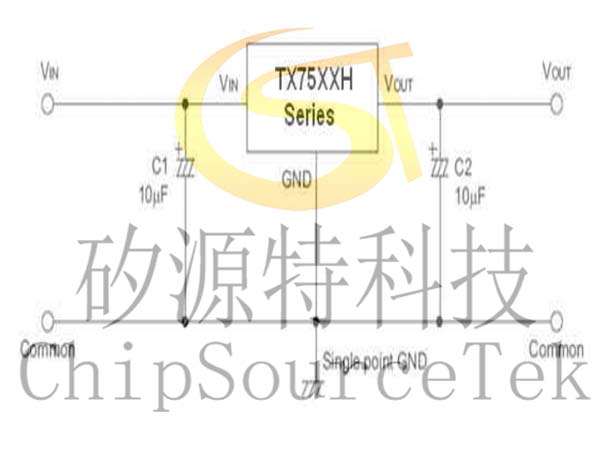

    Basic Circuits

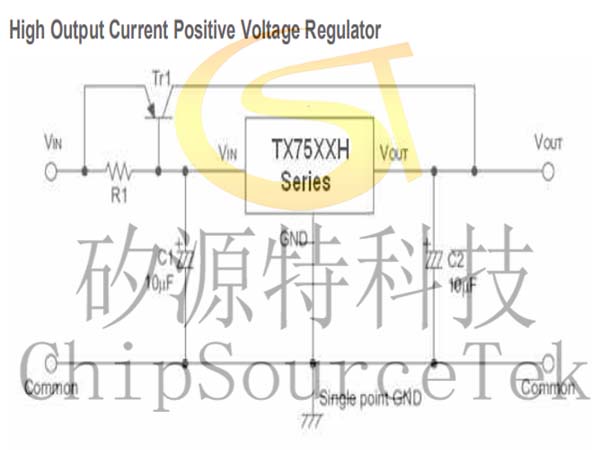

    High Output Current Positive Voltage Regulator

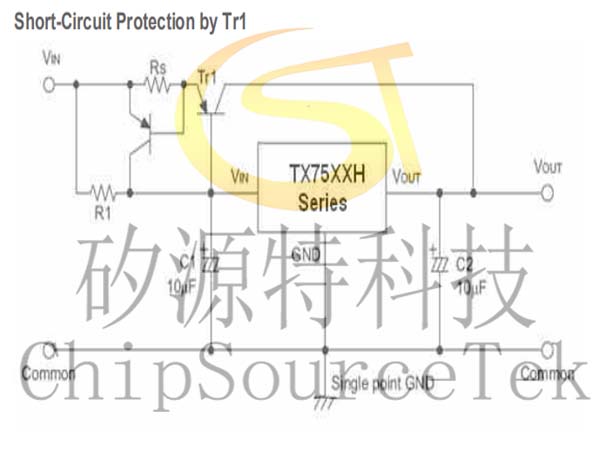

    Short-Circuit Protection by Tr1

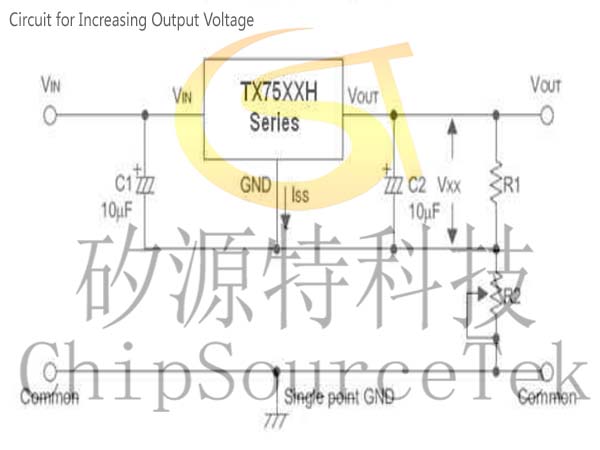

    Circuit for Increasing Output Voltage

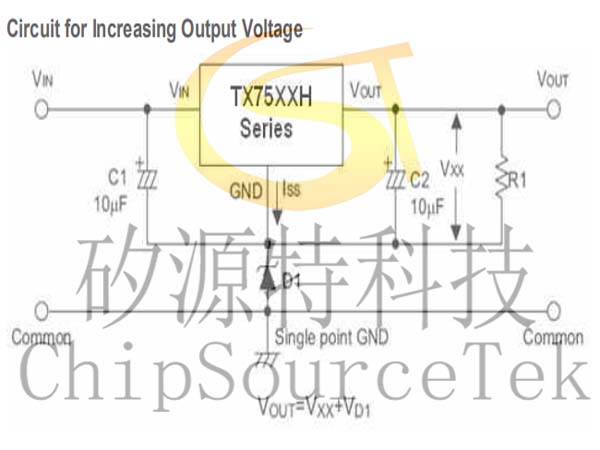

    Circuit for Increasing Output Voltage

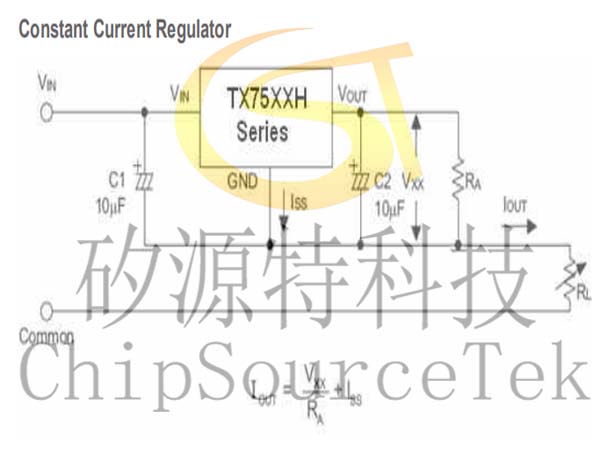

    Constant Current Regulator

    Dual Supply
