TX1117

    TX1117 is a series of low dropout three-terminal regulators with a dropout of 1.3V at 1A load current. TX1117 features a very low standby current 2mA compared to 5mA of competitor.

    Other than a fixed version, Vout = 1.2V, 1.8V, 2.5V, 3.3V, 5V, and 12V, TX1117 has an adjustable version, which can provide an output voltage from 1.25 to 12V with only two external resistors.

    TX1117 offers thermal shut down and current limit functions, to assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within 2%. Other output voltage accuracy can be customized on demand, such as 1%.

    TX1117 is available in SOT-223, TO-252 power package.
    TX1117 GENERAL DESCRIPTION:
        TX1117 is a series of low dropout three-terminal regulators with a dropout of 1.3V at 1A load current. TX1117 features a very low standby current 2mA compared to 5mA of competitor.
        Other than a fixed version, Vout = 1.2V, 1.8V, 2.5V, 3.3V, 5V, and 12V, TX1117 has an adjustable version, which can provide an output voltage from 1.25 to 12V with only two external resistors.
        TX1117 offers thermal shut down and current limit functions, to assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within 2%. Other output voltage accuracy can be customized on demand, such as 1%.
        TX1117 is available in SOT-223, TO-252 power package.

    TX1117 Features:
    Maximum output current is 1A
    Range of operation input voltage: Max 12V
    Line regulation: 0.1%/V (typ.)
    Standby current: 2mA (typ.)
    Load regulation: 10mV (typ.)
    Environment Temperature: -20℃~85℃

    TX1117 Applications:
    Power Management for Computer Mother Board, Graphic Card
    LCD Monitor and LCD TV
    DVD Decode Board
    ADSL Modem
    Post Regulators For Switching Supplies

    TX1117 Selection Table:
    Marking
    Part No. Output
    Voltage
    Package
    1117 B
    XXYYZZ
    XX=12
    1.2V
    SOT-223
    TO-252

    XX=18
    1.8V
    XX=25
    2.5V
    XX=33
    3.3V
    XX=50
    5.0V
    XX=120
    12.0V
    XX=AD
    Adjustable

    TX1117 Order Information:
    Marking
    Designator
    Description
    1117 B
    XXYYZZ
    1117
    Product code
    B
    Fab Code
    XX
    Output Voltage(1.2~12.0V)
    YY
    LOT NO.
    ZZ
    DATA CODE
    Note:”XX” stands for output voltages. Other voltages can be specially customized

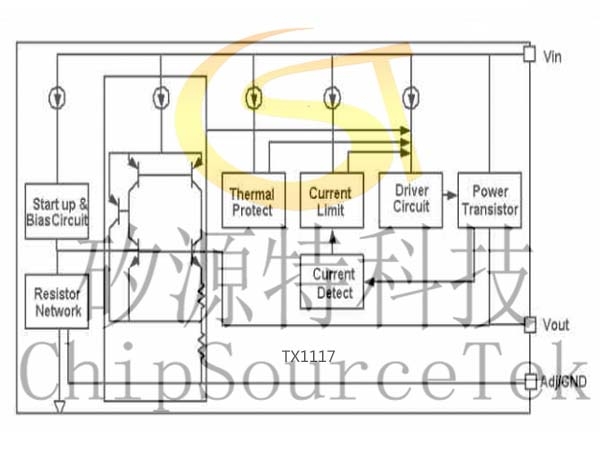

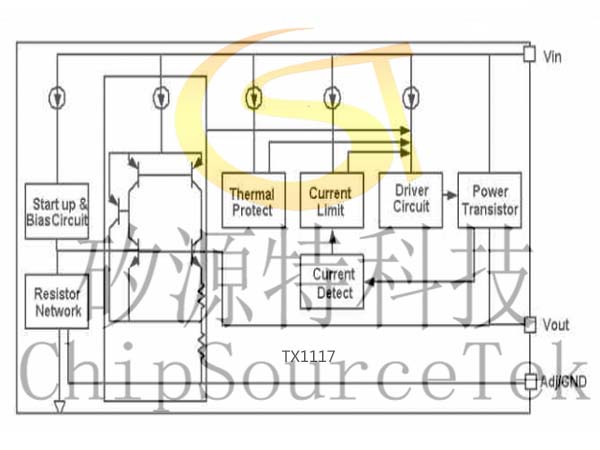

    TX1117 Block Diagram:

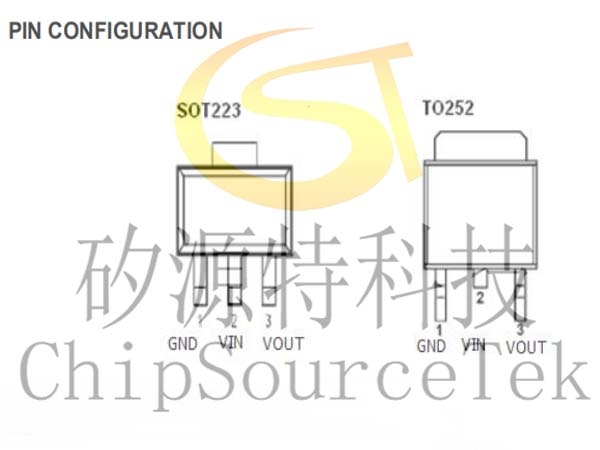

    TX1117 Pin Assignment:

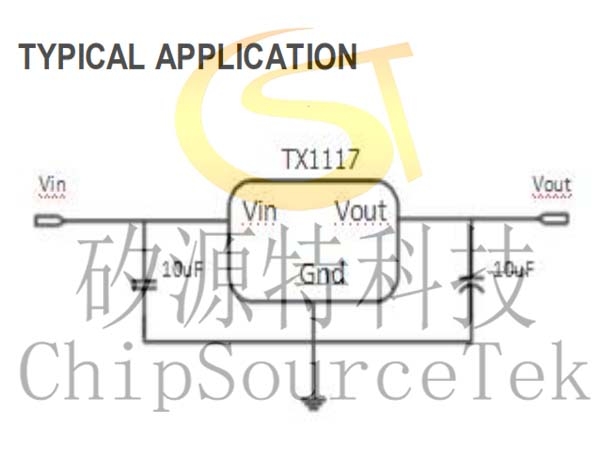

    TX1117 Application Circuits:
