RY3708 General Description:
    The RY3708 is a constant frequency, current mode step-up converter intended for small, low power applications.
    The RY3708 switches at 1.2MHz and allows the use of tiny, low cost capacitors and inductors 2mm or less in height.Internal soft-start results in small inrush current and extends battery life.
    The RY3708 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The RY3708 is available in a small 6-pin SOT-23 package.

RY3708 Features:
2.5V to 5.5V Input Voltage
2.5V to 5.5V Output Voltage
1.2MHz Fixed Switching Frequency
Internal 4A Switch Current Limit
Thermal Shutdown
Integrated 80mΩ Power MOSFET
Output Adjustable from 0.6V
Internal Compensation
-40°C to +85°C Temperature Range
Available in SOT23-6 Package

RY3708 Applications:
Digital Set-top Box (STB)
Tablet Personal Computer (Pad)
Battery-Powered Equipment
Portable Media Player (PMP)
General Purposes

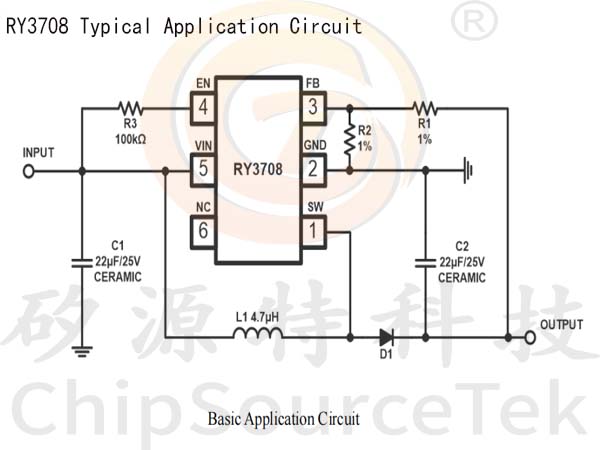

RY3708 Typical Application Circuit:

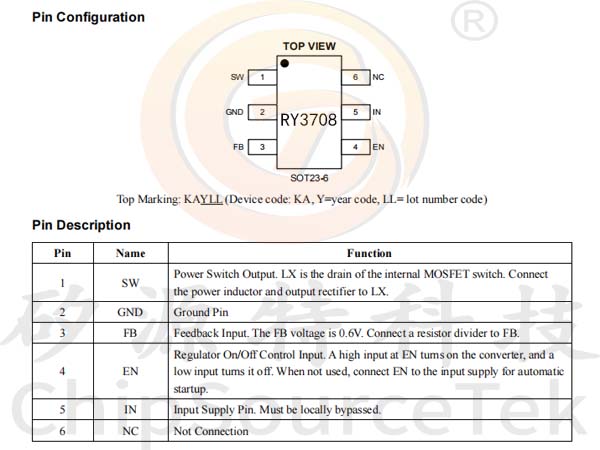

RY3708 Pin Description:

RY3708 Order Information:

Marking	Part No.	Model	Description	Package	MOQ
KAYLL	70390001	RY3708	RY3708 Boost, VIN 2.5V-5.5V/VOUT 2.5V- 5.5V, 1.2MHz, SOT23-6	SOT23-6	3000PCS

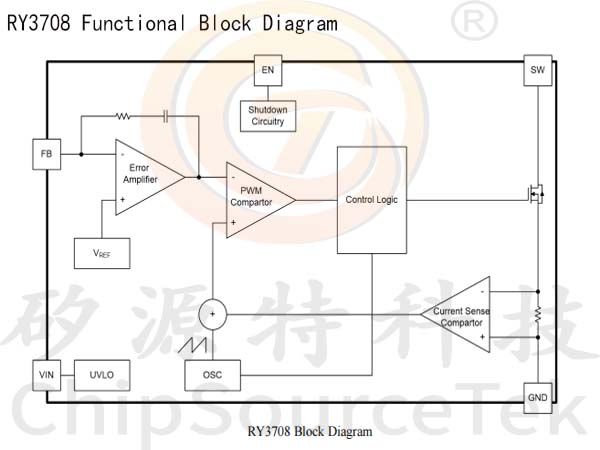

RY3708 Functional Block Diagram:
