AXS5106S是一种高性能的自电容器触摸控制器，支持各种自电容器传感器模式，具有优良的信噪比，在保持超低功耗的同时实现高精度和线性度。它非常适合用于便携式移动设备，如智能手表和智能手环。

    AXS5106S is a high-performance self-capacitor touch controller that supports various self-capacitor sensor patterns and has excellent signal-to-noise ratio to achieve high accuracy and linearity while maintaining ultra-low power consumption. It is very suitable for portable mobile devices such as smart watches and smart bracelets.

  Highly sensitive self-capacitance detection technology

  Support up to 13 channels

  The maximum screen size is 3 inches

  Support GF, GG, OGS and other screen structure

  Support various ITO Sensor patterns (triangles, squares, etc.)

  Support four work modes: Normal mode, Idle mode, LPWG (low power wake-up gesture) mode, Sleep mode

  The sleep mode power consumption is as low as 5uA, the LPWG mode consumption is as low as 10uA,the Idle mode consumption is as low as 100uA, and the normal mode power consumption is as low as 1.2mA

  Touch point report rate up to 240Hz;

  Auto calibration

  Supports I2C interfaces

  Support online programming

  Single power supply 2.7V to 3.6V

  Package：QFN20 3x3x0.55mm

  The AXS5106S is dedicated for self-capacitive touch panel; its typical applications are listed as follows:

   -Smart watch, Smart bracelet

   -GPS navigator

   -Digital camera

   -Game consoles

   -Portable media player

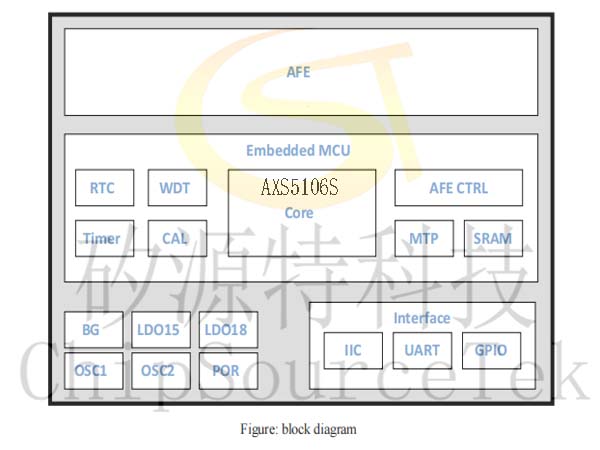

The overall system block diagram of the AXS5106L is shown as Figure below.

There are three work modes available:

Work modes switching conditions are shown as below:  -Sleep mode
