CSTS60J04F Description:
    CSTS60J04F是BVDSS=40V,RDSON=6.9mΩ,ID=40A的双N沟道Mosfet。提供DFN5060-8L封装。

CSTS60J04F Feature:
Split Gate Trench MOSFET technology
Excellent package for heat dissipation
High density cell design for low RDS(ON)

CSTS60J04F Applications:
DC-DC Converters
Power management functions
Synchronous-rectification applications

CSTS60J04F Product Summary:

BVDSS	RDSON	ID
40V	6.9mΩ	40A

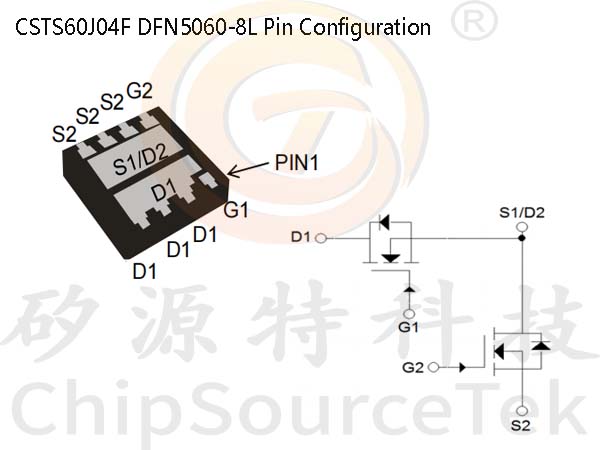

CSTS60J04F DFN5060-8L Pin Configuration:

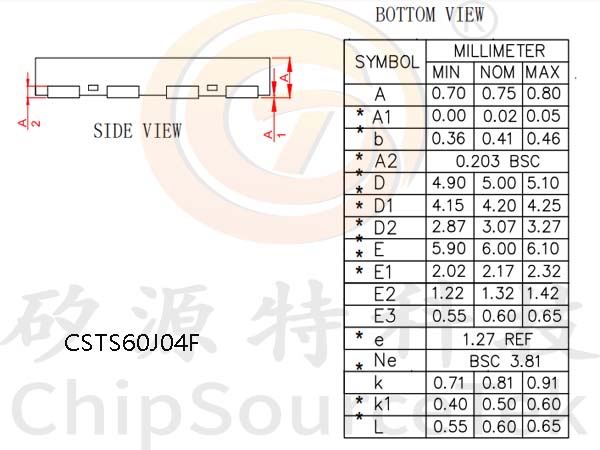

CSTS60J04F DFN5060-8L Package Information:
