3401-PS Description:
    3401-PS是VDS=-30V, ID=-3.9A,RDS(ON <79mΩ@VGS=-4.5V,RDS(ON <65mΩ@VGS=-10V的P沟道功率Mosfet。提供SOT-23封装。

3401-PS Features：
VDS=-30V, ID=-3.9A
RDS(ON <79mΩ@VGS=-4.5V
RDS(ON <65mΩ@VGS=-10V
High Power and Current Handing Capability
Lead Free Product is Acquired
Surface Mount Package

3401-PS Application:
PWM Applications
Load Switch
Power Management

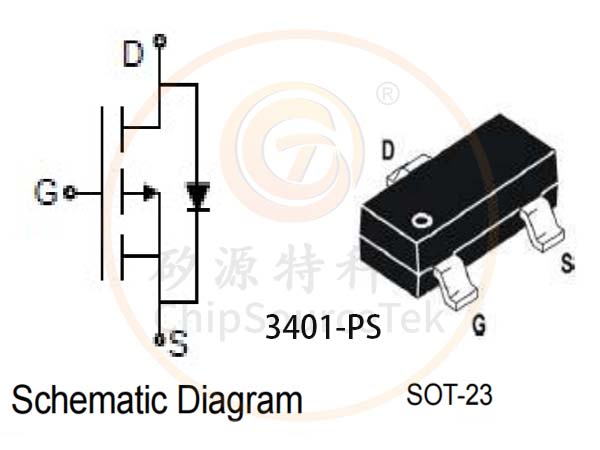

3401-PS Package:

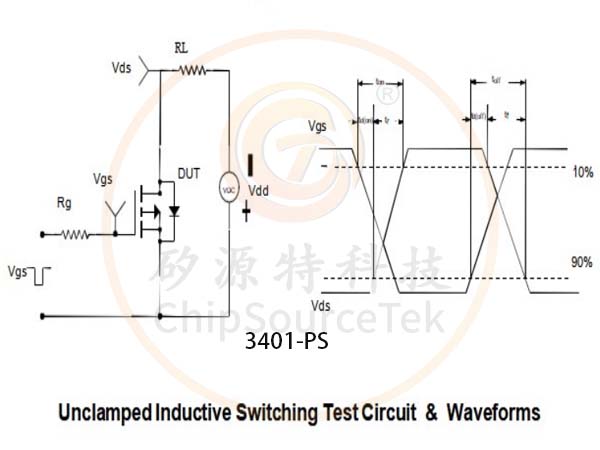

3401-PS Unclamped Inductive Switching Test Circuit & Waveforms:
