DCDC芯片FB分压电阻电路设计
发布时间:2025-07-06 08:53:00    浏览:22次

    在使用到DCDC芯片电路设计时会遇到计算分压电阻问题,下面简单介绍下如何计算

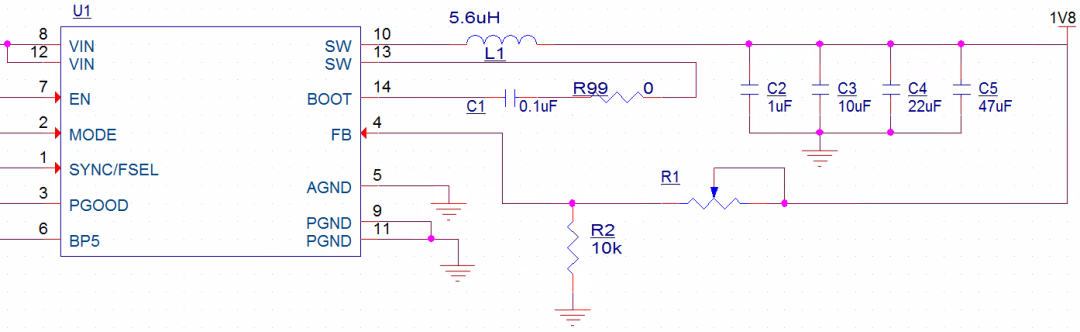

    如下电路,输出电压为Vout=1.8V

    查询芯片VFB电压为多少

    datasheet上查到VFB电压VFB=0.5V
    计算公式如下

    R1通常选用可调电阻,50K或200K等等都可以。R1选定值后,计算R2公式如下:
