LPA2101
LPA2101是一款30W,F类单频音频放大器，AB/D可选模式及AGC功能、能够提供29W的连续平均功率为4ΩBTL负载的失真(THD)小于10%15V直流电源。
LPA2101工作电压范围:4.3V~15.5V, 550KHz固定频率开关放大器。
LPA2101设备受到充分保护具有短路保护和热保护保护。
LPA2110A采用ESOP-8封装。
LPA2101工作电压范围:4.3V~15.5V, 550KHz固定频率开关放大器。
LPA2101设备受到充分保护具有短路保护和热保护保护。
LPA2110A采用ESOP-8封装。
LPA2101概述：
The LPA2101 is a 30W, class F mono audio amplifier integrated Class AB/D optional mode and AGC function. It is capable of delivering 29watts of continuous average power to a 4Ω BTL load with less than 10% distortion (THD) from a 15V DC power supply. It offers low THD+N, allowing it to achieve high-quality Power Supply sound reproduction.
The LPA2101 device is fully protected against faults with short-circuit protection and thermal protection. Faults are reported back to the processor to prevent devices form being damaged during overload conditions
LPA2101特性：
Wide voltage range: 4.3V~15.5V 550KHz fixed frequency switching for amplifier
29W Output at 10% THD with a 4Ω Load and 15V VDD for amplifier 19W Output at 10% THD with a 4Ω Load and 12V VDD for amplifier
Integrated Self-Protection Circuits Including, Under-Voltage, Over-Temperature, and Short Circuit
High Efficient Class-D Operation: >86%
Filterless, Low Quiescent Current and Low EMI
Pb-Free Package
LPA2101应用：
Mini-Micro Component, Speaker Bar, Docks
After-Market Automotive
Consumer Audio Applications, CRT TV‘’
Portable Bluetooth Speaker
Cellular and Smart mobile phone
Square Speaker
LPA2101订购信息：

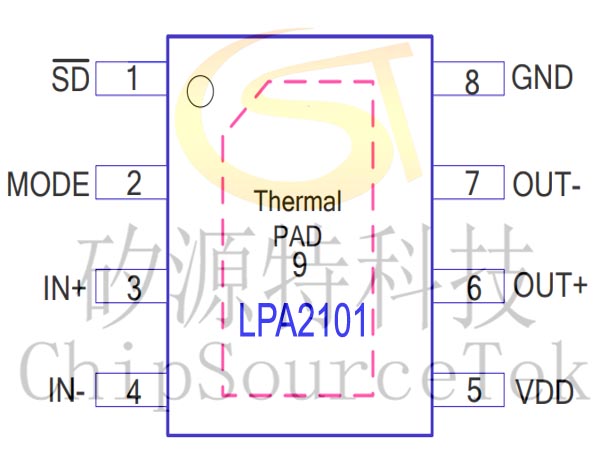

LPA2101引脚分布：

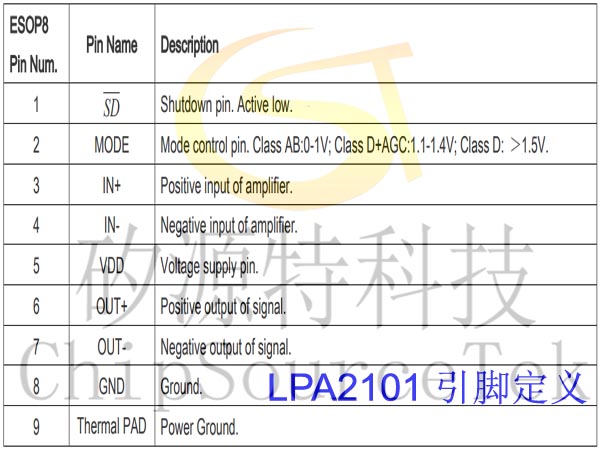

LPA2101引脚定义：

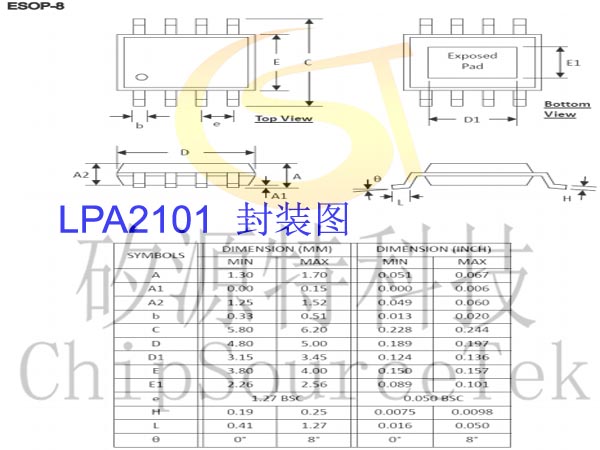

LPA2101封装图：
The LPA2101 is a 30W, class F mono audio amplifier integrated Class AB/D optional mode and AGC function. It is capable of delivering 29watts of continuous average power to a 4Ω BTL load with less than 10% distortion (THD) from a 15V DC power supply. It offers low THD+N, allowing it to achieve high-quality Power Supply sound reproduction.
The LPA2101 device is fully protected against faults with short-circuit protection and thermal protection. Faults are reported back to the processor to prevent devices form being damaged during overload conditions
LPA2101特性：
Wide voltage range: 4.3V~15.5V 550KHz fixed frequency switching for amplifier
29W Output at 10% THD with a 4Ω Load and 15V VDD for amplifier 19W Output at 10% THD with a 4Ω Load and 12V VDD for amplifier
Integrated Self-Protection Circuits Including, Under-Voltage, Over-Temperature, and Short Circuit
High Efficient Class-D Operation: >86%
Filterless, Low Quiescent Current and Low EMI
Pb-Free Package
LPA2101应用：
Mini-Micro Component, Speaker Bar, Docks
After-Market Automotive
Consumer Audio Applications, CRT TV‘’
Portable Bluetooth Speaker
Cellular and Smart mobile phone
Square Speaker
LPA2101订购信息：
Device | Marking | Shipping | Shipping |
LPA2101 | LPS LPA2101 YWX | ESOP-8 | 4000PCS/REEL |
Y: Y is year code. W: W is week code. X: X is series number. | |||

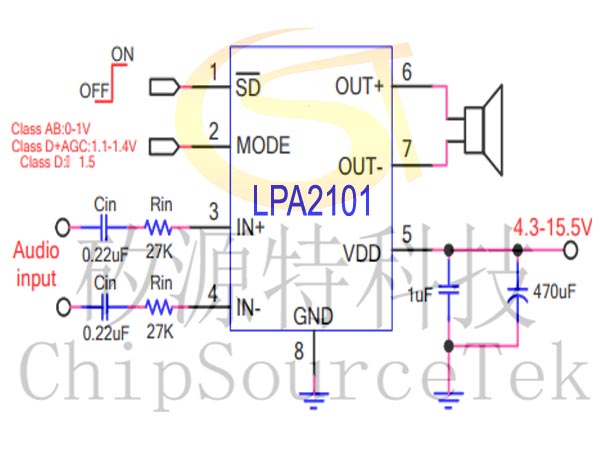

LPA2101典应用电路图：
LPA2101引脚分布：
LPA2101引脚定义：
LPA2101封装图：
