The RY2206 is a high integration solution for lithium-ion/polymer battery protection. RY2206 contains internal power MOSFET, high-accuracy voltage detection circuits and delay circuits. RY2206 has all the protection functions required in the battery application including overcharging, over discharging, overcurrent and load short circuiting protection etc. The accurate overcharging detection voltage ensures safe and full utilization charging. The low standby current drains little current from the cell while in storage. The device is not only targeted for digital cellular phones, but also for any other Li-Ion and Li-Poly battery-powered information appliances requiring long term battery life.

    The RY2206 requires a minimal number of readily available, external components and is available in a space saving SOT23-5 package.

Protection of Charger Reverse Connection

Protection of Battery Cell Reverse Connection

Over-temperature Protection

Overcharge Current Protection

Two-step Overcurrent Detection:

    Over Discharge Current

    Load Short Circuiting

Charger Detection Function

0V Battery Charging Function

RoHS Compliant and Lead (Pb) Free

17.5mΩ Low RDS(ON) Internal Power MOSFET

Delay Times are generated inside

High-accuracy Voltage Detection

Low Current Consumption

    Operation Mode: 0.7μA typ.

    Power-down Mode: 0.5μA typ.

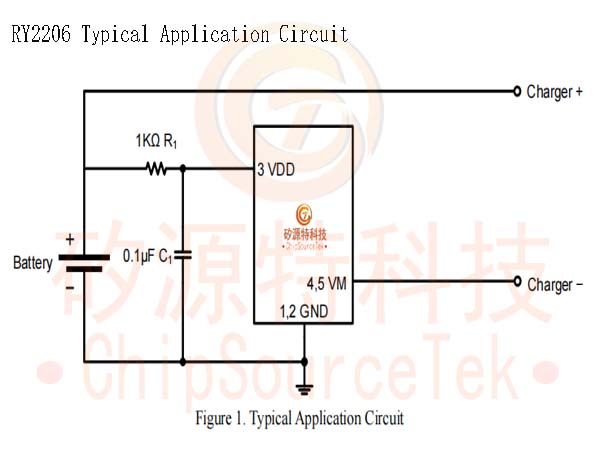

Only One External Capacitor Required

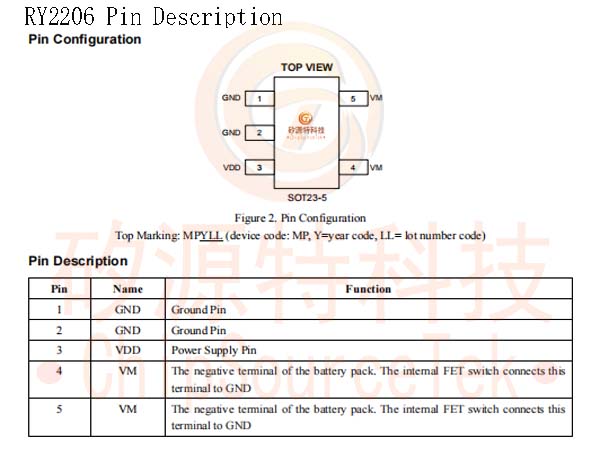

Available in SOT23-5 Package

-40°C to +85°C Temperature Range

One-Cell Li-ion Battery Pack

Power Bank

One-Cell Li-poly Battery Pack

IOT Sensor/Electronic Toys
