LX8545
The LX8545 is very low loss SP4T specifically designed for high performance antenna tuning applications. All RF path performance is enhanced with ultra-low on state resistance and off state capacitance. LX8545 allows the creation of advanced tuningtop
LX8545概述：
The LX8545 is very low loss SP4T specifically designed for high performance antenna tuning applications. All RF path performance is enhanced with ultra-low on state resistance and off state capacitance. LX8545 allows the creation of advanced tuningtopologies to maximize TRP & TIS performance in space constrained applications.
The LX8545 SP4T tuner is provided in a compact QFN 1.1mm x 1.5mm x 0.5mm package. A functional block diagram is shown in Figure 1. The pin configuration and package are shown in Figure 2. Signal pin assignments and functional pin description are provided in Table 1
LX8545特性：
Very Linear Performance
Off Ports, ‘open Type’
Two pin GPIO control Interface for standard SP4T operation
Very Small 1.1mm x 1.5mm
Very low profile, 0.5mm
Ultra-Low On-resistance, 1.0 Ω
LX8545应用：
Antenna Tuning
Band Switching
Impedance Tuning

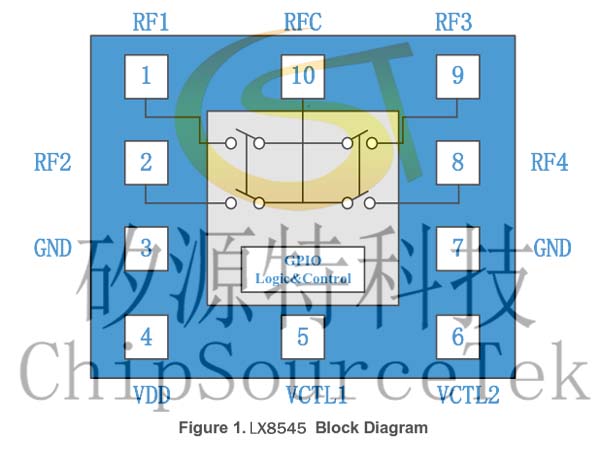

LX8545功能框图：

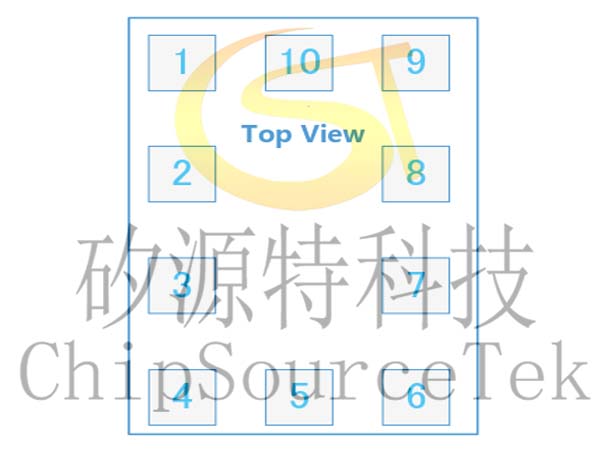

LX8545引脚配置：
LX8545引脚说明：
Pin# | Name | Details |
1 | RF1 | RF port 1. |
2 | RF2 | RF port 2. |
3 | GND | Ground |
4 | VDD | Voltages Supply |
5 | CTL1 | Control Voltage 1. |
6 | CTL2 | Control Voltage 2. |
7 | GND | Ground |
8 | RF4 | RF port 4 |
9 | RF3 | RF port 3 |
10 | RFC | RF Common port. |

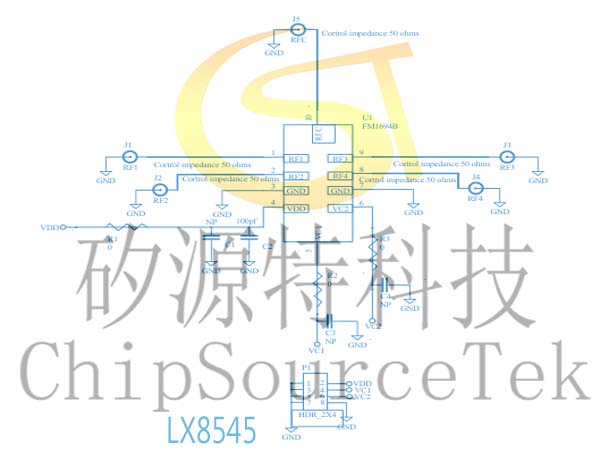

LX8545应用示意图：
