CST4409A SOP8
CST4409A是VDS=-30V,ID=-18A,RDSON=5.8mΩ的P通30V快速切换Mosfet。
The CST4409A is the highest performance trench P-ch MOSFETs with extreme high cell density,which provide excellent RDSON and gate charge for most of the synchronous buck converter application
The CST4409A is the highest performance trench P-ch MOSFETs with extreme high cell density,which provide excellent RDSON and gate charge for most of the synchronous buck converter application
CST4409A Description/概述：
CST4409A是VDS=-30V,ID=-18A,RDSON=5.8mΩ的P通30V快速切换Mosfet。
The CST4409A is the highest performance trench P-ch MOSFETs with extreme high cell density,which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .
The CST4409A meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST4409A Features/特性：
100% EAS Guaranteed
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST4409A Product Summary/产品概览：
BVDSS | RDSON | ID |
-30V | 5.8mΩ | -18A |

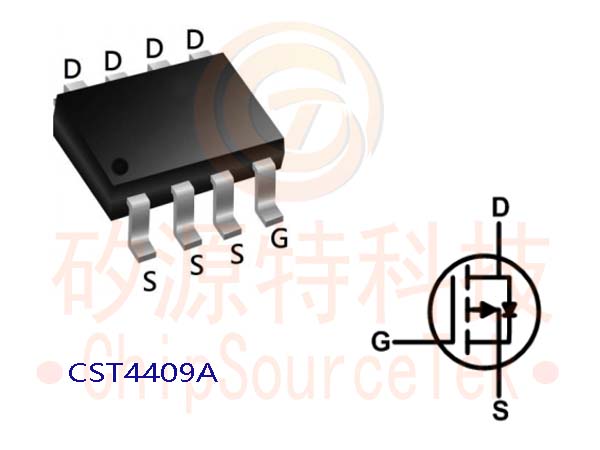

CST4409A Pin Configuration/引脚配置：

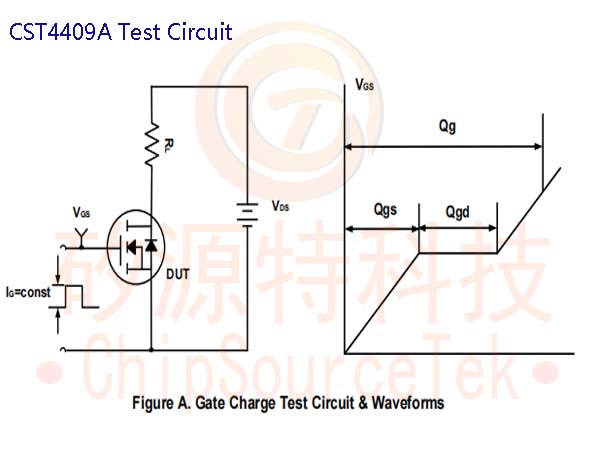

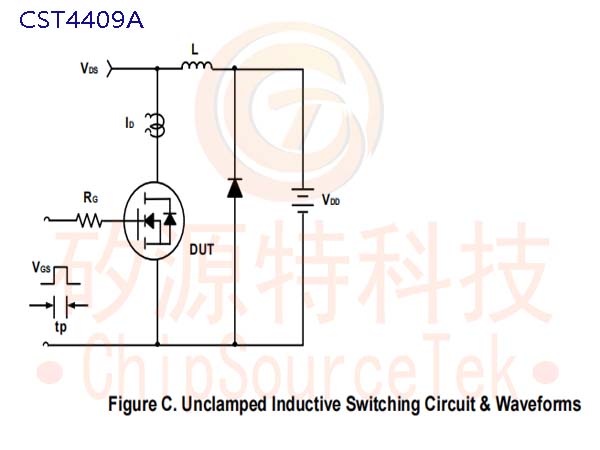

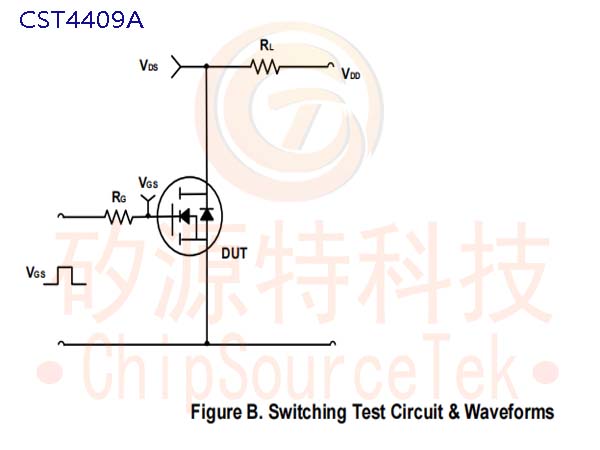

CST4409A Test Circuit/测试电路:
