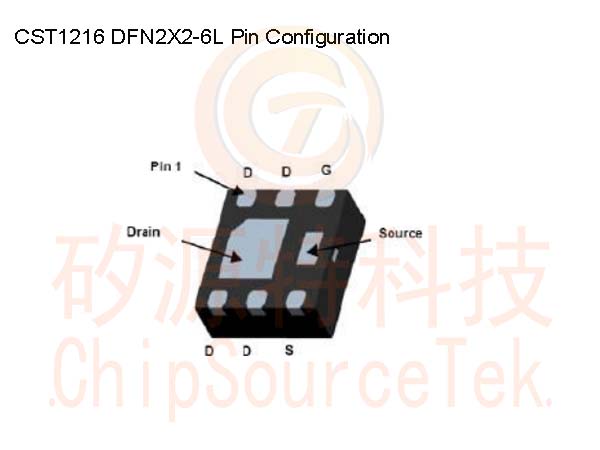

CST1216 DFN2X2-6L
CST1216是BVDSS=-15V,RDSON=11mΩ,ID=-16A的P沟道快速切换mosfet。提供DFN2X2-6L封装。
The CST1216 is the high cell density trenched P-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST1216
The CST1216 is the high cell density trenched P-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST1216
CST1216 Description/描述:
CST1216是BVDSS=-15V,RDSON=11mΩ,ID=-16A的P沟道快速切换mosfet。提供DFN2X2-6L封装。
The CST1216 is the high cell density trenched P-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST1216 meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST1216 Features/特性:
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST1216 Product Summary/产品目录:
BVDSS | RDSON | ID |
-15V | 11mΩ | -16A |

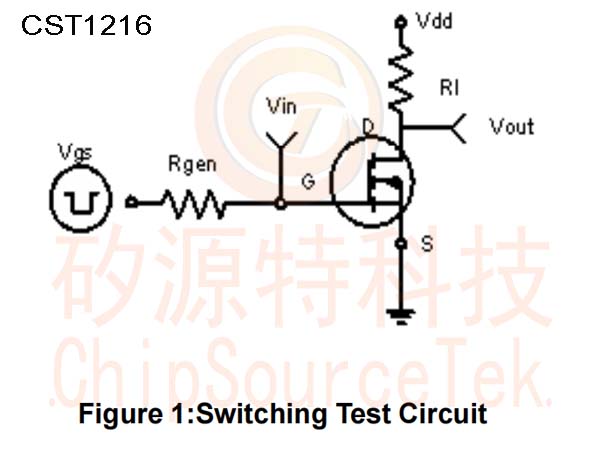

CST1216 Typical Electrical/典型电气：
