AP15P06S SOP8L

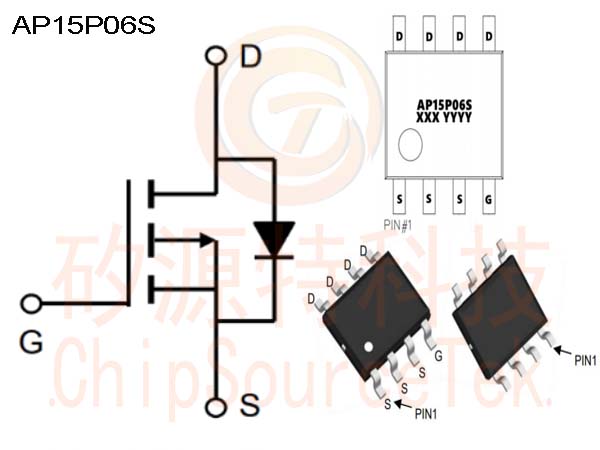

AP15P06S是VDS=-60V,ID=-15A，RDS(ON)<28mΩ@VGS=-10V(Type：20mΩ)的P通道增强模式Mosfets。提供SOP8L封装。
The AP15P06S uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.5V. This device is suitab
The AP15P06S uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.5V. This device is suitab
AP15P06S Description/描述：
AP15P06S是VDS=-60V,ID=-15A，RDS(ON)<28mΩ@VGS=-10V(Type：20mΩ)的P通道增强模式Mosfets。提供SOP8L封装。
The AP15P06S uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application.
AP15P06S Features/特点：
VDS=-60V,ID=-15A
RDS(ON)<28mΩ@VGS=-10V(Type：20mΩ)
AP15P06S Application/应用：
BMS
Low voltage switch
Electric tool
AP15P06S Ordering Information/订购信息：
Product ID | Pack | Marking | Qty(PCS) |
AP15P06S | SOP-8L | AP15P06S XXX YYYY | 3000 |
