TX9416
The TX9416 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to achieve a 2A continuous output current over a wide input supply range, with excellent load and line regulation.
The TX9416 requires a minimal number of readily available, external components and is available in a space saving SOT23-6 package.
The TX9416 requires a minimal number of readily available, external components and is available in a space saving SOT23-6 package.
TX9416 General Description:
The TX9416 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to achieve a 2A continuous output current over a wide input supply range, with excellent load and line regulation.
The TX9416 requires a minimal number of readily available, external components and is available in a space saving SOT23-6 package.
TX9416 Features:
Wide 3.3V to 16V Operating input Range
2A Continuous Output Current
No Schottky Diode Required
600KHz Frequency Operation
Built-in Over Current Limit
Built-in Over Voltage Protection
Internal Soft start
Output Adjustable from 0.6V
Integrated internal compensation
Short Protection with Hiccup-Mode
Thermal Shutdown
Available in SOT23-6 ,Package
-40℃ to +85℃ Temperature Range
TX9416 Applications:
Digital Set-top Box (STB)
Tablet Personal Computer (Pad)
Flat-Panel Television and Monitor
Digital Video Recorder (DVR)
Portable Media Player (PMP)
General Purposes

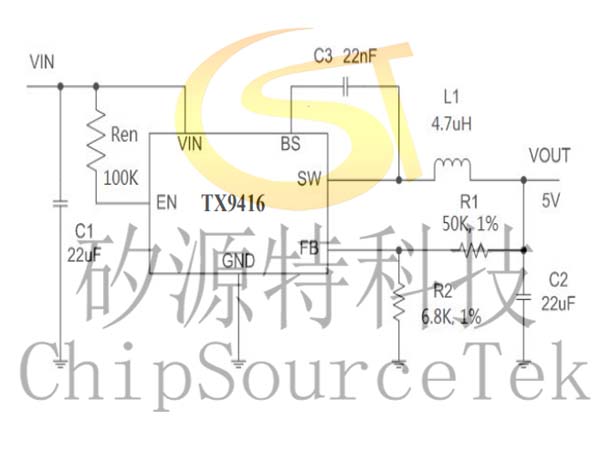

TX9416 Typical Application:

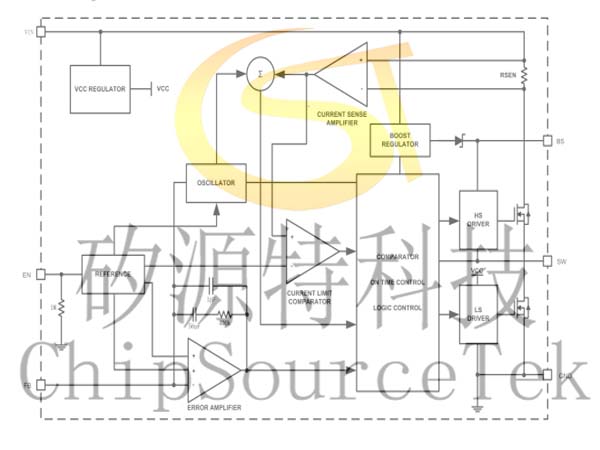

TX9416 System Block Diagram:

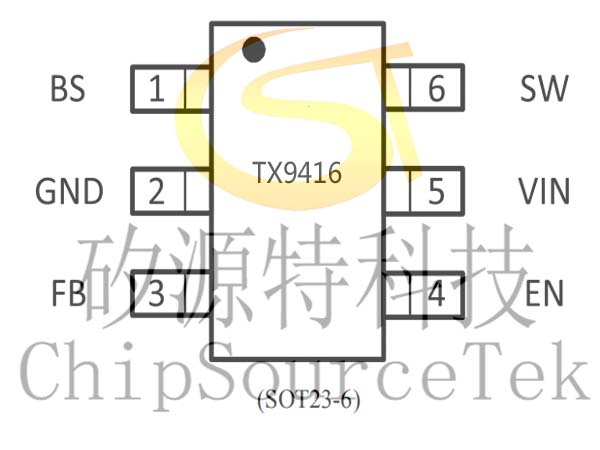

TX9416 Pin Configuration:

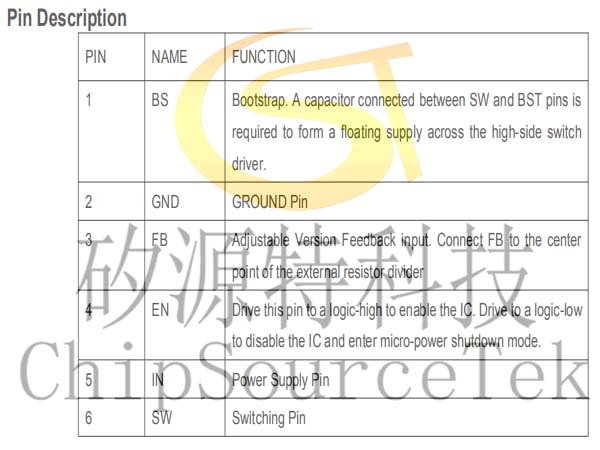

TX9416 Pin Description:
