TX75XXH

The TX75XXH series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 32V. They are available with several fixed output voltages ranging from 2.5V to 5.0V.
CMOS techno

在线咨询

产品详情 资料下载 在线询价

TX75XXH General Description:

CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.

TX75XXH Features:

Low power consumption

Low voltage drop

Low temperature coefficient

High input voltage (up to 32V)

Output voltage accuracy: tolerance ±3%

TO92 and SOT89 package

TX75XXH Applications:

Battery-powered equipment

Communication equipment

Audio/Video equipment

TX75XXH Selection Table:

Part No.	Output Voltage	Package	Marking
TX7525Hxx	2.5V	TO92 SOT89	75XX-H#(for TO92) 75XX-H#(for SOT89)
TX7527Hxx	2.7V
TX7530Hxx	3.0V
TX7533Hxx	3.3V
TX7536Hxx	3.6V
TX7540Hxx	4.0V
TX7544Hxx	4.4V
TX7550Hxx	5.0V

Note:”XX” stands for output voltages.

TO92 & SOT89 packages will add a “#” mark at the end of the marking.

TX75XXH Order Information:

TX75①②③④⑤

Designator	Symbol	Description
①②	Integer	Output Voltage(2.1~6.0V)
③	H	Standard
④	T	Package:TO-92
④	P	Package:SOT89
⑤	R	RoHS/Pb Free
⑤	G	Halogen Free

TX75XXH Block Diagram:

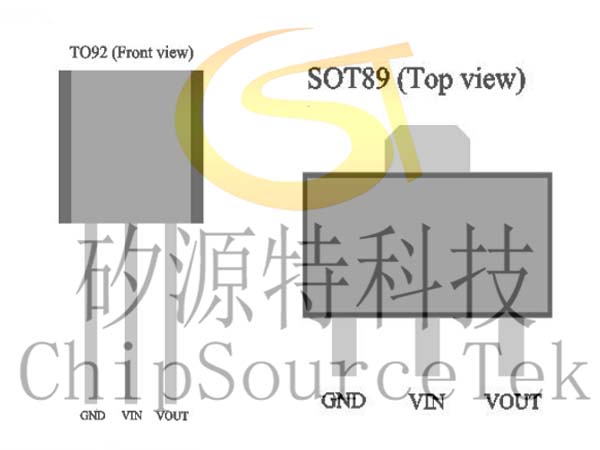

TX75XXH Pin Assignment:

TX75XXH Application Circuits:

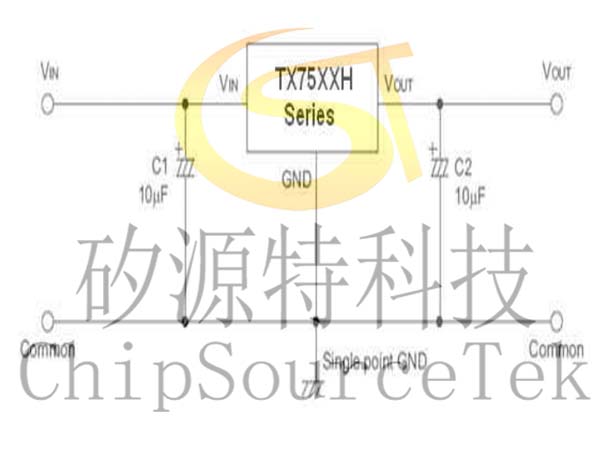

Basic Circuits

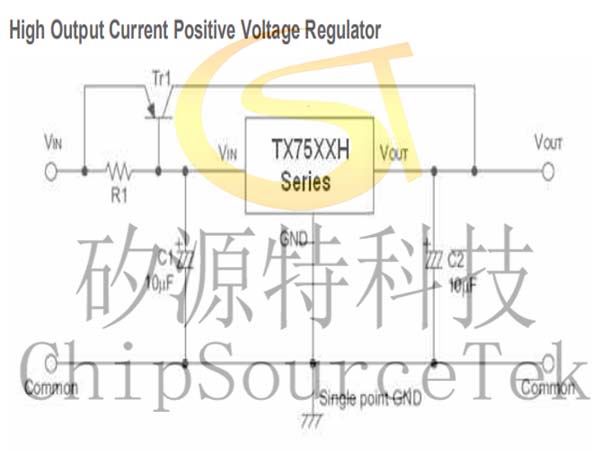

High Output Current Positive Voltage Regulator

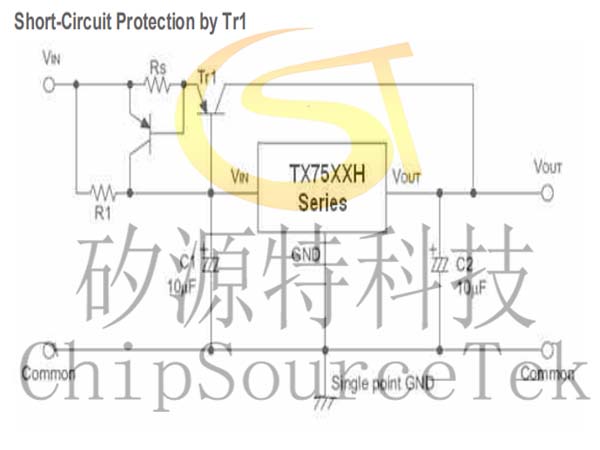

Short-Circuit Protection by Tr1

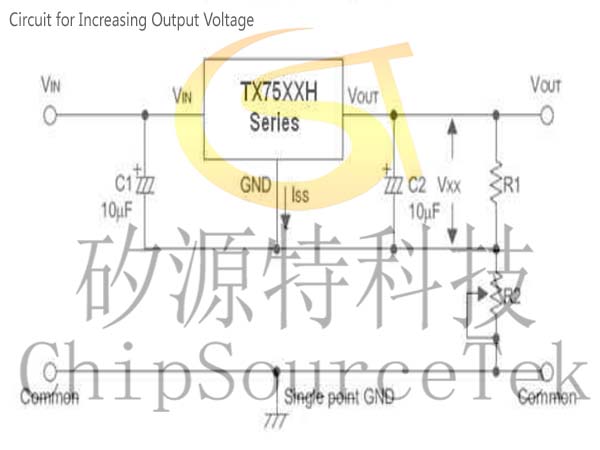

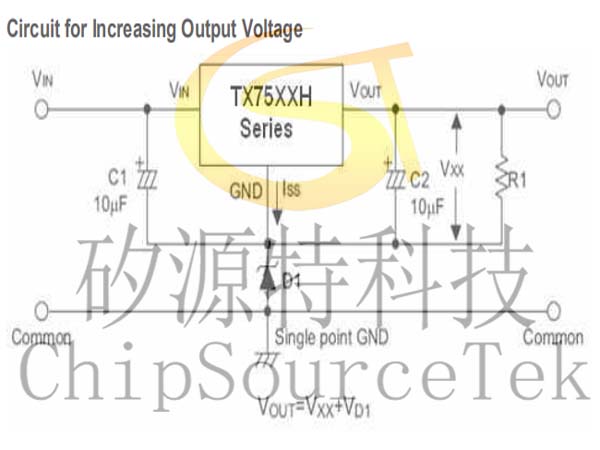

Circuit for Increasing Output Voltage

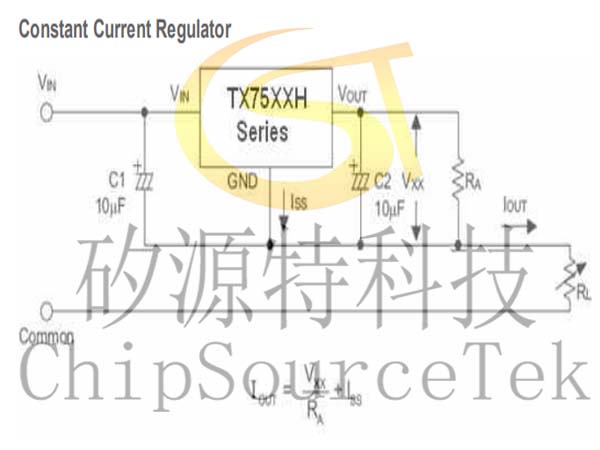

Constant Current Regulator

Dual Supply
