The TX78XXM series is a group of positive voltage output, three-pin regulators, it provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies.

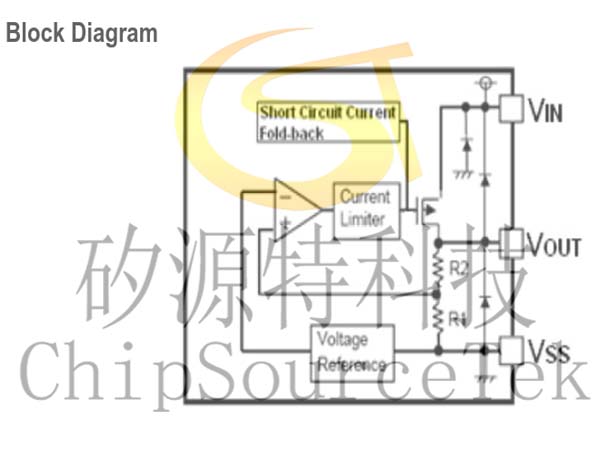

    The TX78XXM consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Load Transient response has improved in comparison to the existing series. SOT89, SOT23-3 and SOT23-5 packages are available.

Low voltage drop: 0.23V@100mA

High input voltage: 15V

Low temperature coefficient

Large Output Current: >0.5A

Low Quiescent Current: 2.0uA

Output voltage accuracy: tolerance ±2%

Built-in current limiter

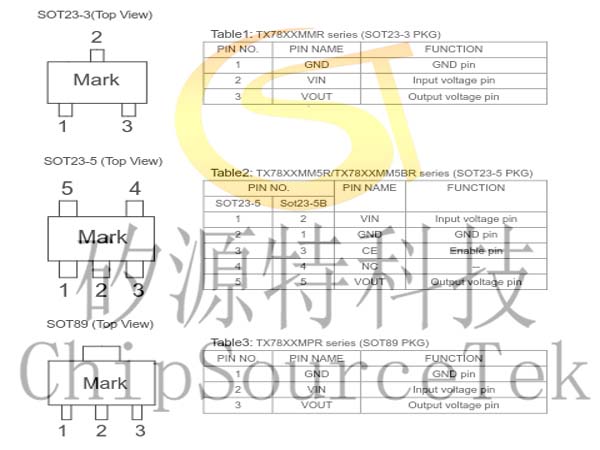

SOT89,SOT23-3 and SOT23-5 packages

Battery-powered equipment

Hand-Hold Equipment

GRS Receivers

Wireless LAN

Note1: Cin=Cout=10uF. (10uF Electrolytic capacitor is recommended).

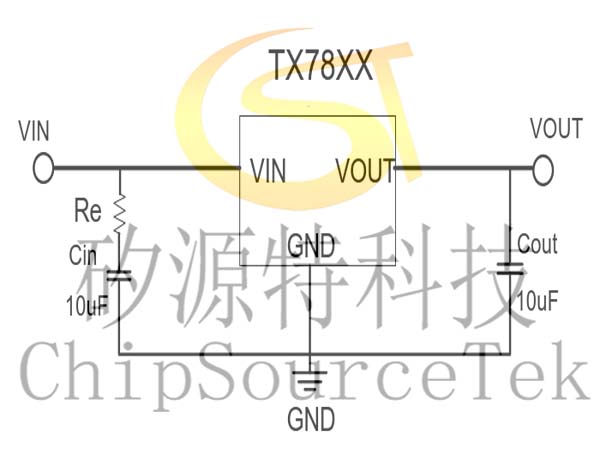

Note2: If the input and output capacitors are ceramic, add a resistor at the input, as follows.

Note: Re=(1.2~1.8)Ω.

Note1:Input capacitor  CIN=10uF.

Note2:Ouput capacitor COUT=10uF/6.8uF(1uF Tantalum capacitor or 6.8uF ceramic capacitor is

recommended).

Note3:The CE port is recommended to connect the current limiting resistor Re. The recommended

resistance is 10K~47K. When the input voltage is larger than or equal to 12V, it is recommended to add a 0.01uF capacitor Ce.
