CST8205A Description:
    CST8205A是VDS=20V, ID=6A,RDS(ON)(Typ.)=27mΩ@VGS=2.5V,RDS(ON)(Typ.)=22mΩ@VGS=3.8V,RDS(ON)(Typ.)=21mΩ@VGS=4.5V的双N沟道Mosfet。提供TSSOP-8封装。
    The CST8205A uses advanced trench technology to provide excellent RDS(ON) and low gate charge.It can be used in a wide variety of applications.

CST8205A General Features:
VDS=20V, ID=6A
RDS(ON)(Typ.)=27mΩ@VGS=2.5V
RDS(ON)(Typ.)=22mΩ@VGS=3.8V
RDS(ON)(Typ.)=21mΩ@VGS=4.5V
High Power and current handing cpability
Lead free product is acquired
Surface Mount Package

CST8205A Application:
Battery protection
Load switch

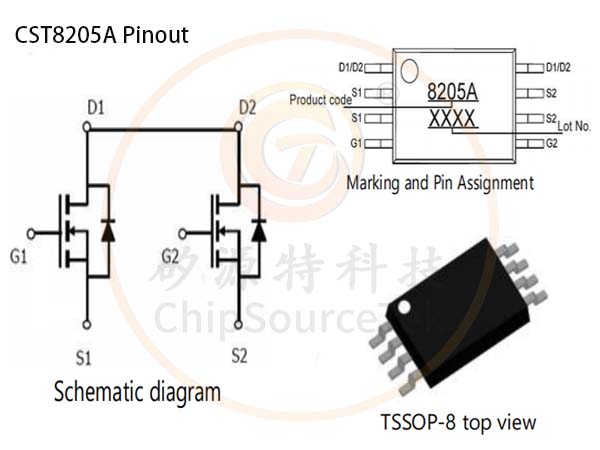

CST8205A Pinout:

CST8205A Ordering Information:
