CST60N03D PDFN3333-8L
CST60N03D是BVDSS=30V,RDSON=4.7mΩ,ID=60A的N沟道快速切换Mosfets。提供PDFN3333-8L封装。
The CST60N03D is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CS
The CST60N03D is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CS
CST60N03D Description/描述:
CST60N03D是BVDSS=30V,RDSON=4.7mΩ,ID=60A的N沟道快速切换Mosfets。提供PDFN3333-8L封装。
The CST60N03D is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST60N03D meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST60N03D Features/特性:
100% EAS Guaranteed
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST60N03D Product Summary/产品概览：
BVDSS | RDSON | ID |
30V | 4.7mΩ | 60A |

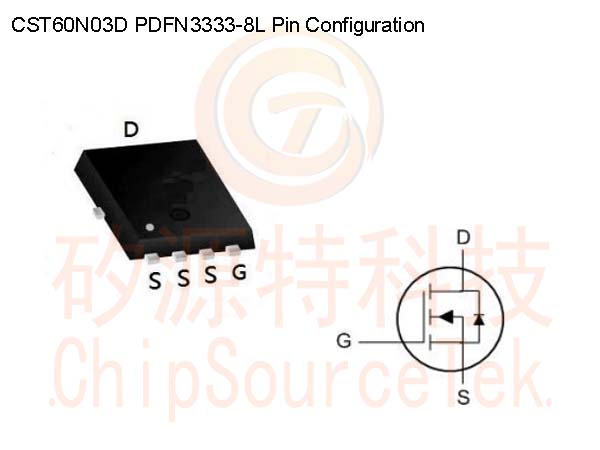

CST60N03D PDFN3333-8L Pin Configuration/引脚配置:

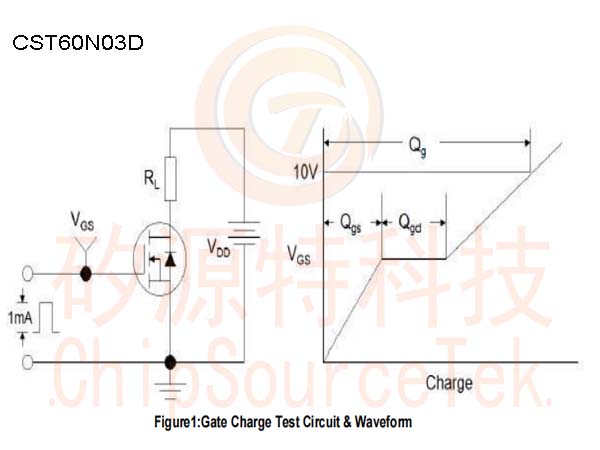

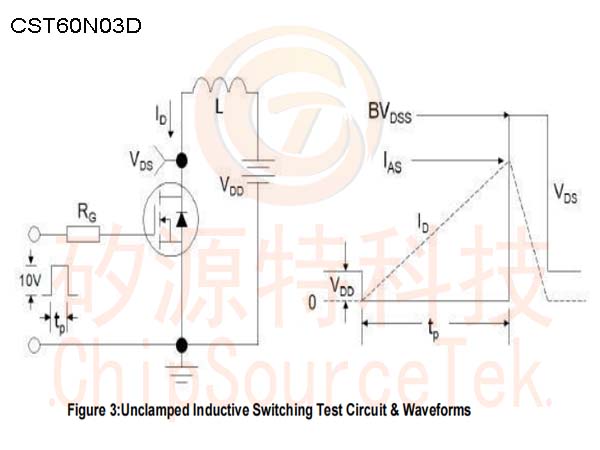

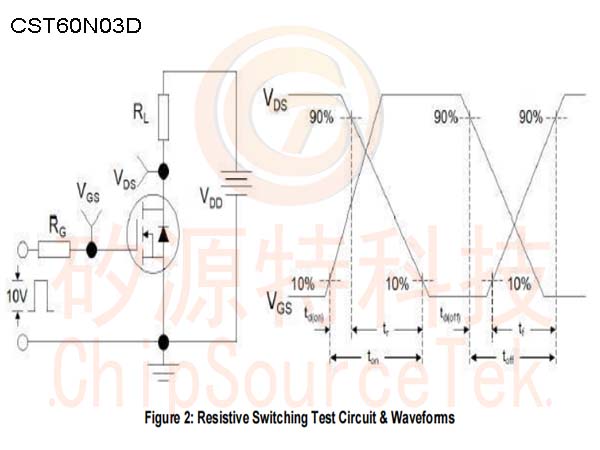

CST60N03D Test Circuit/测试电路：
