APT320
APT320语音芯片 最大声音文件700，最大触发组63，电源触发组1，最大的一步700，信号步静音长度0.64（6K采样率）
APT320工作电压2.4V-3.6V, 总声音持续时间 20” ，
APT320适用于玩具、小家电、智能家居。
APT320工作电压2.4V-3.6V, 总声音持续时间 20” ，
APT320适用于玩具、小家电、智能家居。
APT320 Description：
APT320 is a 20 Sec Easy Use Speech IC .It Support PWM or DAC voice output with high quality speech , There are 20 second Voice Length under 6 KHz sampling and 4 bit hardware compression.
Its internal built-in a oscillator for system clock without an external resistor. Maximum 63 voice groups. One Group contain several steps(voice section ); Maximum 700 steps for all the Groups.
Each Step can be define Trigger Mode, Output Status, Voice Section, Mute length, I/O Type & Simple Programming Function. User can select 8bit / 5bit / 4bit data compression.
Support three mode trigger IC (Stand Alone, Serial Trigger Mode, CPU Command Mode ). Easy use development system is for function selection and voice combination . PC download the ROM code by the USB Port .
APT320 Functions :
MAX voice file : 700
MAX Trigger Groups : 63
Power On Trigger Group :1
MAX Step : 700
Signal step mute length : 0.64 s ( 6k sample rate )
Operating Voltage range: 2.4V ~ 3.6V
Total Voice Duration : 20” (120K Samples)
I/O pin : 4
Voice output : PWM or DAC
Sequential Key : TG1 -> 32 Groups. TG2 -> 29 Groups. TG3,TG4-> 1 Group
Debounce time : 50 us or 10 ms
On/Off function : only for all TG PIN
Sequential Key for Volume control function.
Step can change Trigger I/O Type, Trigger Mode & Output Status.
Hardware Trigger Group Repeat function.
APT320 Simple Programming Function :
(a) Write data to working register.
(b) Working Register Increasing.
(c) Step Jump by Working Register / Volume Status.
APT320 Three Mode Trigger IC :
- Key Stand-alone Trigger Mode :
A. Edge/Level
B. Hold/Unhold
C. Retrigger/Irretrigger
- Serial Trigger Mode :
Combinations of TG1 and TG2 to trigger maximum 63 Voice Group.
- CPU Command Mode :
User command through TG1,TG2,TG3 & TG4 with serial CPU Interface to control the Multi-Playback function.

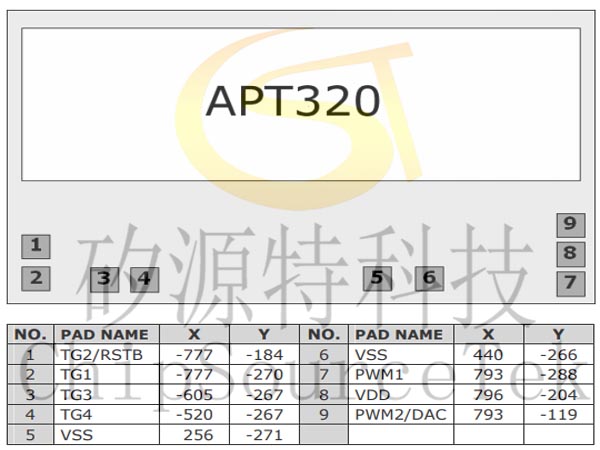

APT320 Pad Location:

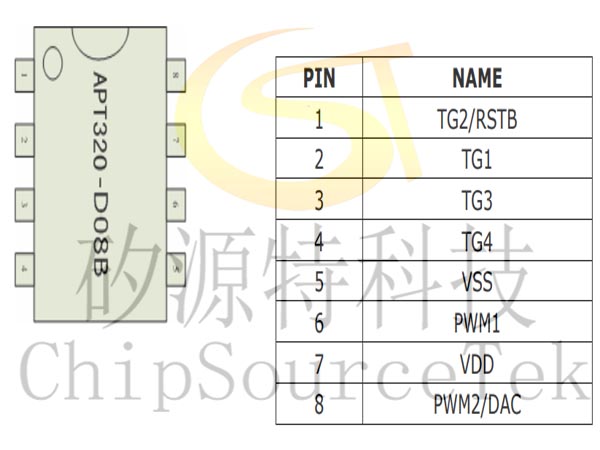

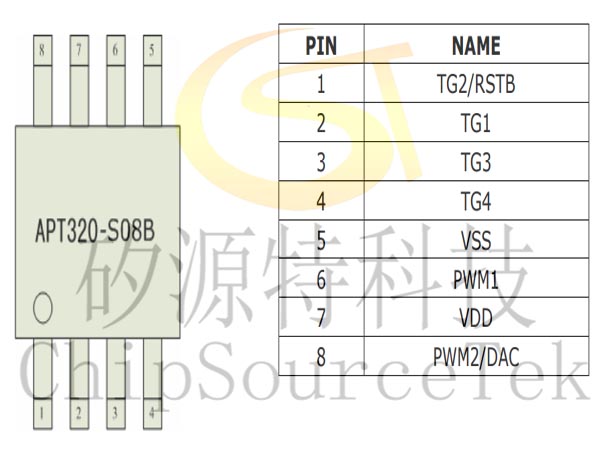

APT320 PIN Descriptions:
APT320 TG2 Low Reset:

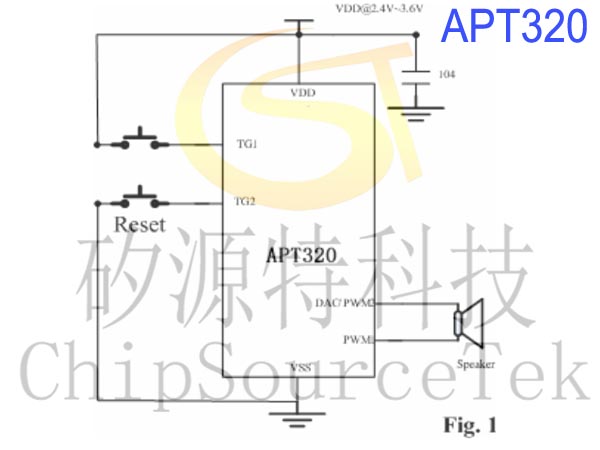

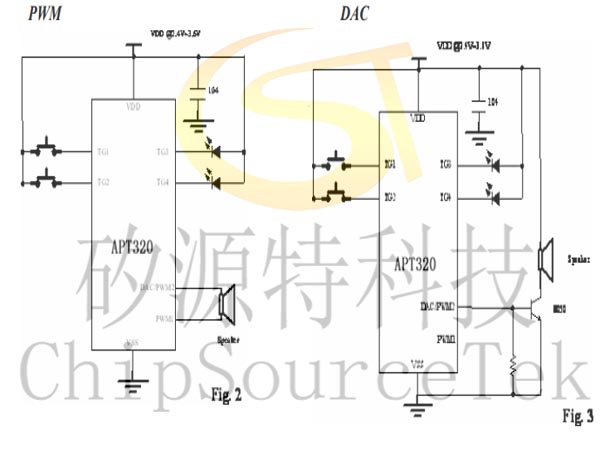

APT305 Application Circuit:
APT305 3V Stand-alone Mode:
APT305 3V Serial Mode:

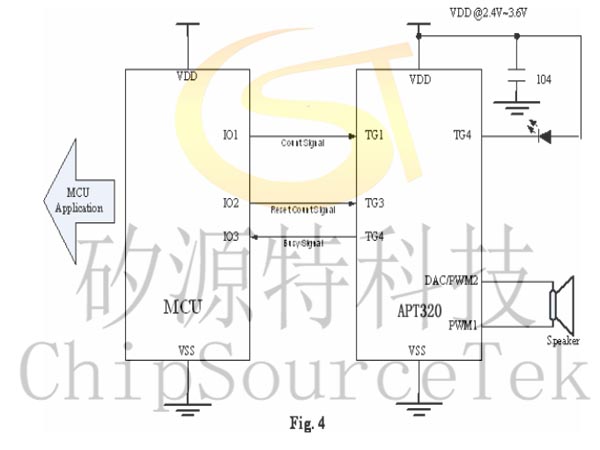

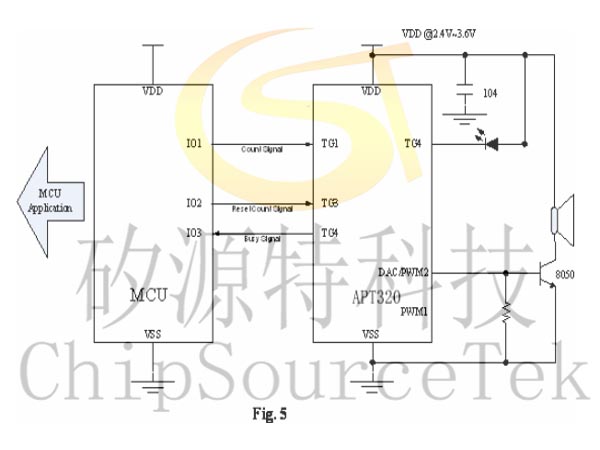

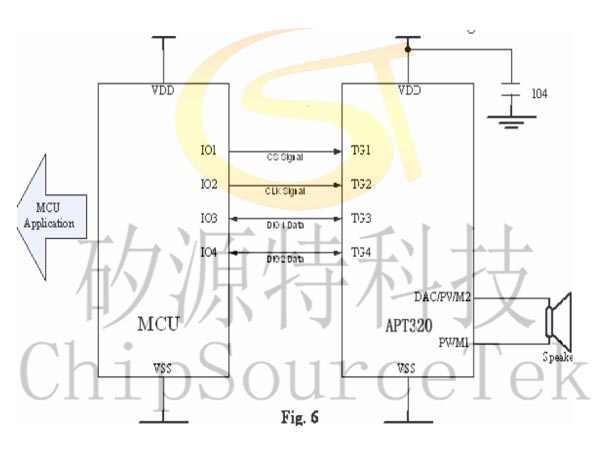

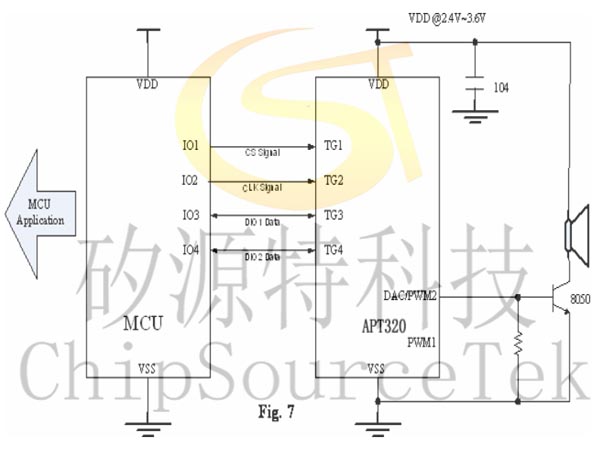

APT305 3V CPU Mode:
.jpg)
.jpg)
APT320 Package Information：
APT320-S08B :
APT320-D08B：
APT320 is a 20 Sec Easy Use Speech IC .It Support PWM or DAC voice output with high quality speech , There are 20 second Voice Length under 6 KHz sampling and 4 bit hardware compression.
Its internal built-in a oscillator for system clock without an external resistor. Maximum 63 voice groups. One Group contain several steps(voice section ); Maximum 700 steps for all the Groups.
Each Step can be define Trigger Mode, Output Status, Voice Section, Mute length, I/O Type & Simple Programming Function. User can select 8bit / 5bit / 4bit data compression.
Support three mode trigger IC (Stand Alone, Serial Trigger Mode, CPU Command Mode ). Easy use development system is for function selection and voice combination . PC download the ROM code by the USB Port .
APT320 Functions :
MAX voice file : 700
MAX Trigger Groups : 63
Power On Trigger Group :1
MAX Step : 700
Signal step mute length : 0.64 s ( 6k sample rate )
Operating Voltage range: 2.4V ~ 3.6V
Total Voice Duration : 20” (120K Samples)
I/O pin : 4
Voice output : PWM or DAC
Sequential Key : TG1 -> 32 Groups. TG2 -> 29 Groups. TG3,TG4-> 1 Group
Debounce time : 50 us or 10 ms
On/Off function : only for all TG PIN
Sequential Key for Volume control function.
Step can change Trigger I/O Type, Trigger Mode & Output Status.
Hardware Trigger Group Repeat function.
APT320 Simple Programming Function :
(a) Write data to working register.
(b) Working Register Increasing.
(c) Step Jump by Working Register / Volume Status.
APT320 Three Mode Trigger IC :
- Key Stand-alone Trigger Mode :
A. Edge/Level
B. Hold/Unhold
C. Retrigger/Irretrigger
- Serial Trigger Mode :
Combinations of TG1 and TG2 to trigger maximum 63 Voice Group.
- CPU Command Mode :
User command through TG1,TG2,TG3 & TG4 with serial CPU Interface to control the Multi-Playback function.
APT320 Pad Location:
APT320 PIN Descriptions:
APT320 TG2 Low Reset:
APT305 Application Circuit:
APT305 3V Stand-alone Mode:
APT305 3V Serial Mode:
APT305 3V CPU Mode:
APT320 Package Information：
APT320-S08B :
APT320-D08B：
