TX75XXM
The TX75XXM series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 15V. They are available with several fixed output voltages ranging from 2.1V to 6.0V. CMOS technolo
TX75XXM General Description:
The TX75XXM series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 15V. They are available with several fixed output voltages ranging from 2.1V to 6.0V. CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.
TX75XXM Features
Low power consumption
Low voltage drop
Low temperature coefficient
High input voltage (up to 15V)
Output voltage accuracy: tolerance ±2%
TO92, SOT89, SOT23-3 and SOT23 package
TX75XXM Applications:
Battery-powered equipment
Communication equipment
Audio/Video equipment
TX75XXM Selection Table:
Part No. | Output Voltage | Package | Marking |
TX7521Mxx | 2.1V | TO92 SOT89 SOT23-3 SOT23 | 75XXA-1(for TO92) 75XX-1(for SOT89) HTXX(for SOT23-3) HTXX(for SOT23) |
TX7522Mxx | 2.2V | ||
TX7523Mxx | 2.3V | ||
TX7525Mxx | 2.5V | ||
TX7527Mxx | 2.7V | ||
TX7530Mxx | 3.0V | ||
TX7533Mxx | 3.3V | ||
TX7536Mxx | 3.6V | ||
TX7540Mxx | 4.0V | ||
TX7544Mxx | 4.4V | ||
TX7545Mxx | 4.5V | ||
TX7550Mxx | 5.0V | ||
TX7560Mxx | 6.0V |
Note:”XX” stands for output voltages.
TX75XXM Order Information:
TX75①②③④⑤
Designator | Symbol | Description |
①② | Integer | Output Voltage(2.1~6.0V) |
③ | M | Standard |
④ | T | Package:TO-92 |
P | Package:SOT89 | |
M | Package:SOT23-3 | |
N | Package:SOT23 | |
⑤ | R | RoHS/Pb Free |

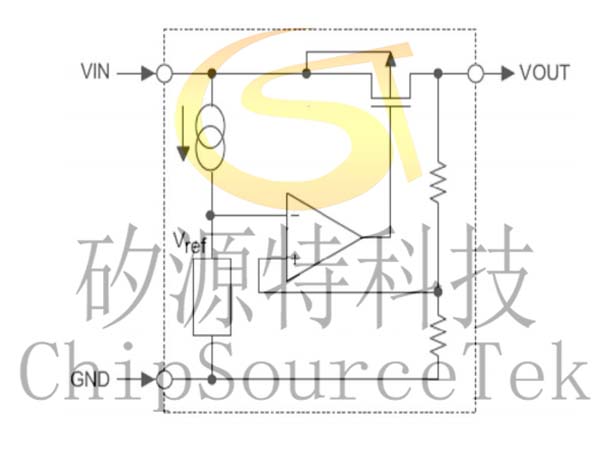

TX75XXM Block Diagram:
TX75XXM Pin Assignment:
TX75XXM Application Circuits:

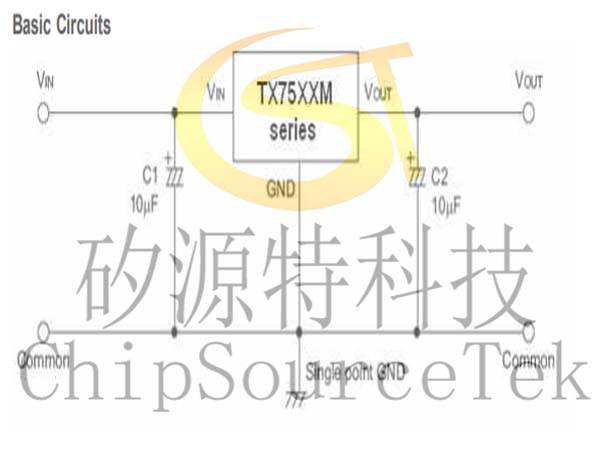

Basic Circuits

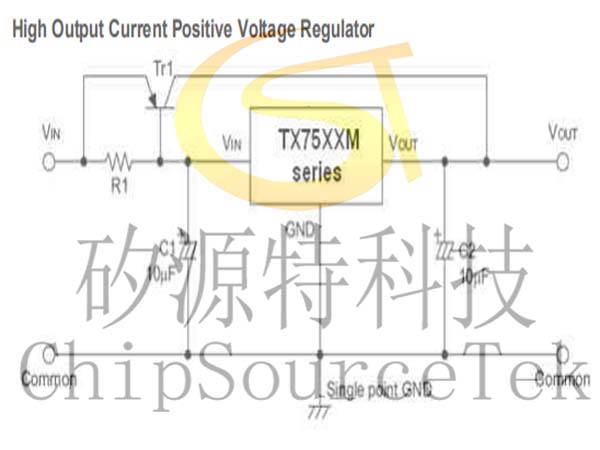

High Output Current Positive Voltage Regulator

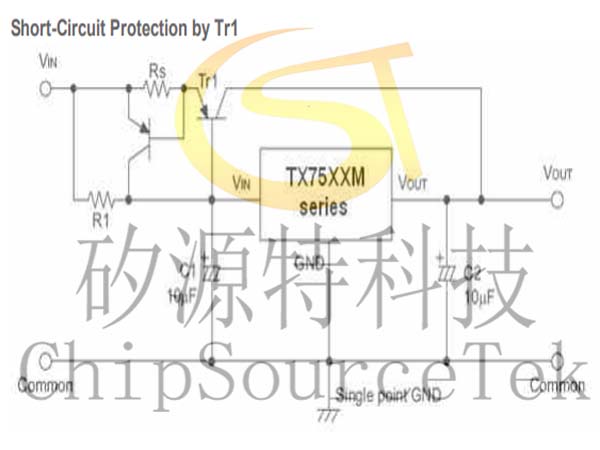

Short-Circuit Protection by Tr1

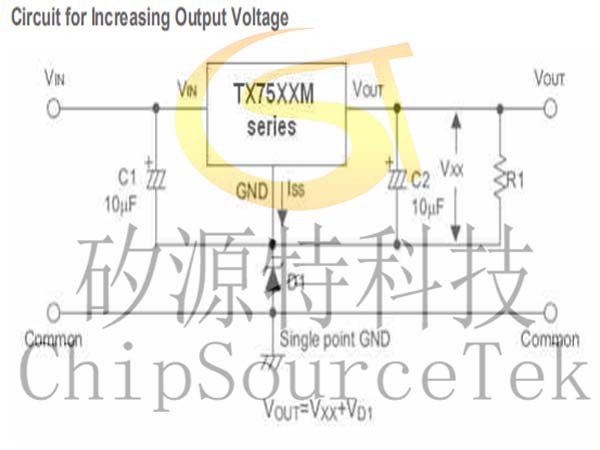

Circuit for Increasing Output Voltage

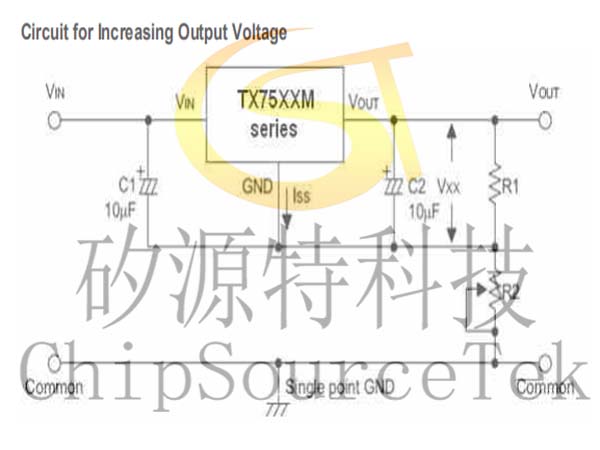

Circuit for Increasing Output Voltage

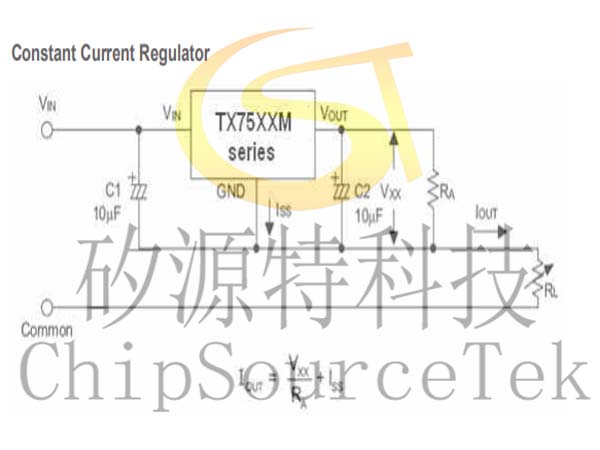

Constant Current Regulator

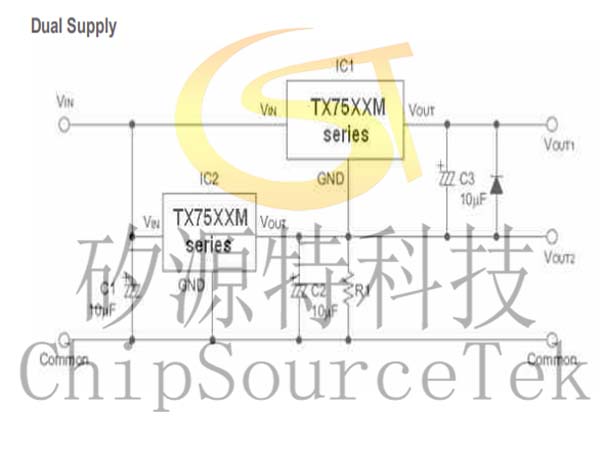

Dual Supply
