双N-MOS

MX8205 SOT23-6

MX8205是VDS=20V,ID=6A,RDS(ON)(Typ.)=20mΩ@VGS=4.5V的N沟通MOSFET,MX8205丝印:8205,MX8205提供SOT23-6封装
    MX8205 DESCRIPTION:
        MX8205是VDS=20V,ID=6A,RDS(ON)(Typ.)=20mΩ@VGS=4.5V的N沟通MOSFET,MX8205丝印:8205,MX8205提供SOT23-6封装。
        The MX8205 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of applications.

    MX8205 GENERAL FEATURES:
    VDS=20V, ID=6A
        RDS(ON)(Typ.)=20mΩ @ VGS=4.5V
        RDS(ON)(Typ.)=21mΩ @ VGS=3.8V
        RDS(ON)(Typ.)=26mΩ @ VGS=2.5V
    High Power and current handing cpability
    Lead free product is acquired
    Surface Mount Package

    MX8205 APPLICATION :
    Battery protection
    Load switch

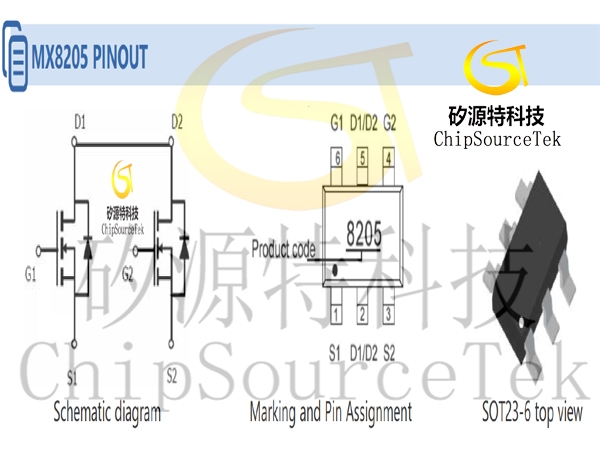

    MX8205 PINOUT:
    MX8205 ORDERING INFORMATION:
    Part Number StorageTemperature Package Devices Per Reel
    MX8205 -55°C to 150°C SOT23-6 3000

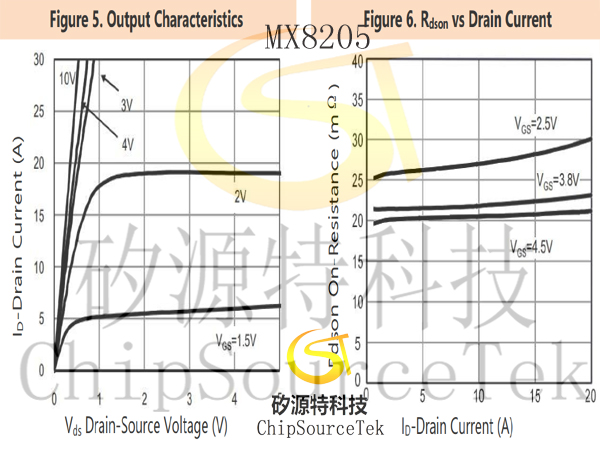

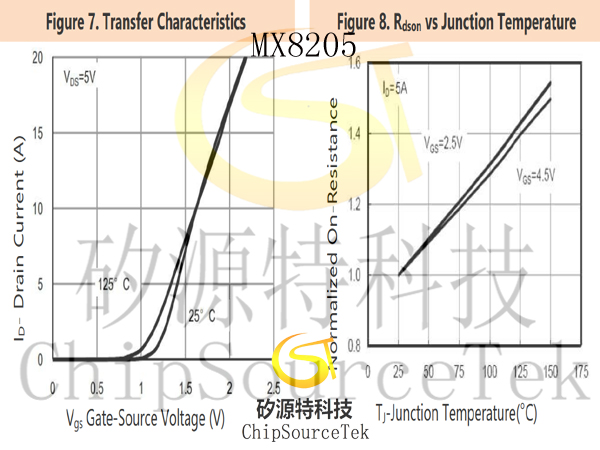

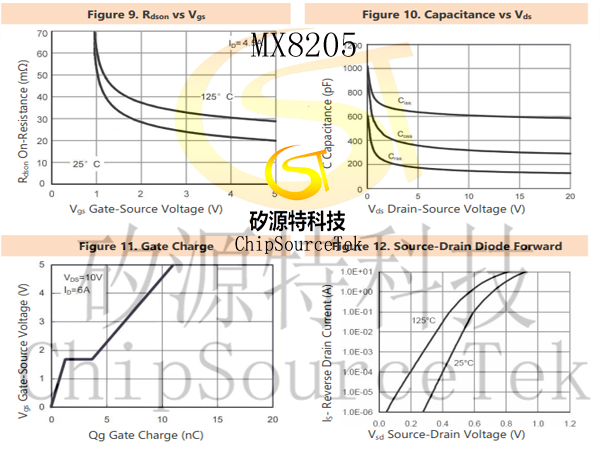

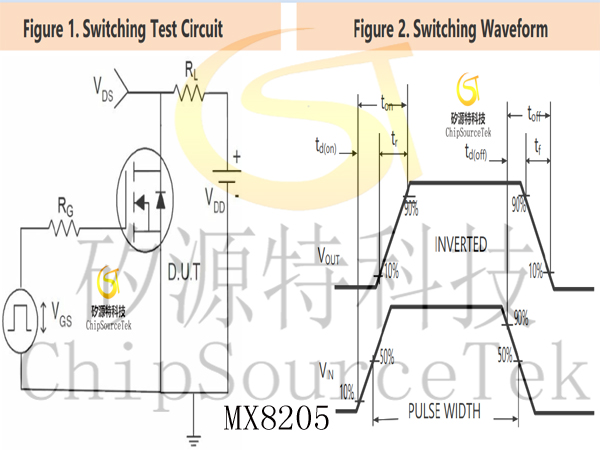

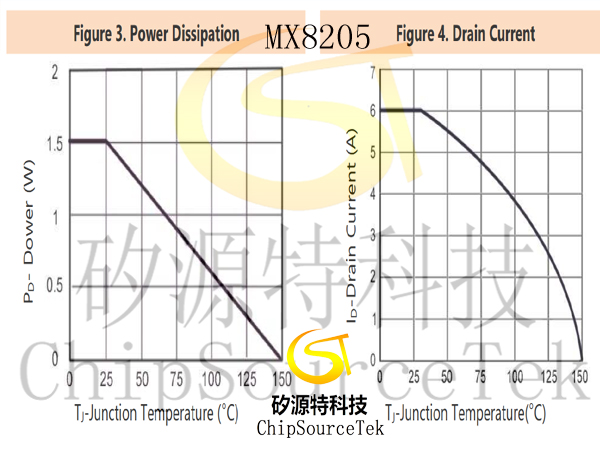

    MX8205 TYPICAL ELECTRICAL AND THERMAL CHARACTERISTICS:

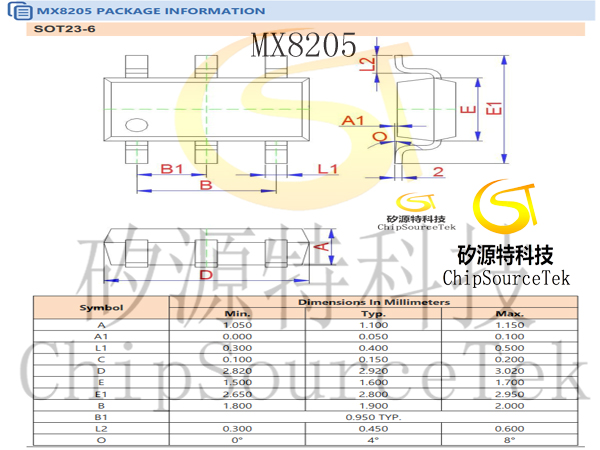

    MX8205 PACKAGE INFORMATION :
    SOT23-6:
