D2822ML Overview：
D2822ML is used as an audio power amplifier for portable recorders and radios.
Adopting DIP8 and SOP8 packaging forms.
D2822ML Feature：
Can still operate normally when the power supply voltage drops to 1.8V
Small crossover distortion
Low static current
Can be used for bridge or stereo power amplifier applications
Less peripheral components
High channel separation
No impact noise during startup and shutdown
Soft-limiting
D2822MLPackaging：
|
Model
|
Packaging form
|
Printing method
|
Packaging method
|
|
D2822ML
|
DIP8
|
CHMC
D2822ML
SXXXX
|
50 pieces/tube
|
|
D2822ML
|
SOP8
|
CHMC
D2822ML
SXXXX
|
100 pieces/tube
4000 pieces/plate
|

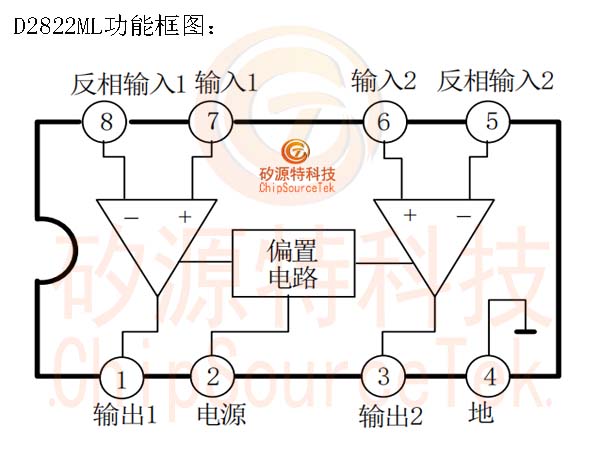

D2822ML Functional Block Diagram：

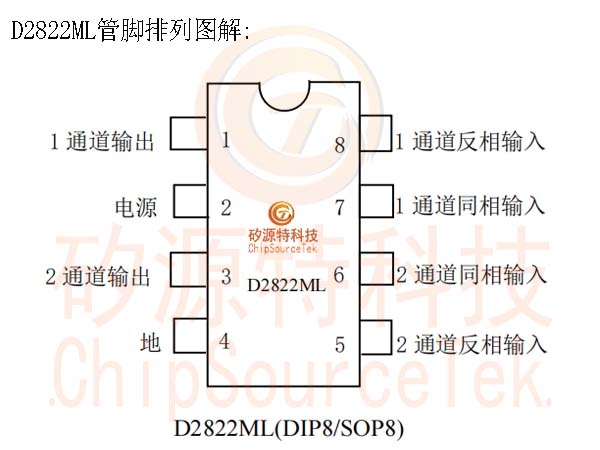

D2822ML Pin arrangement diagram:

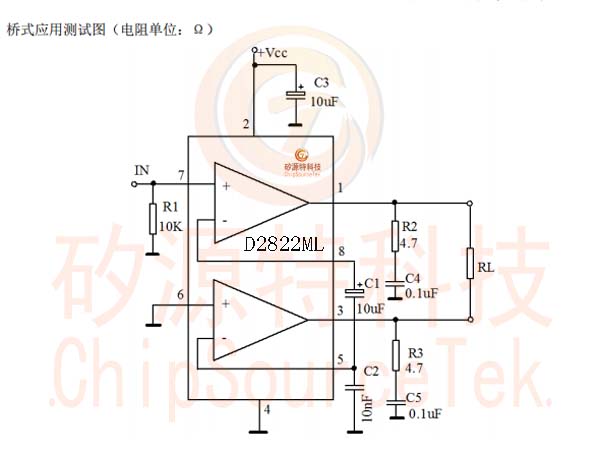

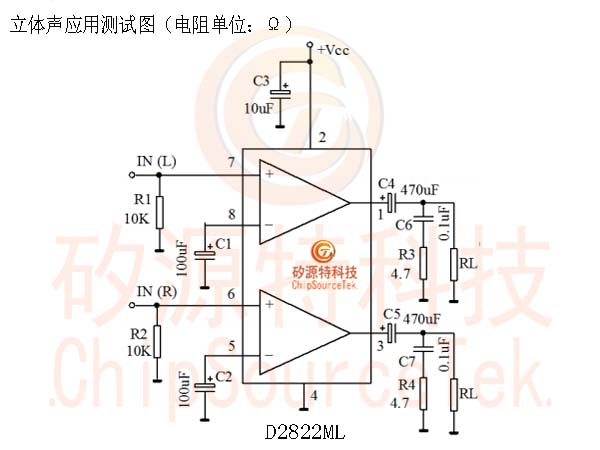

D2822ML Testing schematic diagram:

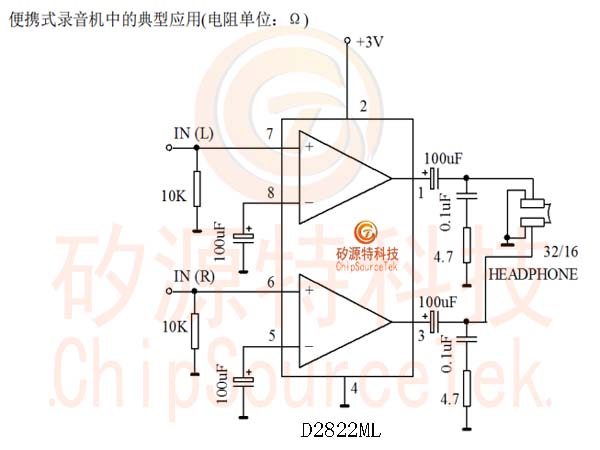

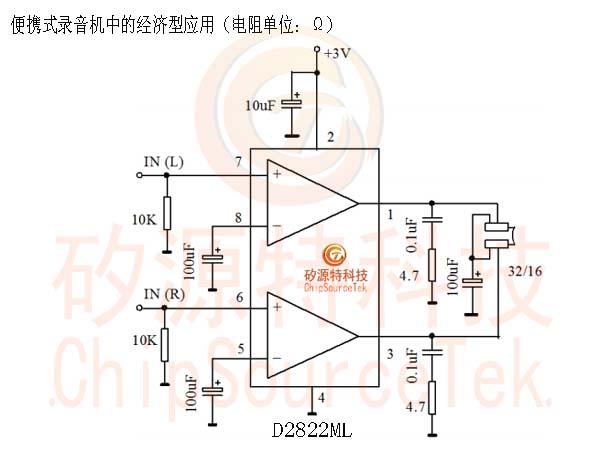

D2822ML Application diagram:
