Motor drive

BDR6170

    The BDR6170 device is a brushed-DC motor driver for printers, appliances, industrial equipment, and other small machines. Two logic inputs control the H bridge driver, which consists of four N-channel MOSFETs that can control motors bi-directionally with up to 3.6-A peak current. The device is fully protected from faults and short circuits, including under voltage (UVLO), overcurrent (OCP), and over temperature (TSD). When the fault condition is removed, the device automatically resumes normal operation.
    Bdr6170 provides hsop8 package
    BDR6170 DESCRIPTION:
        The BDR6170 device is a brushed-DC motor driver for printers, appliances, industrial equipment, and other small machines. Two logic inputs control the H bridge driver, which consists of four N-channel MOSFETs that can control motors bi-directionally with up to 3.6-A peak current. The inputs can be pulse-width modulated (PWM) to control motor speed, using a choice of current-decay modes. Setting both inputs low enters a low-power sleep mode.
        The device features integrated current regulation, based on the analog input VREF and the voltage on the ISEN pin, which is proportional to motor current through an external sense resistor.
        The ability to limit current to a known level can significantly reduce the system power requirements and bulk capacitance needed to maintain stable voltage,especially for motor startup and stall conditions.
        The device is fully protected from faults and short circuits, including under voltage (UVLO), overcurrent (OCP), and over temperature (TSD). When the fault condition is removed, the device automatically resumes normal operation.
        Bdr6170 provides hsop8 package

    BDR6170 FEATURES:
    H-Bridge Motor Driver
    – Drives One DC Motor, One Winding of a
    Stepper Motor, or Other Loads
    Wide 9-V to 36-V Operating Voltage
    500-mΩ Typical RDS(on) (HS + LS)
    3.6-A Peak Current Drive
    PWM Control Interface
    Integrated Current Regulation
    Low-Power Sleep Mode
    Small Package and Footprint
    – 8-Pin HSOP With ThermalPAD
    Integrated Protection Features
    – VM Under voltage Lockout (UVLO)
    – Across the Load Overcurrent Protection (OCP)
    – Thermal Shutdown (TSD)
    – Automatic Fault Recovery


    BDR6170 APPLICATIONS:
    Printers
    Appliances
    Industrial Equipment
    Other Mechatronic Applications


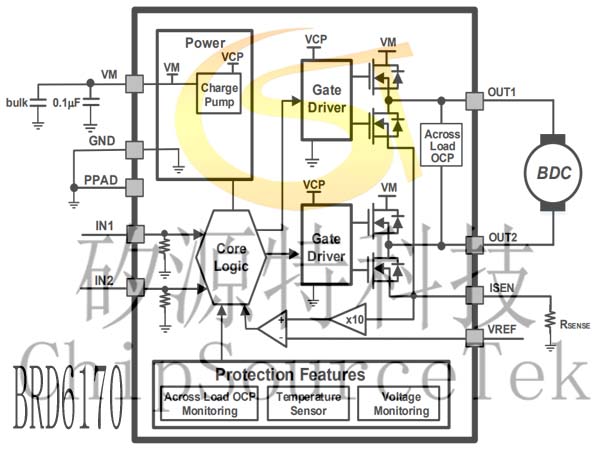

    BDR6170 BLOCK DIAGRAM"


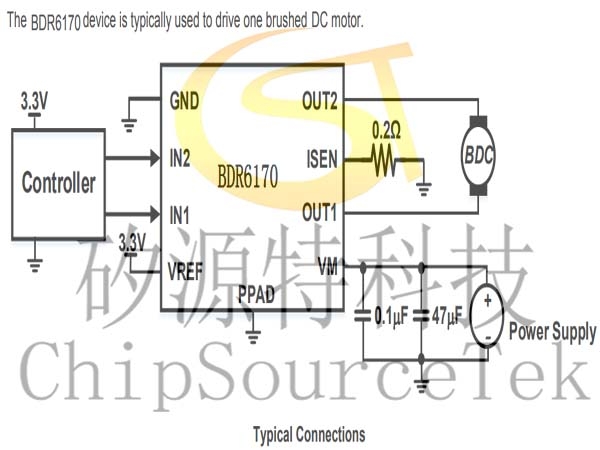

    BDR6170 PPLICATION CIRCUIT:


    BDR6170 ORDER INFORMATION:

    Valid Part Number

    Package Type

    Top Code

    BDR6170-HS

    8 Pins, HSOP

    BDR6170 -HS


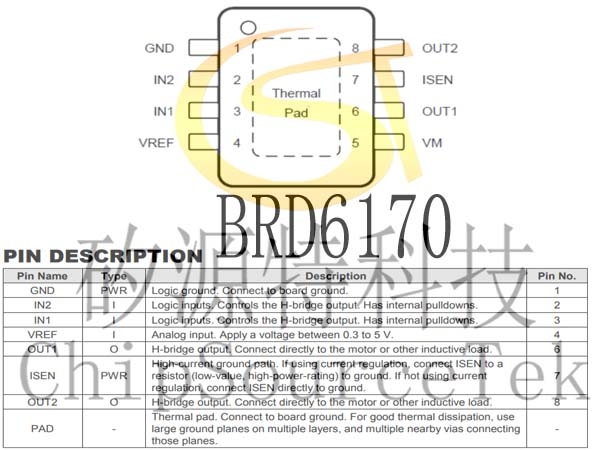

    BDR6170 PIN CONFIGURATION/PIN DESCRIPTION:
