Hall Chip

CST4002

    The CST4002 is Unipolar Hall effect sensor IC is fabricated from mixed signal CMOS technology. It is comprised of one Hall plate and a CMOS output drive,mainly designed for battery-operation. The total power consumption in normal operation is typically 5.6μW with a 2.8V power source. South/North poles of sufficient strength will turn the output on. The output will be turned off under no magnetic field.
    The CST4002 is available in SIP-3L, SOT23-3L,SOT553, DFN1216-4L-EP Package. Operating temperature range of the CST4002 is from -40°C to 85°C.
    CST4002 Description/概述:
        The CST4002 is Unipolar Hall effect sensor IC is fabricated from mixed signal CMOS technology. It is comprised of one Hall plate and a CMOS output drive,mainly designed for battery-operation. The total power consumption in normal operation is typically 5.6μW with a 2.8V power source. South/North poles of sufficient strength will turn the output on. The output will be turned off under no magnetic field.
        The CST4002 is available in SIP-3L, SOT23-3L,SOT553, DFN1216-4L-EP Package. Operating temperature range of the CST4002 is from -40°C to 85°C.
        CST4002是单极霍尔效应传感器IC由混合信号CMOS技术制造。是的包括一个霍尔板和CMOS输出驱动器,主要设计用于电池操作。总功率正常运行时的功耗通常为5.6μW2.8V电源。足够的南极/北极强度将打开输出。输出将为在没有磁场的情况下关闭。
        CST4002可在SIP-3L、SOT23-3L、SOT33-3L和SOT23-3R中获得,SOT553,DFN1216-4L-EP封装。操作CST4002的温度范围从-40°C到85°C。

    CST4002 Features/特性:
    2μA Micro power consumption ideal for battery powered applications
    Input VoltageRange:1.65V to 5.5V
    Very High Sensitivity Hall Sensor
    Chopper stabilized amplifier stage
    Good RF noise immunity
    CMOS Output
    SIP-3L, DFN1216-4L-EP, SOT23-3L, & SOT553 package

    CST4002 Applications/应用:
    Solid State Switch
    Bluetooth Headset

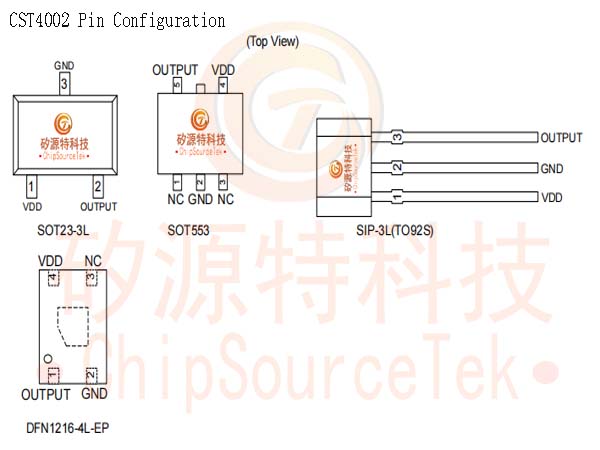

    CST4002 Pin Configuration:

    CST4002 Ordering Information:
    Part Number
    Package Type
    Packing Qty
    BOP
    (Gauss)
    BRP
    (Gauss)
    Temperature
    Eco Plan
    Lead
    CST4002MD SIP-3L 1000pcs/Bag
    40(Typ.)
    30(Typ.)
    -40~ +85°C
    ROHS
    Cu
    CST4002NMD SIP-3L 1000pcs/Bag
    -40(Typ.)
    30(Typ.)
    -40~ +85°C
    ROHS
    Cu
    CST4002WAD SOT23-3L 3000pcs/Reel
    40(Typ.)
    30(Typ.)
    -40~ +85°C
    ROHS
    Cu
    CST4002NWAD SOT23-3L 3000pcs/Reel
    -40(Typ.)
    30(Typ.)
    -40~ +85°C
    ROHS
    Cu
    CST4002STAD SOT553 3000pcs/Reel
    40(Typ.)
    30(Typ.)
    -40~ +85°C
    ROHS
    Cu
    CST4002NSTAD SOT553 3000pcs/Reel
    -40(Typ.)
    30(Typ.)
    -40~ +85°C
    ROHS
    Cu
    CST4002SEV4AD DFN1216-4L-EP 3000pcs/Reel
    40(Typ.)
    30(Typ.)
    -40~ +85°C
    ROHS
    Cu
    CST4002NEV4AD DFN1216-4L-EP 3000pcs/Reel
    -40(Typ.)
    30(Typ.)
    -40~ +85°C
    ROHS
    Cu

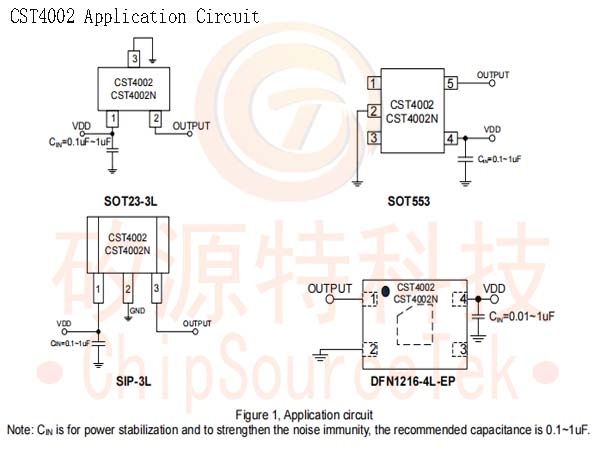

    CST4002 Application Circuit:

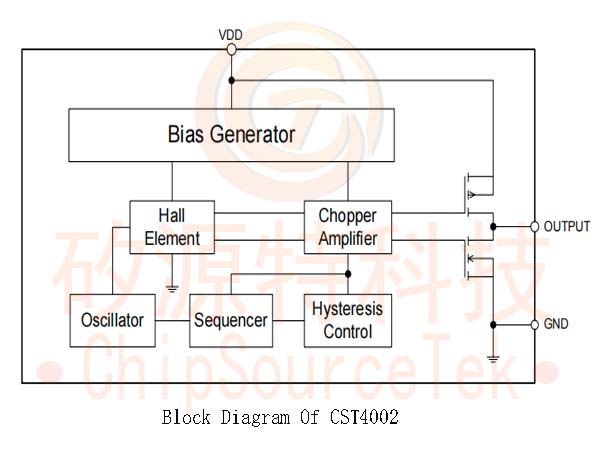

    CST4002 Block Diagram:

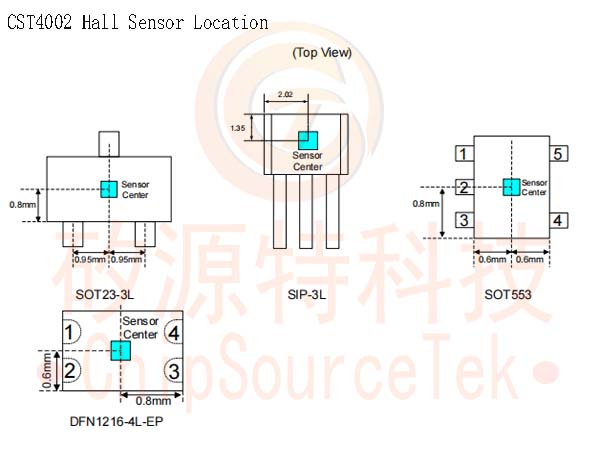

    CST4002 Hall Sensor Location:
