ME6210

    ME6210series are low quiescent, low-dropout linear voltage regulators.

    ME6210 series are based on the CMOS process and allow high voltage

    ME6210 series have short circuit protection function.
    ME6210 General Description:
        ME6210series are low quiescent, low-dropout linear voltage regulators.
        ME6210 series are based on the CMOS process and allow high voltage
        ME6210 series have short circuit protection function.

    ME6210 Features:
    High output accuracy:± 2%
    Input voltage:2V to 18 V
    Output voltage:1.5V ~ 5.0V
    Ultra-low quiescent current (Typ. = 1.5 µ A)
    Output Current:Iout = 500mA
    When Vin = 4V and Vout =3V)
    Low dropout voltage: 11mV@ Iout =10mA (Typ.Vout = 3.0V)
    Input good stability:Typ. 0.03% / V
    Short-circuit Current::Typ. 50mA
    Ceramic capacitor can be used

    ME6210 Typical Application:
    Power source for home electric/electronic appliances
    Power source for battery-powered devices
    Power source for personal communication devices

    ME6210 Package:
    3-pin SOT89-3,SOT23-3,SOT23,TO92

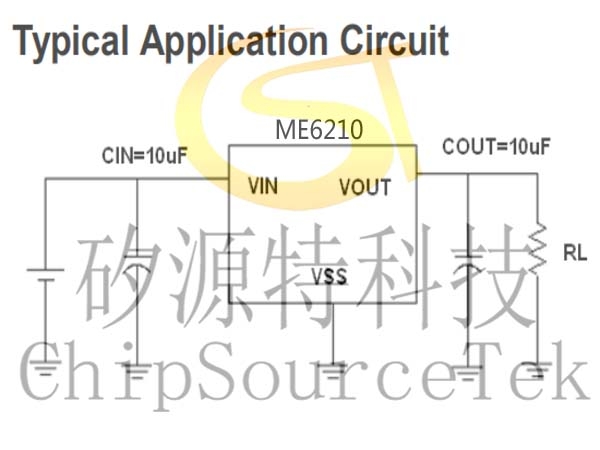

    ME6210 Typical Application Circuit:

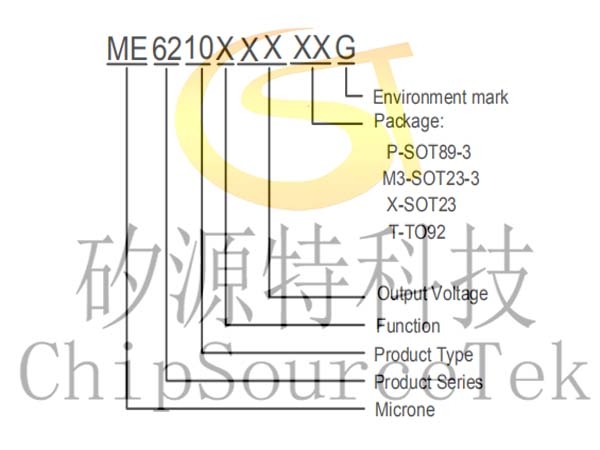

    ME6210 Selection Guide:

    product series
    product description
    ME6210A30PG
    VOUT =3.0V; Package:SOT89-3
    ME6210A28M3G
    VOUT =2.8V; Package:SOT23-3
    ME6210A33M3G
    VOUT =3.3V; Package:SOT23-3
    NOTE:
        1. At present ,there are five kinds of voltage value: 2.5、2.8V、3.0V、3.3V、3.6V、4.0V、5.0V。
        2. If you need other voltage and package, please contact our sales staff。

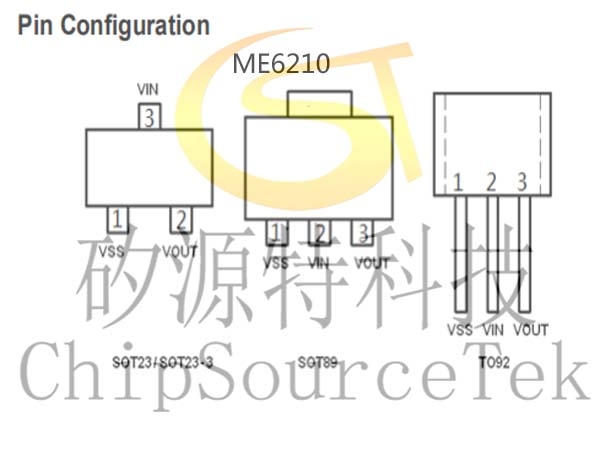

    ME6210 Pin Configuration:
    ME6210 Pin Assignmen:
    Pin Number
    Name
    Function
    M3
    P
    X
    T
    SOT23-3
    SOT89-3
    SOT23
    TO-92
    1
    1
    1
    1
    VSS
    Ground
    2
    3
    2
    3
    VOUT
    Output
    3
    2
    3
    2
    VIN
    Input

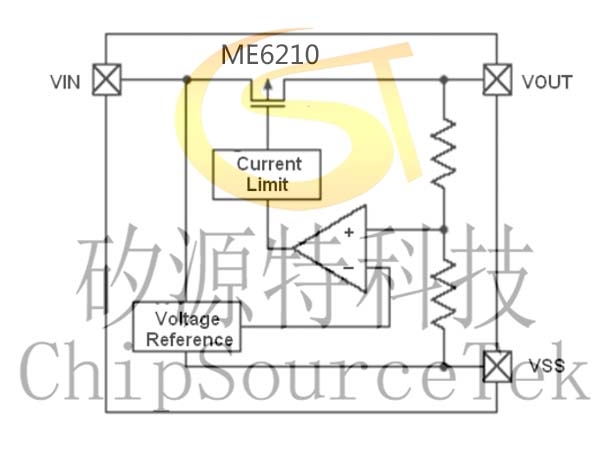

    ME6210 Block Diagram:
