LDO

TX78XXMXX

    The TX78XXM series is a group of positive voltage output, three-pin regulators, it provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies.

    The TX78XXM consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Load Transient response has improved in comparison to the existing series. SOT89, SOT23-3 and SOT23-5 packages are available.
    TX78XXM General Description:
        The TX78XXM series is a group of positive voltage output, three-pin regulators, it provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies.
        The TX78XXM consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Load Transient response has improved in comparison to the existing series. SOT89, SOT23-3 and SOT23-5 packages are available.

    TX78XXM Features:
    Low voltage drop: 0.23V@100mA
    High input voltage: 15V
    Low temperature coefficient
    Large Output Current: >0.5A
    Low Quiescent Current: 2.0uA
    Output voltage accuracy: tolerance ±2%
    Built-in current limiter
    SOT89,SOT23-3 and SOT23-5 packages

    TX78XXM Applications:
    Battery-powered equipment
    Hand-Hold Equipment
    GRS Receivers
    Wireless LAN

    TX78XXM Selection Table:
    Part No.
    Output Voltage
    Package
    Marking
    TX7818Mxx
    1.8V
    SOT89
    SOT23-3
    SOT23-5

    Refer to Marking rule

    TX7828Mxx
    2.8V
    TX7830Mxx
    3.0V
    TX7833Mxx
    3.3V
    TX7836Mxx
    3.6V
    TX7840Mxx
    4.0V
    TX7845Mxx
    4.5V
    TX7850Mxx
    5.0V

    TX78XXM Order Information:
    TX78①②③④⑤
    Designator
    Symbol
    Description
    ①②
    Integer
    Output Voltage(1.5~5.0V)
    M
    Standard
    P
    Package:SOT89
    M
    Package:SOT23-3
    M5
    Package:SOT23-5
    R
    RoHS/Pb Free
    G
    Halogen Free

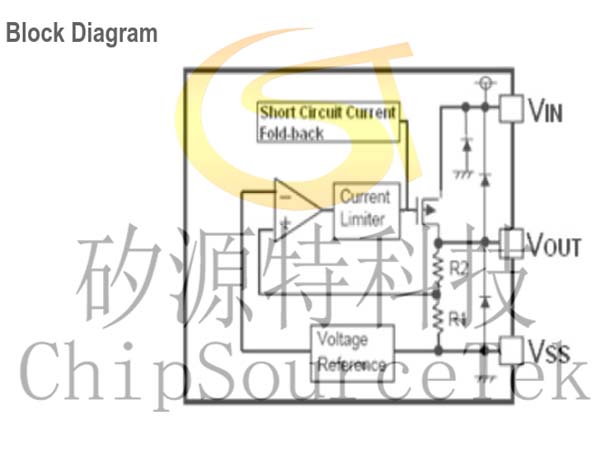

    TX78XXM Block Diagram:

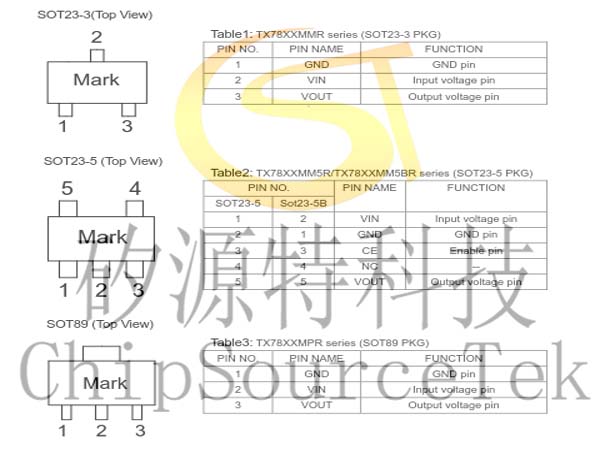

    TX78XXM Pin Assignment:


    TX78XXM Typical Application:

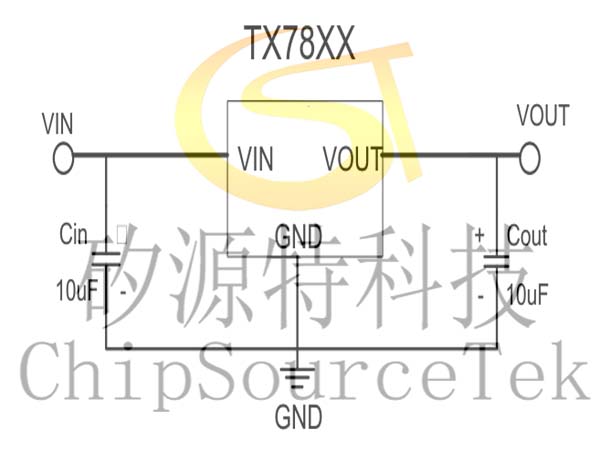

    Note1: Cin=Cout=10uF. (10uF Electrolytic capacitor is recommended).

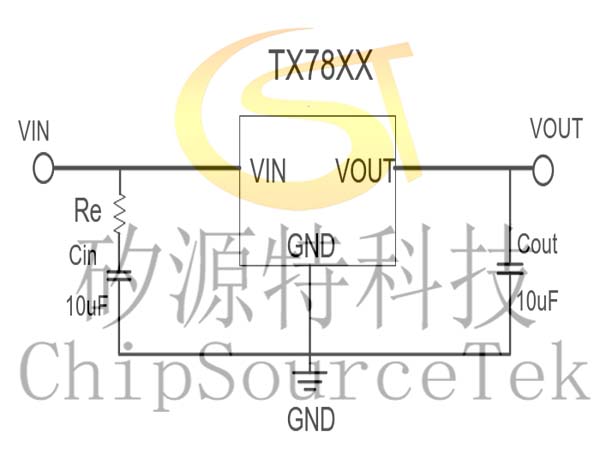

    Note2: If the input and output capacitors are ceramic, add a resistor at the input, as follows.

    Note: Re=(1.2~1.8)Ω.

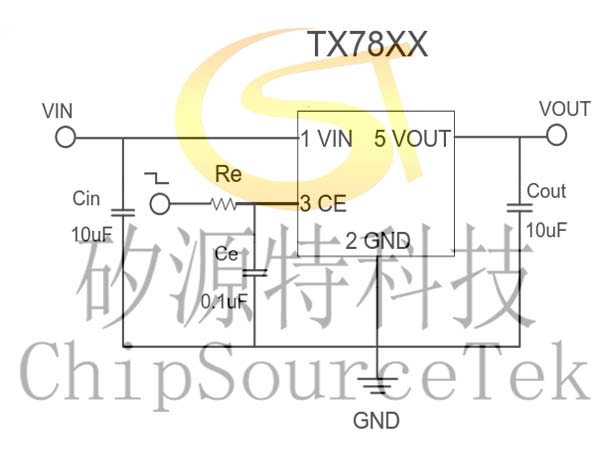

    Note1:Input capacitor  CIN=10uF.
    Note2:Ouput capacitor COUT=10uF/6.8uF(1uF Tantalum capacitor or 6.8uF ceramic capacitor is
    recommended).
    Note3:The CE port is recommended to connect the current limiting resistor Re. The recommended
    resistance is 10K~47K. When the input voltage is larger than or equal to 12V, it is recommended to add a 0.01uF capacitor Ce.
