ME6209

    The ME6209 series are a group of positive voltage output, three –pin regulator, that provide a high current even when the input/output Voltage differential is small.

    Low power consumption and high accuracy is achieved through CMOS technology. They allow input voltages as high as 18V.
    ME6209 General Description:
        The ME6209 series are a group of positive voltage output, three –pin regulator, that provide a high current even when the input/output Voltage differential is small. Low power consumption and high accuracy is achieved through CMOS technology. They allow input voltages as high as 18V.

    ME6209 Features:
    Ultra low quiescent current: 3.0uA(typ)
    High input voltage (up to 18V)
    Low dropout voltage :80mV@Iout=40mA
      (VOUT=3.3V)
    Output voltage accuracy: ±2%
    Maximum output current:250mA (VOUT =3.3V)
    Low temperature coefficient

    ME6209 Application:
    Cameras, video recorders
    Voltage regulator for microprocessor
    Voltage regulator for LAN cards
    Wireless communication equipment
    Audio/Video equipment

    ME6209 Package:
    3-pin SOT23-3、SOT89-3、TO-92

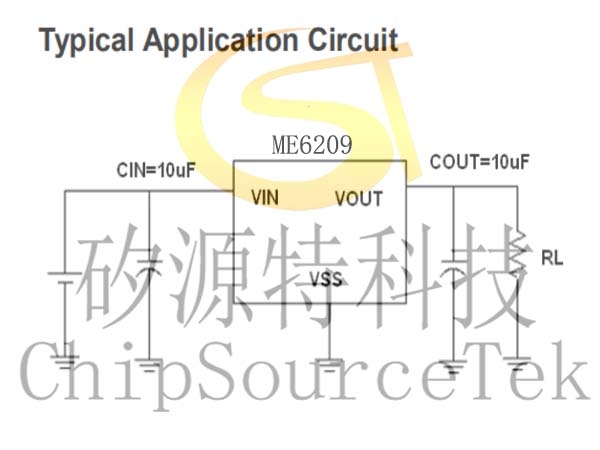

    ME6209 Typical Application Circuit:


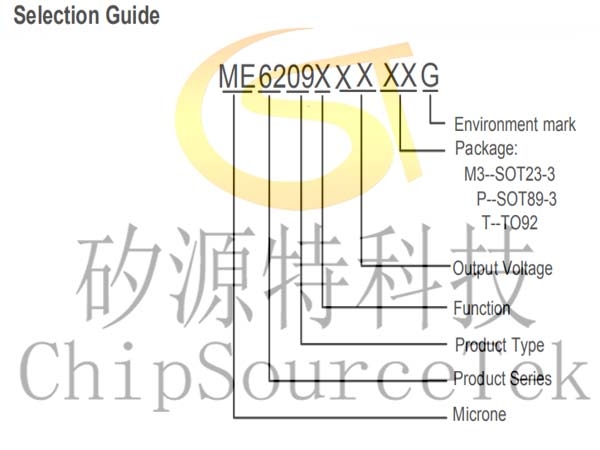

    ME6209 Selection Guide:

    product series

    product description

    ME6209A18M3G
    VOUT =1.8V; Package:SOT23-3
    ME6209A25TG
    VOUT =2.5V; Package:TO-92
    ME6209A27M3G
    VOUT =2.7V; Package:SOT23-3
    ME6209A33PG
    VOUT =3.3V; Package::SOT89-3
    ME6209A44PG
    VOUT =4.4V; Package::SOT89-3
    ME6209A50M3G
    VOUT =5.0V; Package:SOT23-3
    NOTE: At present ,there are five kinds of voltage value:
    1.8V、2.5V、2.7V、2.8V、3.0V、3.3V、3.6V、4.0V、4.4V、4.5V、5.0V。
    If you need other voltage and package, please contact our sales staff。


    ME6209 Pin Configuration:

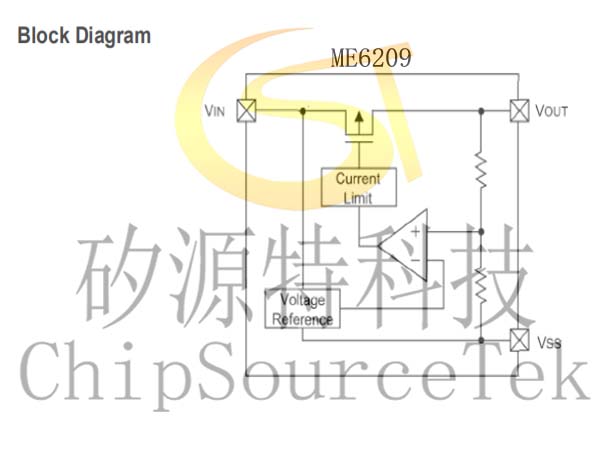

    ME6209 Block Diagram:
