Lithium battery protection chip

RY2201

    The RY2201 is a high integration solution for lithium-ion/polymer battery protection.
    RY2201 contains internal power MOSFET, high-accuracy voltage detection circuits and delay circuits.
    RY2201 has all the protection functions required in the battery application including overcharging, over discharging, overcurrent and load short circuiting protection etc. The accurate overcharging detection voltage ensures safe and full utilization charging. The low standby current drains little current from the cell while in storage. The device is not only targeted for digital cellular phones, but also for any other Li-Ion and Li-Poly battery-powered information appliances requiring long-term battery life.
    The RY2201 requires a minimal number of readily available, external components and is available in a space saving SOT23-5 package.
    RY2201概述:
        The RY2201 is a high integration solution for lithium-ion/polymer battery protection.
        RY2201 contains internal power MOSFET, high-accuracy voltage detection circuits and delay circuits.
        RY2201 has all the protection functions required in the battery application including overcharging, over discharging, overcurrent and load short circuiting protection etc. The accurate overcharging detection voltage ensures safe and full utilization charging. The low standby current drains little current from the cell while in storage. The device is not only targeted for digital cellular phones, but also for any other Li-Ion and Li-Poly battery-powered information appliances requiring longterm battery life.
        The RY2201 requires a minimal number of readily available, external components and is available in a space saving SOT23-5 package.

    RY2201特性:
    Protection of Charger Reverse Connection
    Protection of Battery Cell Reverse Connection
    Over-temperature Protection
    Overcharge Current Protection
    Two-step Overcurrent Detection:Over Discharge Current Load Short Circuiting
    Charger Detection Function
    0V Battery Charging Function
    RoHS Compliant and Lead (Pb) Free
    40mΩ Low RSS(ON) Internal Power MOSFET
    Delay Times are generated inside
    High-accuracy Voltage Detection
    Low Current Consumption Operation Mode: 2.5μA typ.Power-down Mode: 1.5μA typ.
    Only One External Capacitor Required
    Available in SOT23-5 Package
    -40°C to +85°C Temperature Range

    RY2201应用:
    One-Cell Li-ion Battery Pack
    Power Bank
    One-Cell Li-poly Battery Pack
    IOT Sensor/Electronic Toys
    Order Information

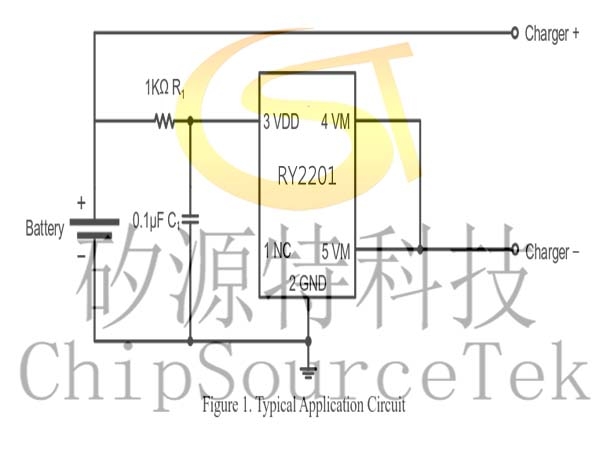

    RY2201典型应用图:

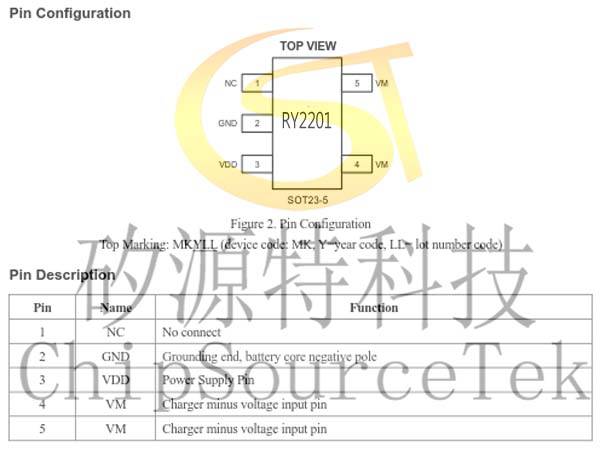

    RY2201管脚配置及说明:


    RY2201订购信息:

    Marking Part No. Model Description Package T/R Qty
    MKYLL 70702030 RY2201 RY2201 One Cell Li-ion and Li-poly
    Battery Protection IC, 3A, SOT23-5
    SOT23-5 3000 PCS

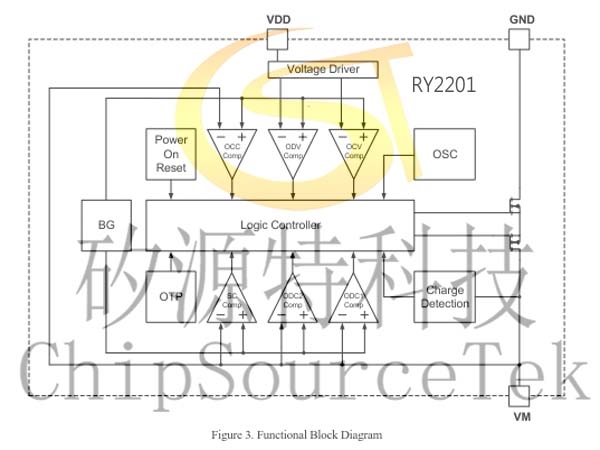

    RY2201功能框图:
