S-N-MOS

MXN6542 DFN5*6-8L

    MXN6542是VDS=60V,ID=45A,RDS(ON)(Typ.)<8.5m?,@VGS=10V,RDS(ON)(Typ.)<11m?,@VGS=-4.5V的N-Channel MOSFET.
    MXN6542提供DFN5*6-8L封装.
    The MXN6542 uses advanced trench technology and design to provide excellent RDS(ON), With low gate charge.
    It can be used in awide variety Of applications.

    MXN6542概述:
        MXN6542是VDS=60V,ID=45A,RDS(ON)(Typ.)<8.5m?,@VGS=10V,RDS(ON)(Typ.)<11m?,@VGS=-4.5V的N-Channel MOSFET.MXN6542提供DFN5*6-8L封装.
        The MXN6542 uses advanced trench technology and design to provide excellent RDS(ON), With low gate charge. It can be used in awide variety Of applications.

    MXN6542特性:
    VDS = 60V,ID = 45A
    RDS(ON)(Typ.) < 8.5m? @ VGS=10V
    RDS(ON)(Typ.) < 11m? @ VGS=-4.5V
    High density cell design for ultra low Rdson
    Fully characterized avalanche voltage and current
    Low gate to drain charge to reduce switching losses

    MXN6542应用:

    Power switching application
    Load switch

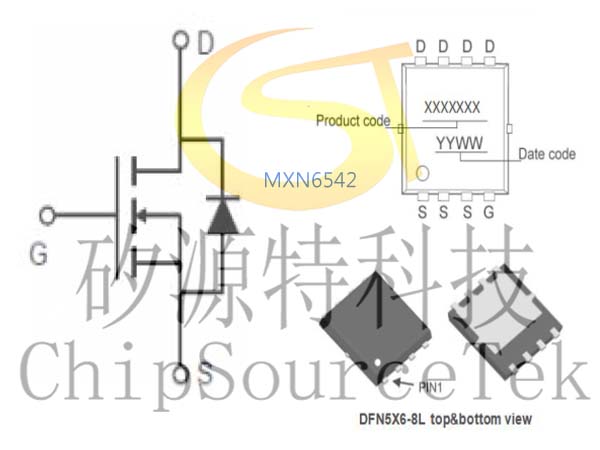

    MXN6542典型应用及引脚图
