MOT8205 Description/概述：
MOT8205 is VDS=20V, RDS (on) Typ (@ VGS=2.5V)=23m Ω, RDS (on) Typ (@ VGS=4.5V)=17m Ω, Qg@type =8.4nC, ID=6A N-channel enhanced Mosfet. Provide SOT23-6 packaging.
MOT8205 Features/特性：
|
VDSS
|
20V
|
|
RDS (on)Typ(@VGS=2.5V)
|
23mΩ
|
|
RDS (on)Typ(@VGS=4.5V)
|
17mΩ
|
|
Qg@type=8.4nC
|
8.4nC
|
|
ID
|
6A
|
Avalanche energy Specified
Improved dv/dt capability, high ruggedness

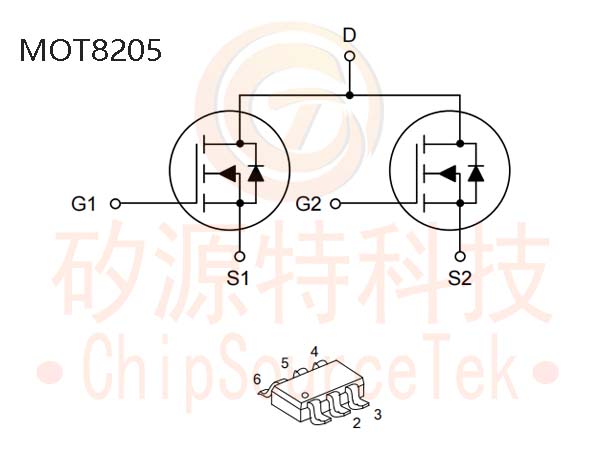

MOT8205 Pin Configuration/引脚配置：
MOT8205 Order Information/订购信息：
|
Order codes
|
Package
|
Packing
|
|
|
Halogen-Free
|
Halogen
|
SOT-23-6L
|
2500pieces /Reel
|
|
N/A
|
MOT8205
|
||

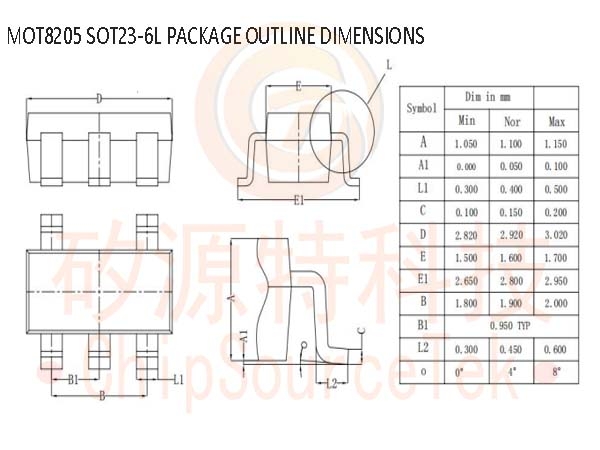

MOT8205 SOT23-6L PACKAGE OUTLINE DIMENSIONS/包装外形尺寸：
