S-N-MOS

CST30N10B TO252

    CST30N10B是BVDSS=100V,RDSON=37mΩ,ID=30A的N沟道快速切换Mosfets。提供TO252封装。
    The CST30N10B is the highest performance trench Nch MOSFETs with extreme high cell density,which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .
    The CST30N10B meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
    CST30N10B Description/描述:
        CST30N10B是BVDSS=100V,RDSON=37mΩ,ID=30A的N沟道快速切换Mosfets。提供TO252封装。
        The CST30N10B is the highest performance trench Nch MOSFETs with extreme high cell density,which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .
        The CST30N10B meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.

    CST30N10B Features/特性:
    Super Low Gate Charge
    Green Device Available
    Excellent Cdv/dt effect decline
    Advanced high cell density Trench technology

    CST30N10B Product Summary/产品概览:
    BVDSS
    RDSON
    ID

    100V

    37

    30A

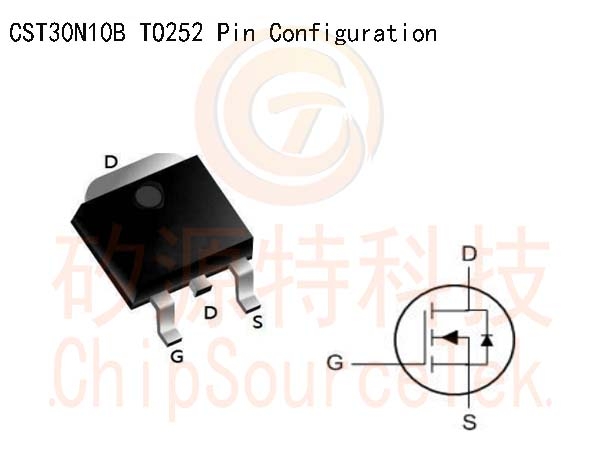

    CST30N10B TO252 Pin Configuration/引脚配置:

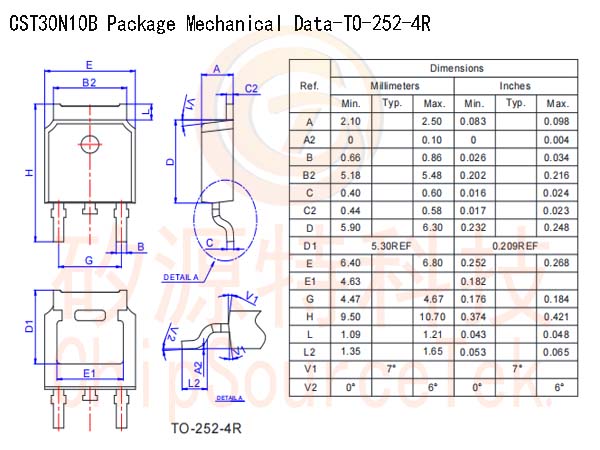

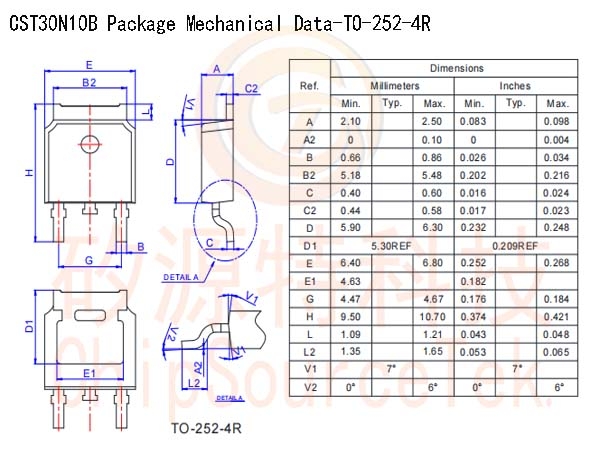

    CST30N10B Package Size/封装尺寸:


    Please submit your basic information and send an email Sales@ChipSourceTek.com , or call us at 13823761625 (the same number as wechat), and we will contact you as soon as possible!

    *

    *

    *

    *
