S-N-MOS

CST1002C SOT23

    CST1002C is an N-channel fast switching Mosfet with BVDSS=100V, RDSON=220mΩ, and ID=2.2A. Provide SOT23 packaging.
    The CST1002C is the high cell density trenched N-ch MOSFETs, which provides excellent RDSON and efficiency for most of the small power switching and load switch applications.
    The CST1002C meet the RoHS and Green Product requirement with full function reliability approved.
    CST1002C Description:
        CST1002C is an N-channel fast switching Mosfet with BVDSS=100V, RDSON=220mΩ, and ID=2.2A. Provide SOT23 packaging.
        The CST1002C is the high cell density trenched N-ch MOSFETs, which provides excellent RDSON and efficiency for most of the small power switching and load switch applications.
        The CST1002C meet the RoHS and Green Product requirement with full function reliability approved.

    CST1002C Feature:
    Green Device Available
    Super Low Gate Charge
    Excellent Cdv/dt effect decline
    Advanced high cell density Trench technology

    CST1002C Product Summary:
    BVDSS
    RDSON
    ID

    100V

    220

    65A

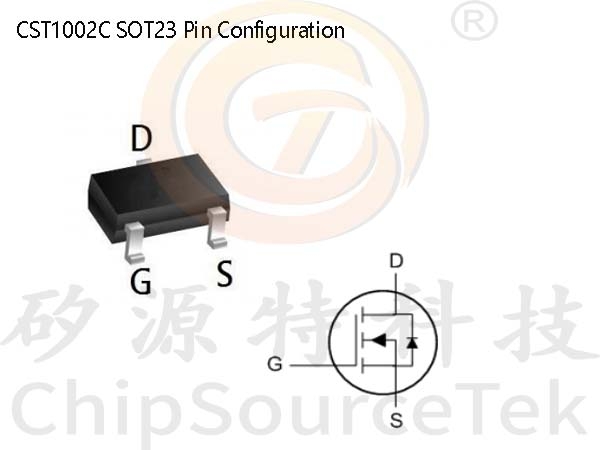

    CST1002C SOT23 Pin Configuration:

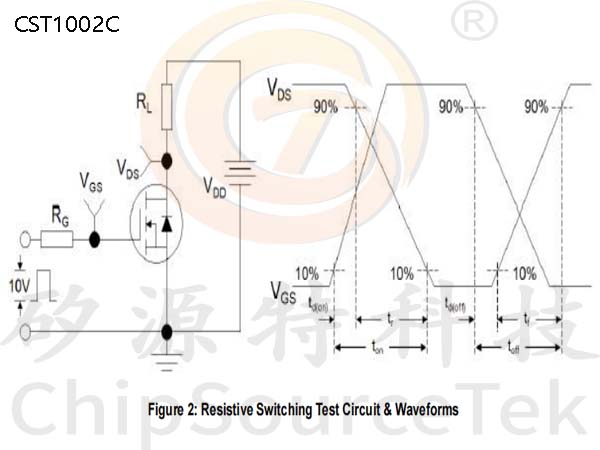

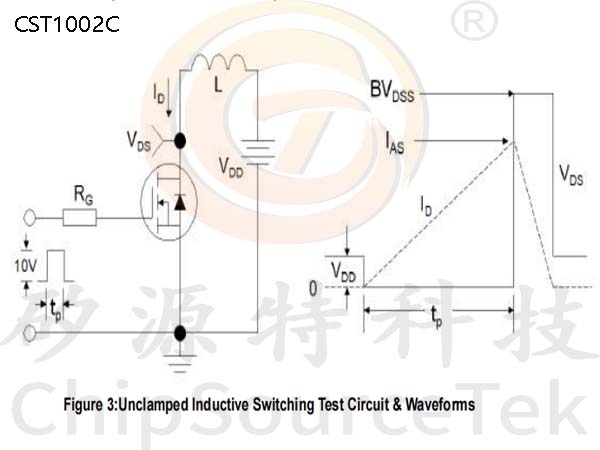

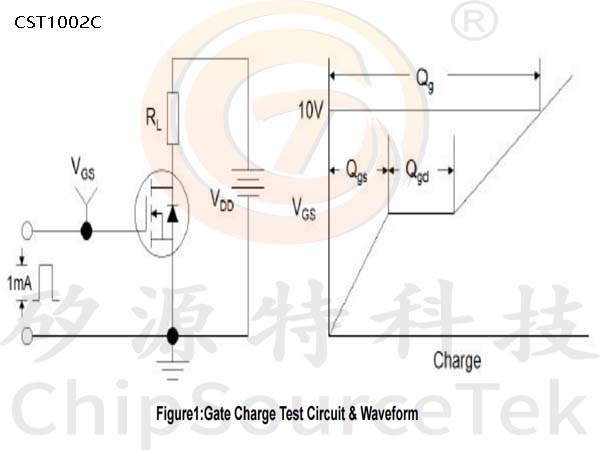

    CST1002C Test Circuit:

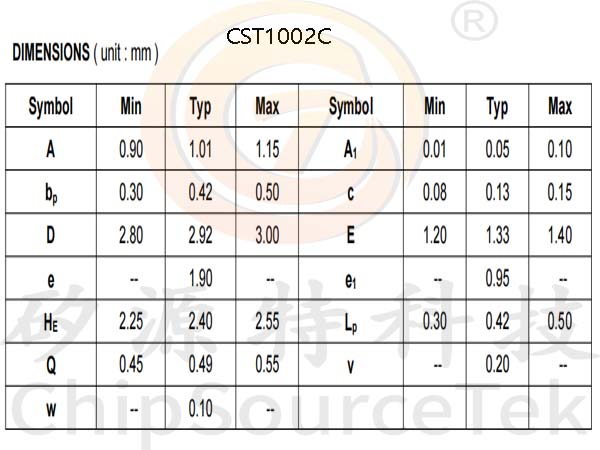

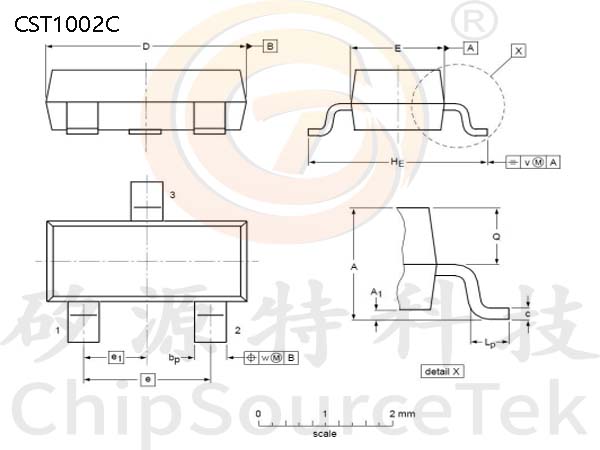

    CST1002C SOT23 Mechanical tData:
