CST6005 Description:
CST6005 is a fast switching Mosfet for N-channel with BVDSS=60V, RDSON=41mΩ, and ID=5A. Provide SOT23 packaging.
The CST6005 is the high cell density trenched N-ch MOSFETs,which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST6005 meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST6005 Feature:
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST6005 Product Summary:
BVDSS
|
RDSON
|
ID
|
60V |
41mΩ |
5A |

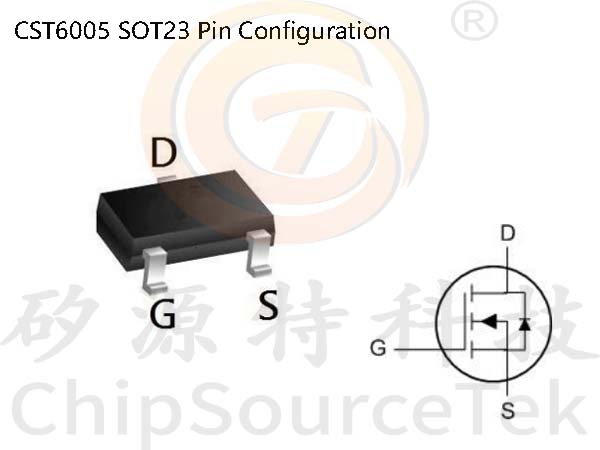

CST6005 SOT23 Pin Configuration:

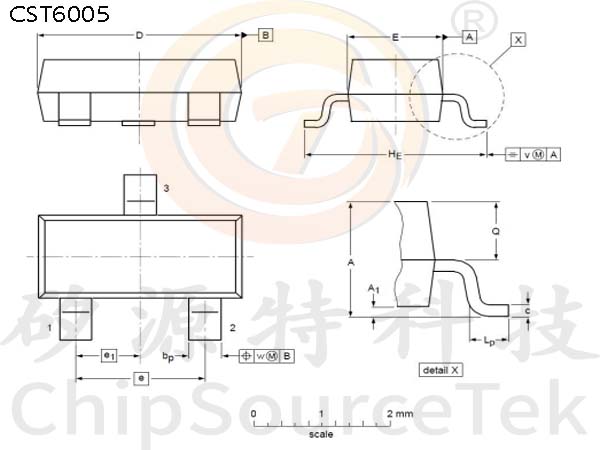

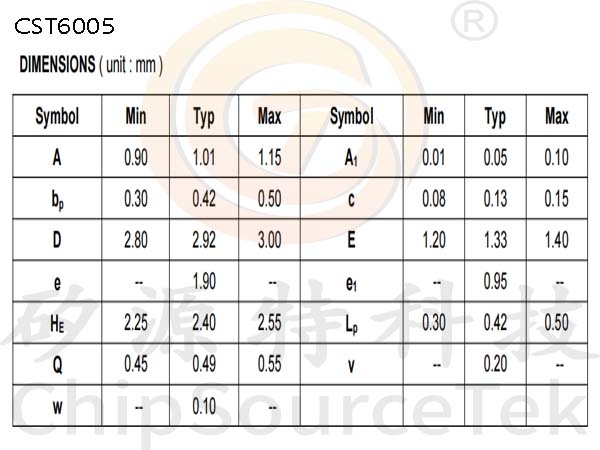

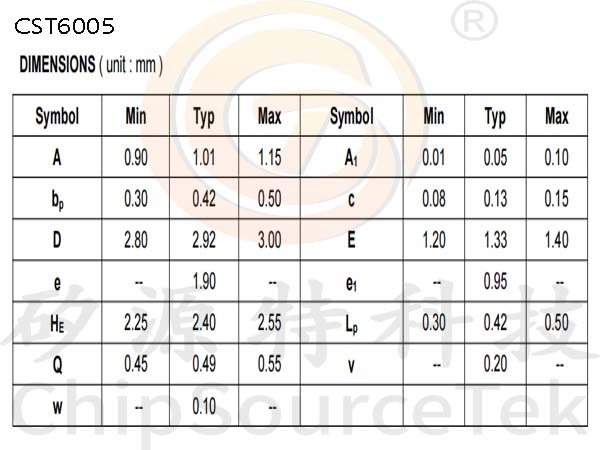

CST6005 Package Mechanical Data-SOT-23:
