S-P-MOS

CST40P03D PDFN3333-8L

    CST40P03D是BVDSS=-30V,RDSON=12mΩ,ID=-40A的P沟道快速切换Mosfets。提供PDFN3333-8L封装。
    The CST40P03D is the high cell density trenched P-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
    TheCST40P03D meet the RoHS and Gree Product requirement 100% EAS guaranteed with full function reliability approved.
    CST40P03D Description/描述:
        CST40P03D是BVDSS=-30V,RDSON=12mΩ,ID=-40A的P沟道快速切换Mosfets。提供PDFN3333-8L封装。
        The CST40P03D is the high cell density trenched P-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
        TheCST40P03D meet the RoHS and Gree Product requirement 100% EAS guaranteed with full function reliability approved.

    CST40P03D Features/特性:
    100% EAS Guaranteed
    Green Device Available
    Super Low Gate Charge
    Excellent CdV/dt effect decline
    Advanced high cell density Trench technology

    CST40P03D Product Summary/产品概览:
    BVDSS
    RDSON
    ID

    -30V

    12mΩ

    -40A

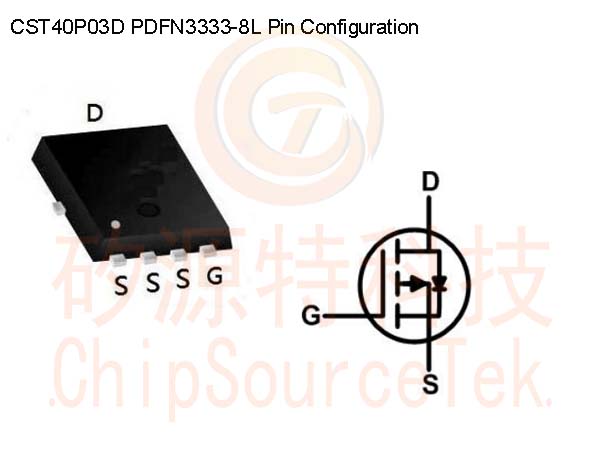

    CST40P03D PDFN3333-8L Pin Configuration/引脚配置:

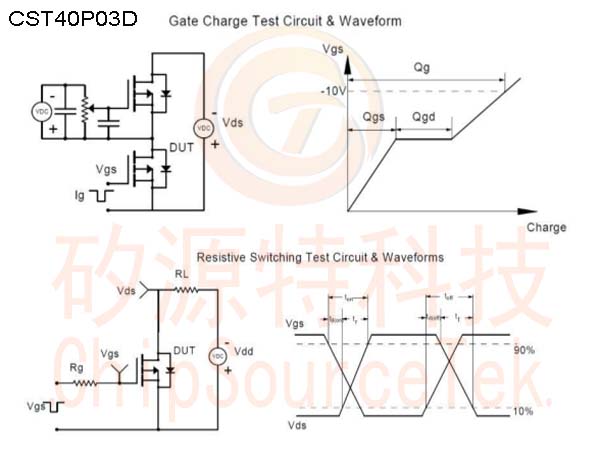

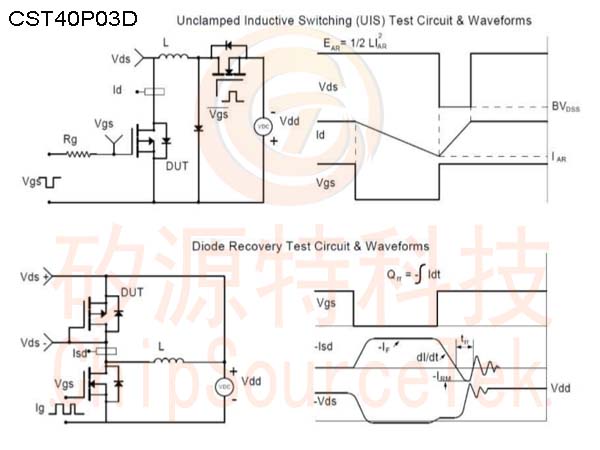

    CST40P03D Test Circuit/测试电路:
