Voltage rise fall chip

ME2149

    The ME2149 series is a CMOS step-up switching regulator which mainly consists of a reference voltage source, an oscillation circuit, an error amplifier, a phase compensation circuit, a PWM/PFM switching control circuit. With an internal low-ON-resistance Nch Power MOS, this product is applicable to applications requiring high efficiency and high output current.

    The ME2149 series switches its operation to the PFM control circuit whose duty ratio is 15 % with to the PWM/PFM switching control circuit under a light load and to prevent decline in the efficiency by IC operation current.
    ME2149 General Description:
        The ME2149 series is a CMOS step-up switching regulator which mainly consists of a reference voltage source, an oscillation circuit, an error amplifier, a phase compensation circuit, a PWM/PFM switching control circuit. With an internal low-ON-resistance Nch Power MOS, this product is applicable to applications requiring high efficiency and high output current.
        The ME2149 series switches its operation to the PFM control circuit whose duty ratio is 15 % with to the PWM/PFM switching control circuit under a light load and to prevent decline in the efficiency by IC operation current.

    ME2149 Features:
    Low voltage operation: Start-up is guaranteed from 0.9V(IOUT =1 mA )
    Duty ratio: Built-in PWM/PFM switching control circuit 15 to 78 % .
    oscillator frequency:1.0MHz
    Output voltage range:<20V
    Feedback voltage accuracy:±2%
    Soft start function: 2 mS

    ME2149 Applications:
    MP3 players, digital audio players
    Digital cameras, GPS, wireless transceiver
    Portable devices

    ME2149 Package:
    5-pin SOT23-5、SOT89-5
    8-pin SOP8

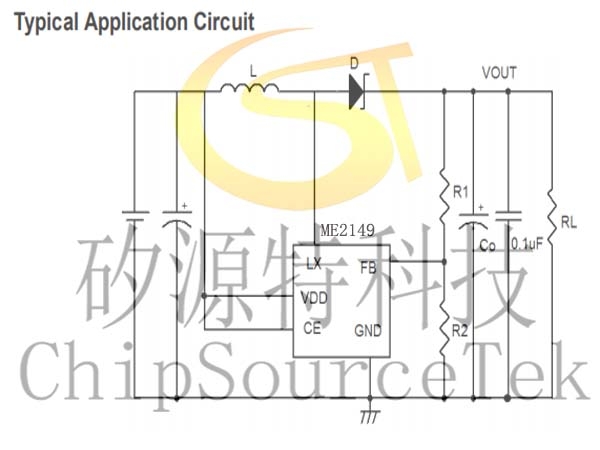

    ME2149 Typical Application Circuit:


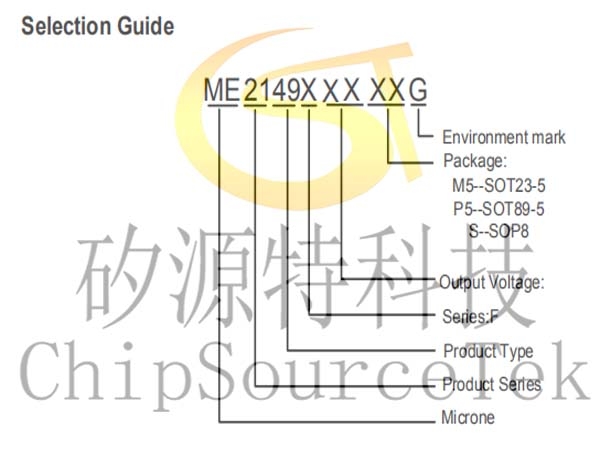

    ME2149 Selection Guide:

    product
    series
    posfix
    package
    switching
    transistor
    CE
    function
    VDD
    function
    FB
    function
    features
    ME2149FxxG
    M5
    SOT23-5
    Build in
    Transistor
    Yes
    Yes
    Yes
    LX+FB
    P5
    SOT89-5
    SOP8
    SOP8

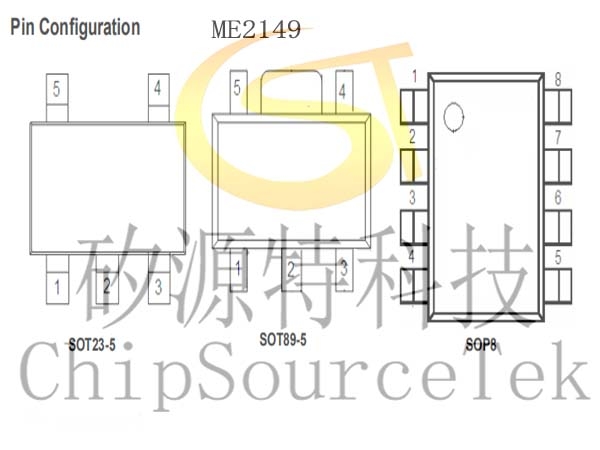

    ME2149 Pin Configuration:


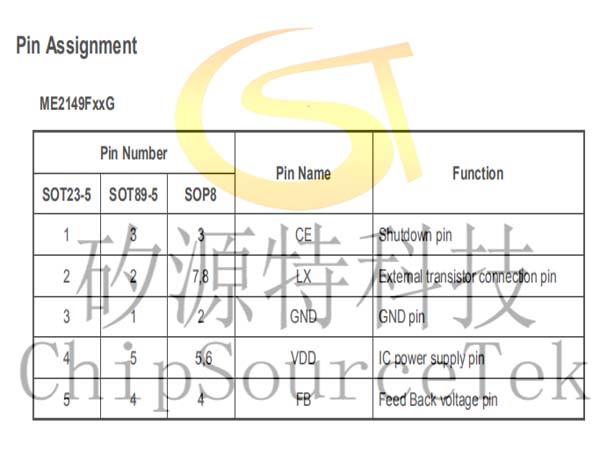

    ME2149 Pin Assignment:


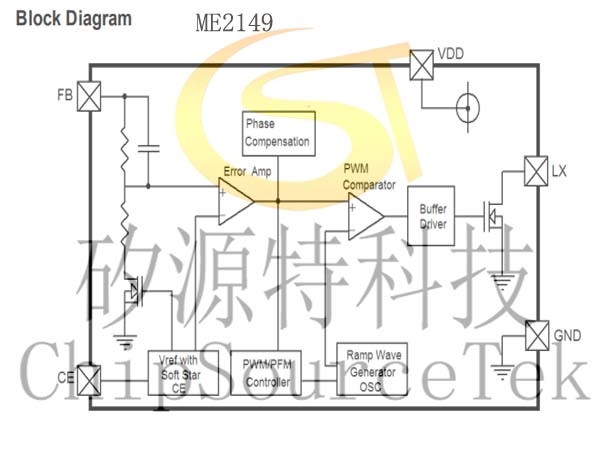

    ME2149 Block Diagram:
