Voltage rise fall chip

ME3148

    The ME3148 is a 160KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 3A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator.

    The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An enable function, an over current protection function is built inside. An internal compensation block is built in to minimize external component count.
    ME3148 Description
        The ME3148 is a 160KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 3A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator.
        The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An enable function, an over current protection function is built inside. An internal compensation block is built in to minimize external component count.

    ME3148 Features
    Input Voltage Range 8V~36V
    Maximum output current 3A
    Fixed 160KHz Switching Frequency
    Output Adjustable from 1.25V to 33V
    Minimum Drop Out 0.3V
    Internal Optimize Power MOSFET
    Excellent line and load regulation
    With output constant current loop
    Built in OTP,OCP and OVP
    Recommend output power less than 13W

    ME3148 Applications
    Car Charger
    Battery Charger
    Portable instrument power supply
    Buck constant current driver
    Monitor LED Backlighting
    General purpose LED lighting

    ME3148 Package
    8-pin ESOP8

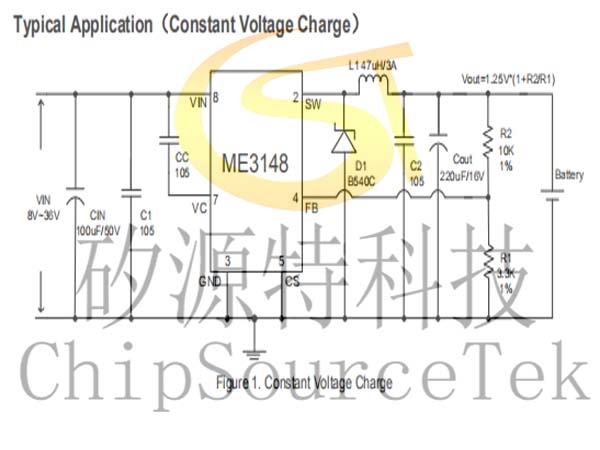

    ME3148 Typical Application(Constant Voltage Charge)

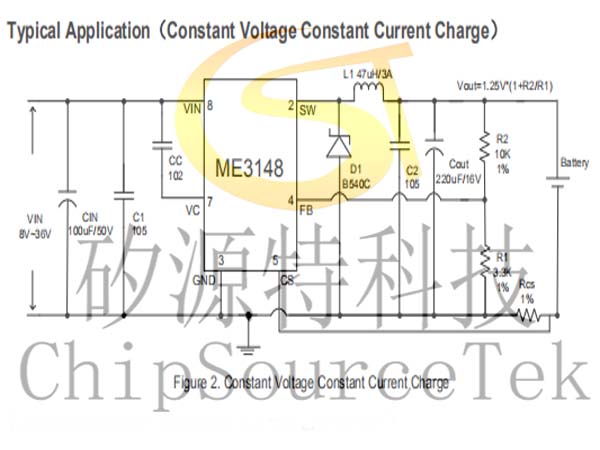

    ME3148 Typical Application(Constant Voltage Constant Current Charge)

    ME3148 Typical Application(Constant Current LED Driver )

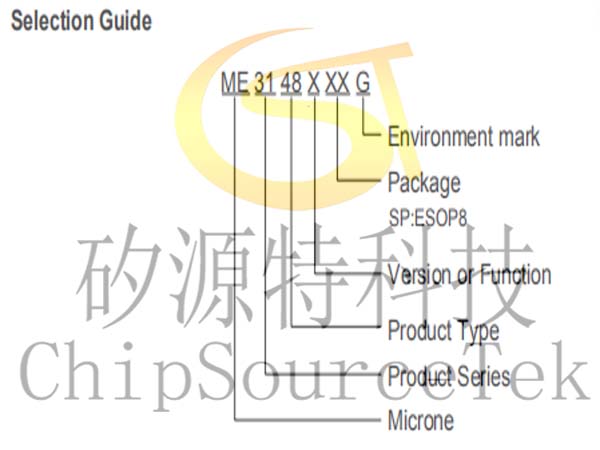

    ME3148 Selection Guide

    Product Series
    Package
    ME3148ASPG
    ESOP8

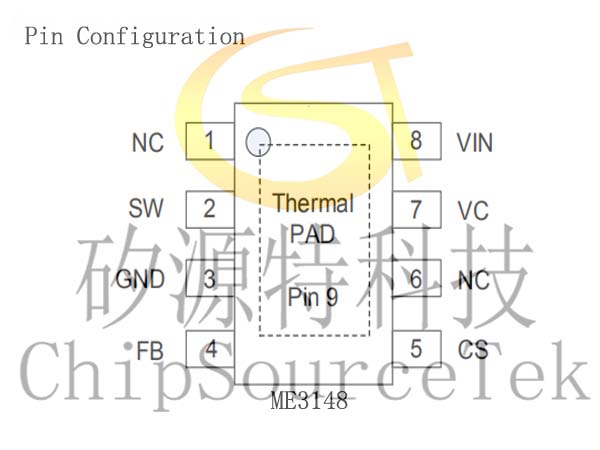

    ME3148 Pin Configuration

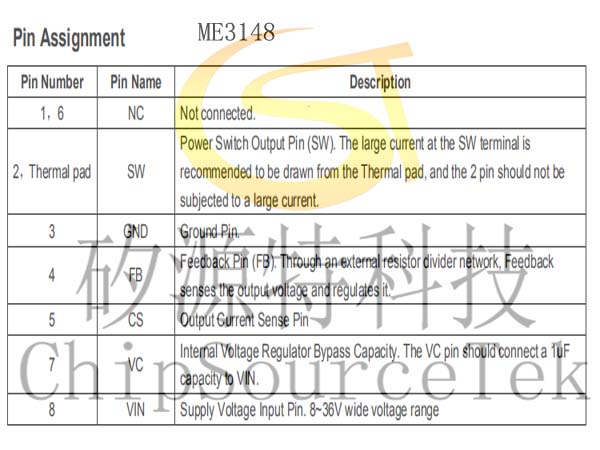

    ME3148 Pin Assignment

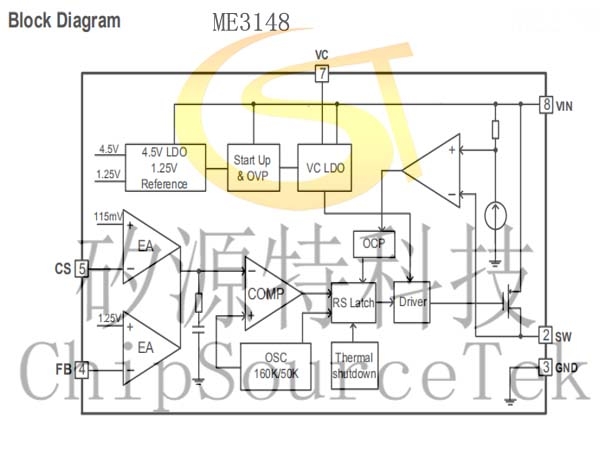

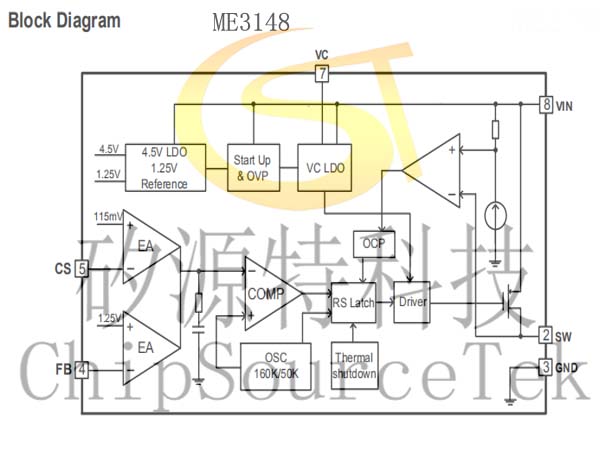

    ME3148 Block Diagram
