Voltage rise fall chip

HT7179

    The HT7179 is a high-power density, asynchronous boost converter with a 20mΩ power switch to provide a high efficiency and small size solution in portable systems.
    The HT7179 has wide input voltage range from 2.7 V to 25 V to support applications with single cell, two cell Lithium batteries and 12V lead-acid batteries. The device has 15A switch current capability and can provide an output voltage up to 26.8V.
    The HT7179 also implements a programmable soft-start function and an adjustable switching peak current limit function. HT7179 integrates two modes with different tr/tf to balance different requirements of EMI and efficiency.
    In addition, the device provides 28V output overvoltage protection, and thermal shutdown protection.
    HT7179概述:
        HT7179是一款高功率异步升压转换器,集成20mΩ功率开关管,为便携式系统提供高效的小尺寸解决方案。
        HT7179具有2.7V至25V宽输入电压范围,可为采用单节或两节锂电池,或12V铅酸电池的应用提供支持。该器件具备15A开关电流能力,并且能够提供高达26.8V的输出电压。
        HT7179还支持可编程的软启动,以及可调节的开关峰值电流限制。HT7179还支持两种不同的tr/tf,以适应不同的EMI和效率需求。
        此外,该器件还提供有28V输出过压保护、和热关断保护。
        The HT7179 is a high-power density, asynchronous boost converter with a 20mΩ power switch to provide a high efficiency and small size solution in portable systems.
        The HT7179 has wide input voltage range from 2.7 V to 25 V to support applications with single cell, two cell Lithium batteries and 12V lead-acid batteries. The device has 15A switch current capability and can provide an output voltage up to 26.8V.
        The HT7179 also implements a programmable soft-start function and an adjustable switching peak current limit function. HT7179 integrates two modes with different tr/tf to balance different requirements of EMI and efficiency.
        In addition, the device provides 28V output overvoltage protection, and thermal shutdown protection.

    HT7179特性:
    输入电压范围:2.7V-25V
    输出电压范围:最高26.8V
    固定开关频率:350kHz
    可编程峰值电流:最高15A
    高转换效率:
      95% (PVIN = 12V, VOUT=25V, IOUT =2A)
      94% (PVIN = 12V, VOUT=25V, IOUT =4.5A)
      93% (PVIN = 7.2V, VOUT=12V, IOUT =1.5A)
      90% (PVIN = 7.2V, VOUT=12V, IOUT =5A)
      96% (PVIN = 12V, VOUT=18V, IOUT =1.5A)
      95% (PVIN = 12V, VOUT=18V, IOUT =6A)
    低关断功耗,关断电流1uA
    支持两种tr/tf模式,应对EMI挑战
    可编程软启动
    输出过压 (28V)、热关断等保护
    ESOP16, QFN3×3.5-20L无铅封装

    HT7179应用:
    无线音箱
    便携式音箱
    移动电源
    充电设备
    USB TYPE-C 电源传输
    拉杆音箱
    平板电脑,笔记本电脑
    POS机终端

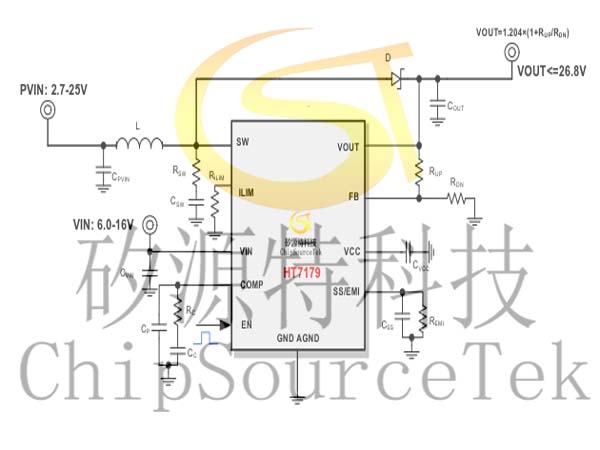

    HT7179 典型应用电路:

    HT7179订购信息:
    Ordering Number
    Package Type
    Marking
    Operating Temperature Range
    Shipping Package / MOQ
    HT7179SPER
    ESOP16
    HT7179
    YYYMAAB1
    -40℃~85℃

    Tape and Reel / 2500pcs

    HT7179SPET
    ESOP16
    HT7179
    YYYMAAB
    -40℃~85℃

    Tube / 50pcs

    HT7179DNR
    QFN3.5×4.5-20L
    HT7179
    YYYMAAB
    -40℃~85℃

    Tape and Reel / 5000PCS


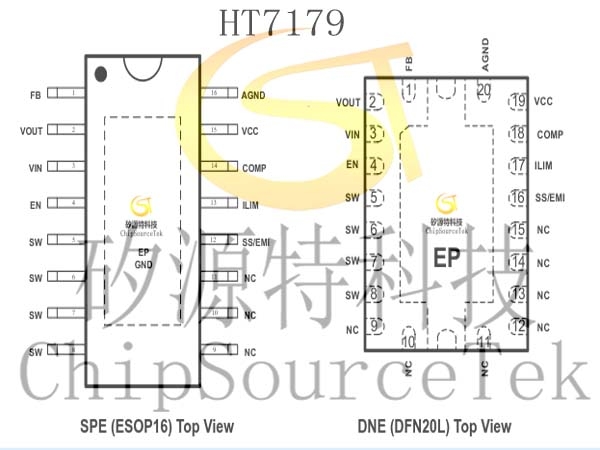

    HT7179引脚配置:

    HT7179引脚说明:
