Voltage rise fall chip

IP2312U

    IP2312U is a 5V input IC that supports single lithium battery synchronous switch step-down charging management.
    IP2312U integrated power MOS adopts a synchronous switching architecture, which requires very few peripheral devices during application and effectively reduces the overall size of the solution, thereby reducing BOM costs.
    The working frequency of the IP2312U boost switch charging converter is 750KHz, with a maximum charging current of 3A and 5V input. The conversion efficiency of 3.7V/2A is 94%; The charging current can be set through an external resistor.
    The input voltage of IP2312U is 5V, and the input can intelligently adjust the charging current to prevent the adapter from hanging.
    IP2312U adopts ESOP8 packaging.
    IP2312U Synopsis:
        IP2312U is a 5V input IC that supports single lithium battery synchronous switch step-down charging management.
        IP2312U integrated power MOS adopts a synchronous switching architecture, which requires very few peripheral devices during application and effectively reduces the overall size of the solution, thereby reducing BOM costs.
        The working frequency of the IP2312U boost switch charging converter is 750KHz, with a maximum charging current of 3A and 5V input. The conversion efficiency of 3.7V/2A is 94%; The charging current can be set through an external resistor.
        The input voltage of IP2312U is 5V, and the input can intelligently adjust the charging current to prevent the adapter from hanging.
        IP2312U adopts ESOP8 packaging.

    IP2312U Features:
    Synchronous switch step-down charging
    Charging efficiency 94% (3.7V/2A)
    Maximum charging current 3A
    The external resistance of the charging current can be adjusted
    Automatically adjust input current, compatible with small current adapters
    Supports 4.20V/4.30V/4.35V/4.4V batteries
    Support NTC temperature protection for charging
    Support LED charging status indication
    Power MOS built-in
    750KHz switching frequency, capable of supporting 1uH inductance
    Input overvoltage and undervoltage protection
    IC over temperature protection
    Charging timeout protection
    ESD 4KV

    IP2312U Application:
    Single lithium battery/lithium-ion battery charging

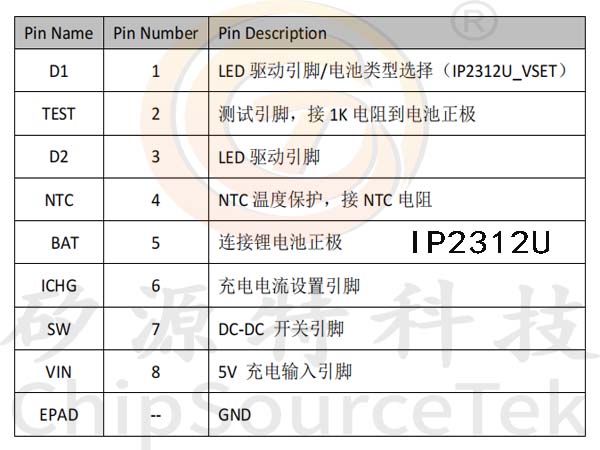

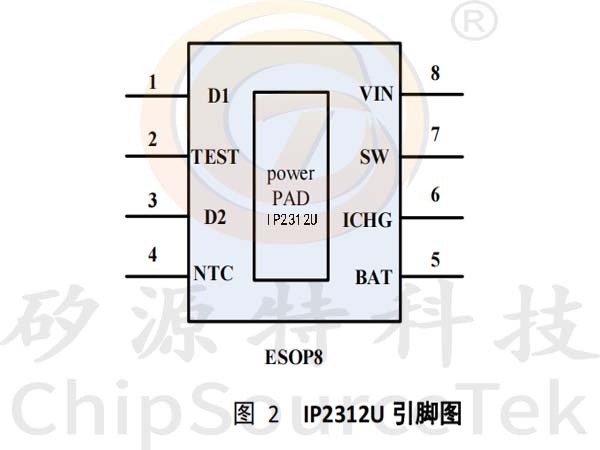

    IP2312U Pin Definition:

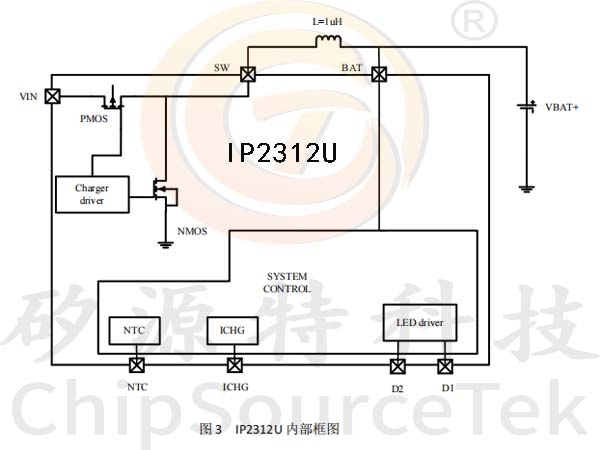

    IP2312U Block Diagram Structure:

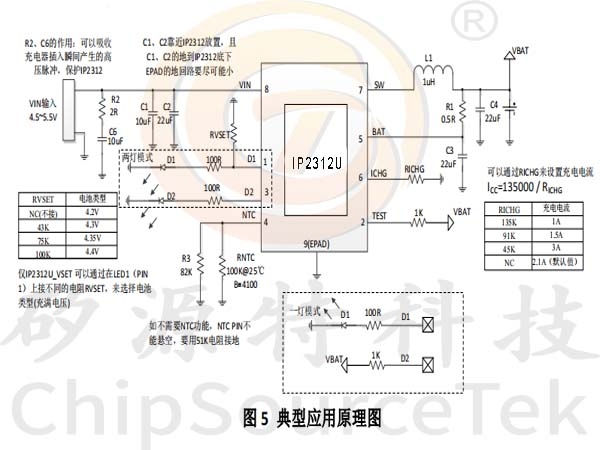

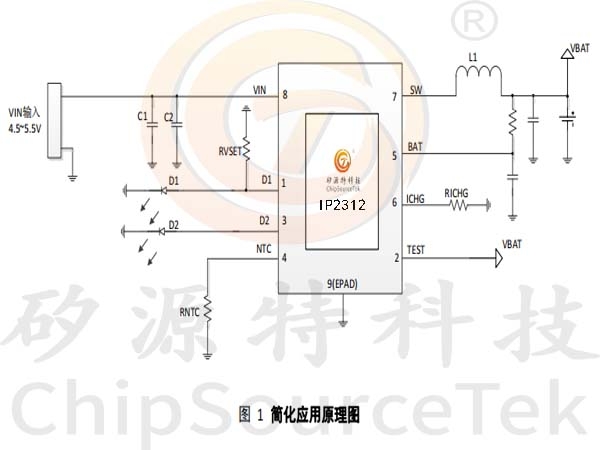

    IP2312U Typical application schematic diagram:
