RY9130 General Description:
The RY9130 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to provide a 3A continuous output current over a wide input supply range, with excellent load and line regulation. ECOT control operation provides very fast transient response and easy loop design as well as very tight output regulation.
The RY9130 requires a minimal number of readily available, external components and is available in a space saving SOT23-6 package.
RY9130 Features:
*Wide 4.5V to 16V Operating Input Range
*3A Continuous Output Current
*500KHz Switching Frequency
**ECOT Mode Control with Fast Transient Response
Built-in Over Current Limit
*Built-in Over Voltage Protection
*PFM Mode for High Efficiency in Light Load
*Internal Soft-Start
*70mΩ/50mΩ Low RDS(ON) Internal Power MOSFETs
*Output Adjustable from 0.6V
*No Schottky Diode Required
*Short Protection with Hiccup-Mode
*Integrated internal compensation
*Thermal Shutdown
*Available in SOT23-6 Package
*-40°C to +85°C Temperature Range
RY9130 Applications:
*Digital Set-top Box (STB)
*Tablet Personal Computer (Pad)
*Flat-Panel Television and Monitor
*Wi-Fi Router / AP
*Digital Video Recorder (DVR)
*Portable Media Player (PMP)
*Cable Modem/XDSL
*General Purposes

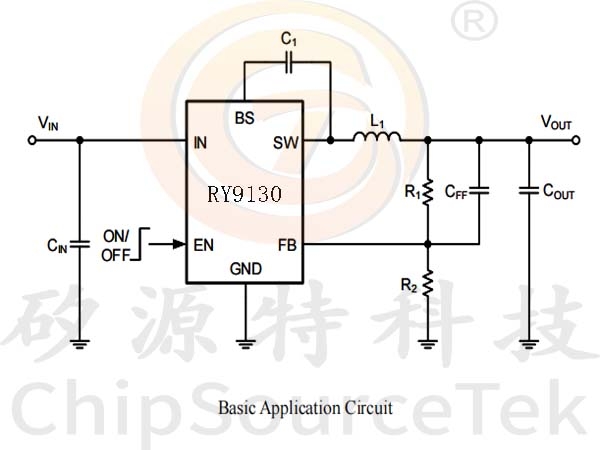

RY9130 Typical Application Circuit:

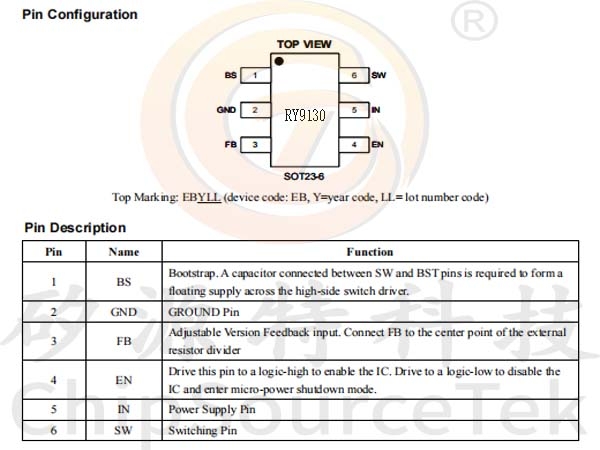

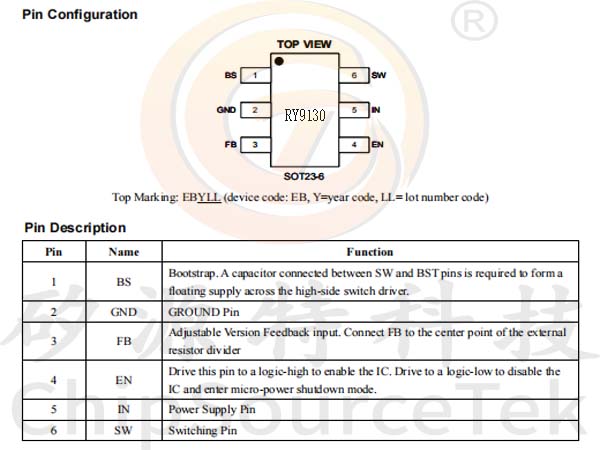

RY9130 Pin Description:
RY9130 Order Information (1):
|
Marking
|
Part No.
|
Model
|
Description
|
Package
|
T/R Qty
|
|
EBYLL |
70301301 |
RY9130 |
RY9130 ECOT Buck, 4.5-16V, 3A, 500KHz, VFB 0.6V, SOT23-6 |
SOT23-6 |
3000PCS |
Note (1): All RYCHIP parts are Pb-Free and adhere to the RoHS directive.

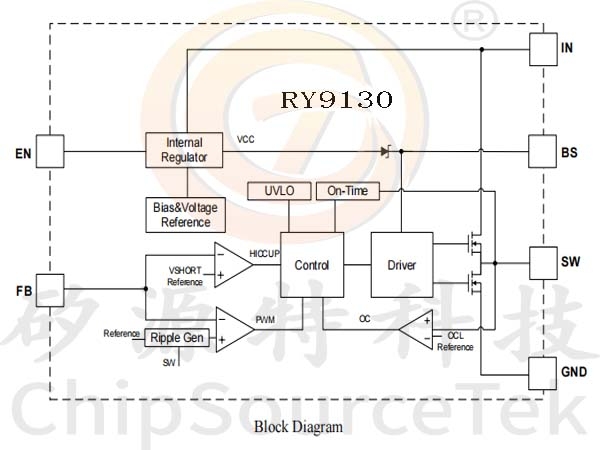

RY9130 Functional Block Diagram:
