TX6202

    The TX6202 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies.

    The TX6202 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series. SOT89 and SOT23-3
packages are available.
    TX6202 General Description:
        The TX6202 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies.
        The TX6202 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series. SOT89 and SOT23-3 packages are available.
       TX6202,TX6202P252M,TX6202P282M,TX6202P302M,TX6202P332M,TX6202P362M,TX6202P402M,TX6202P452M,TX6202P502M

    TX6202 Features :
    Low voltage drop: 0.26V@100mA
    High input voltage: 15V
    Low temperature coefficient
    Large Output Current: >0.5A
    Low Quiescent Current: 2.0uA
    Output voltage accuracy: tolerance ±2%
    Built-in current limiter
    SOT89 and SOT23-3 package

    TX6202 Applications:
    Battery-powered equipment
    Hand-Hold Equipment
    GRS Receivers
    Wireless LAN

    TX6202 Selection Table:

    Part No.

    Output Voltage

    Package

    Marking

    TX6202P252M

    2.5V

    SOT89

     SOT23-3

    24TX

    TX6202P282M

    2.8V

    24XX

    TX6202P302M

    3.0V

    24ZX

    TX6202P332M

    3.3V

    252X

    TX6202P362M

    3.6V

    255X

    TX6202P402M

    4.0V

    259X

    TX6202P452M

    4.5V

    25EX

    TX6202P502M

    5.0V

    25MX


    TX6202  Order Information:
    TX6202P①②③④
    Designator
    Symbol
    Description
    ①②
    Integer
    Output Voltage(1.5~5.0V)
    2
    accuracy
    P
    Package:SOT89
    M
    Package:SOT23-3

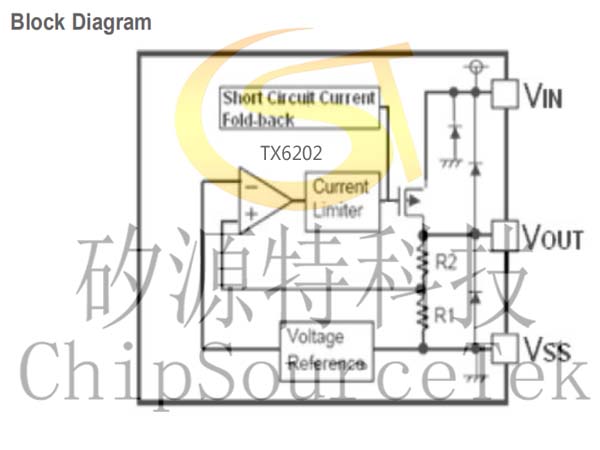

    TX6202  Block Diagram:


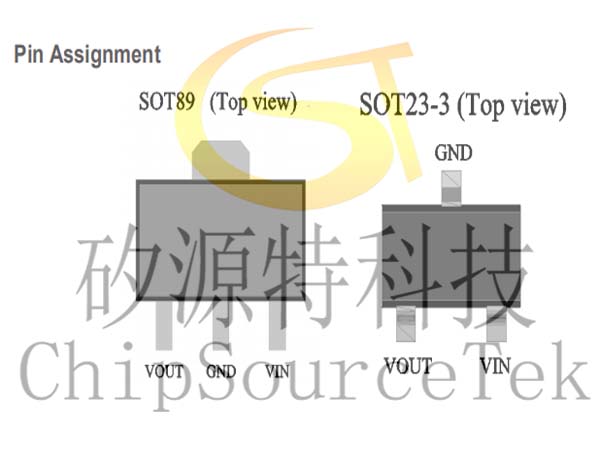

    TX6202 Pin Assignmen:


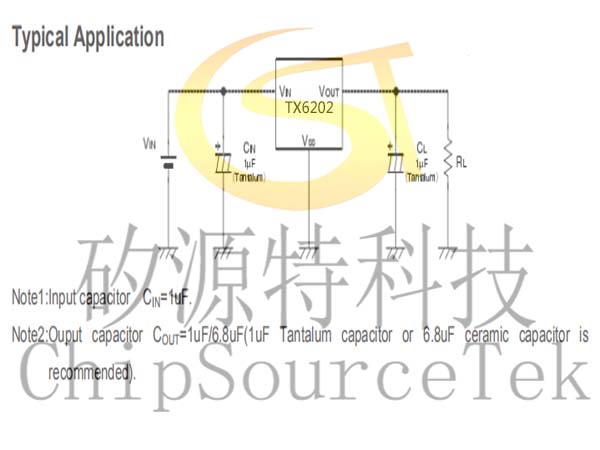

    TX6202 Typical Application:
