单N-MOS

CST40N10 TO-252

    CST40N10是BVDSS=100V,RDSON=25mΩ,ID=40A的N沟道快速切换Mosfets。提供TO-252封装。
    The CST40N10 is the highest performance trench N-ch MOSFETs with extreme high cell density,which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .
    The CST40N10 meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
    CST40N10 Description/描述:
        CST40N10是BVDSS=100V,RDSON=25mΩ,ID=40A的N沟道快速切换Mosfets。提供TO-252封装。
        The CST40N10 is the highest performance trench N-ch MOSFETs with extreme high cell density,which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .
        The CST40N10 meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.

    CST40N10 Features/特性:
    Super Low Gate Charge
    Green Device Available
    Excellent Cdv/dt effect decline
    Advanced high cell density Trench technology

    CST40N10 Product Summary/产品概览:
    BVDSS
    RDSON
    ID

    100V

    25mΩ

    40A

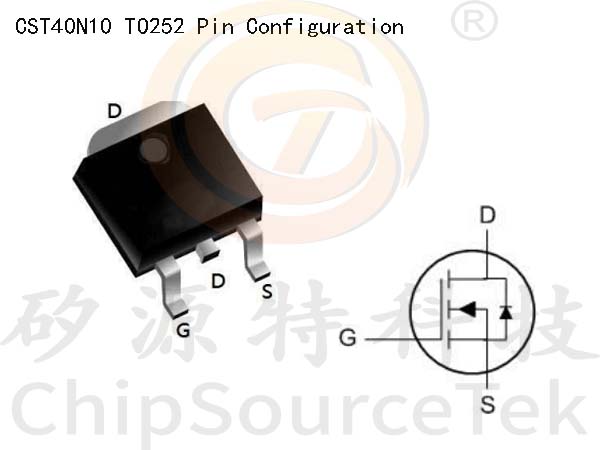

    CST40N10 TO252 Pin Configuration/引脚配置:

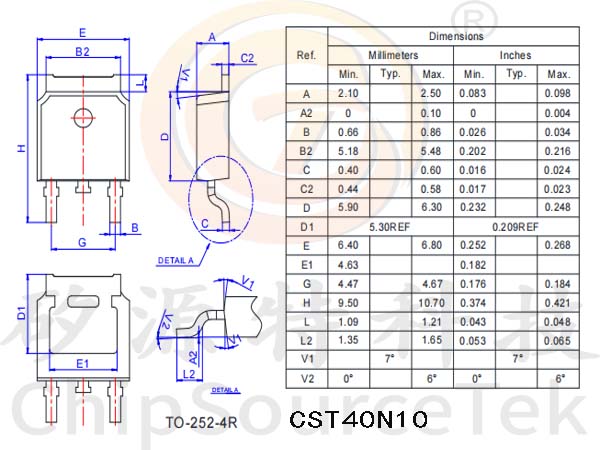

    CST40N10 Package Mechanical Data-TO-252-4R/包装机械数据-TO-252-4R:

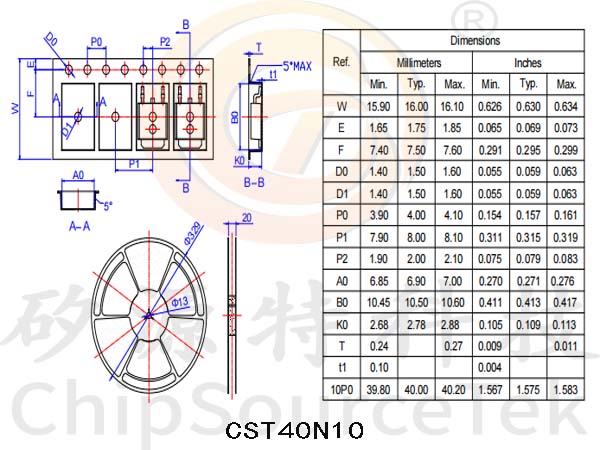

    CST40N10 Reel Spectification-TO-252-4R/卷盘规格-TO-252-4R:
