FM1022

    The FM1022 is a CMOS, Silicon-On-Insulator (SOI) double-pole, double-throw (DPDT) switch. The switch provides high linearity performance, low insertion loss and high isolation.
    Switching is controlled by one control voltage pin, VCTL. Depending on the logic voltage level applied to this pin, the RF1 and RF2 pins connect to one of the two other RF3 and RF4 pins through a low insertion loss path, while maintaining a high isolation path to the alternate port, ANT. No external DC blocking capacitors are required on the RF path as long as no DC voltage is applied externally.
    The FM1022 DPDT switch is provided in a QFN 10- pin, 1.1mm x 1.5mm x 0.45mm package. The functional block diagram and the pin configuration are shown in Figure 1. Signal pin assignments and functional pin descriptions are provided in Table 1.
    FM1022概述:
        The FM1022 is a CMOS, Silicon-On-Insulator (SOI) double-pole, double-throw (DPDT) switch. The switch provides high linearity performance, low insertion loss and high isolation.
        Switching is controlled by one control voltage pin, VCTL. Depending on the logic voltage level applied to this pin, the RF1 and RF2 pins connect to one of the two other RF3 and RF4 pins through a low insertion loss path, while maintaining a high isolation path to the alternate port, ANT. No external DC blocking capacitors are required on the RF path as long as no DC voltage is applied externally.
        The FM1022 DPDT switch is provided in a QFN 10- pin, 1.1mm x 1.5mm x 0.45mm package. The functional block diagram and the pin configuration are shown in Figure 1. Signal pin assignments and functional pin descriptions are provided in Table 1.

    FM1022
    特性:
    Broadband frequency range: 619 to 5925MHz
    GPIO interface
    RoHS compliant package
    Compact 1.1mm x 1.5mm x 0.45mm QFN 10-pin package, MSL1

    FM1022
    应用:
    2G/3G/4G/5G antenna swapping

    FM1022
    功能模块及引脚图:


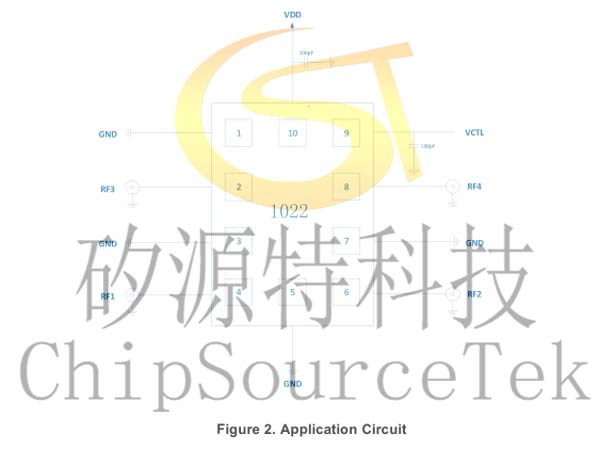

    FM1022应用电路:


    FM1022引脚描述:

    No.

    Name

    Description

    No.

    Name

    Description

    1

    GND

    Ground

    6

    RF2

    RF Port2

    2

    RF3

    RF Port3

    7

    GND

    Ground

    3

    GND

    Ground

    8

    RF4

    RF Port4

    4

    RF1

    RF Port1

    9

    VCTL

    Control Voltage Pin

    5

    GND

    Ground

    10

    VDD

    DC Power Supply


    Table 2. VCTL Truth Table for RF Channel Operating Modes
    VCTL RF Channel Operating Modes
    Low RF1 to RF3 On, RF2 to RF4 On
    High RF1 to RF4 On, RF2 to RF3 On
