LDO

TX75XXS

    The TX75XXS series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 37V.

    They are available with several fixed output voltages ranging from 3.0V to 5.0V.

    CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.
    TX75XXS General Description:
        The TX75XXS series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 37V.
        They are available with several fixed output voltages ranging from 3.0V to 5.0V.
        CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.

    TX75XXS Features:
    Low power consumption
    Low voltage drop
    Low temperature coefficient
    High input voltage (up to 37V)
    Output voltage accuracy: tolerance ±2%
    TO92、SOT23-3 and SOT89 package

    TX75XXS Applications:
    Battery-powered equipment
    Communication equipment
    Audio/Video equipment

    Selection Table:
    Part No.
    Output Voltage
    Package
    Marking
    TX7530Sxx
    3.0V
    TO92
    SOT89
    75XX-H#(for TO92)
    75XX-H#(for SOT89)
    XX-H(for SOT23-3)

    TX7533Sxx
    3.3V
    TX7536Sxx
    3.6V
    TX7544Sxx
    4.4V
    TX7550Sxx
    5.0V
    Note:”xx” stands for package and RoHS.
    TO92 & SOT89 packages will add a “#” mark at the end of the marking.

    Order Information:
    TX75①②③④⑤
    Designator
    Symbol
    Description
    ①②
    Integer
    Output Voltage(3.0~5.0V)
    S
    Standard
    T
    Package:TO-92
    P
    Package:SOT89
    M
    Package:SOT23-3
    R
    RoHS / Pb Free
    G
    Halogen Free

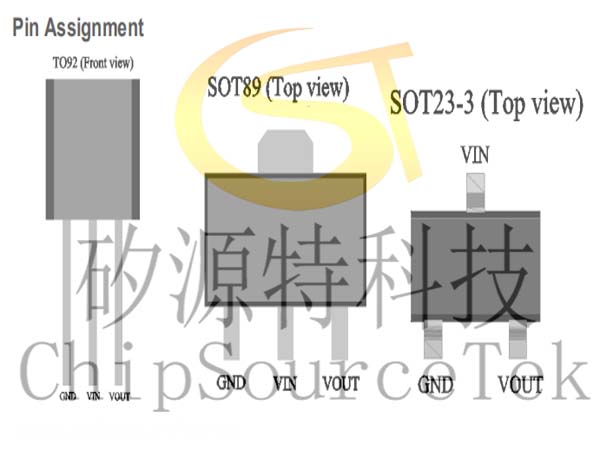

    TX75XXS Pin Assignment:


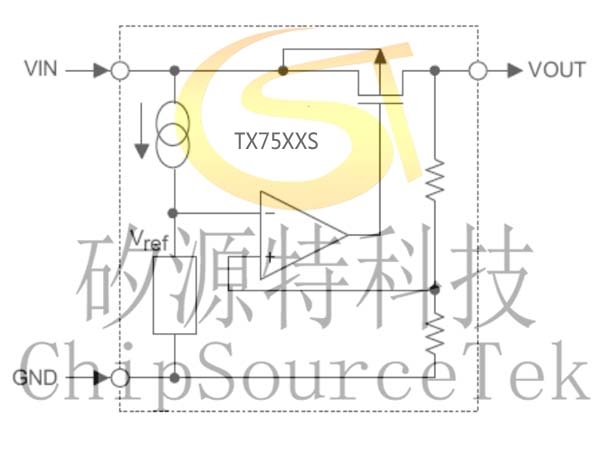

    TX75XXS Block Diagram:

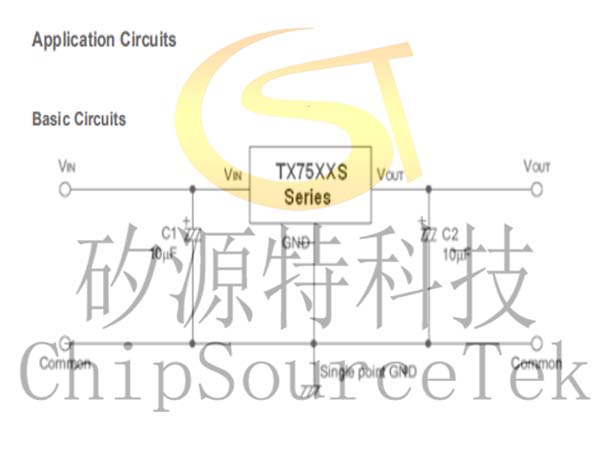

    TX75XXS Application Circuits:
