LDO

AC24

    AC24系列是一组低压差(LDO)稳压器,具有宽输入电压范围、低压差、低功耗和小型化封装等优点。
    静态电流仅为1.5 A,非常适合为电池供电的始终开启系统供电,这些系统需要极低的空闲状态功耗以延长使用寿命。
    AC24系列线性稳压器采用陶瓷输出电容,可在2V至24V的宽输入范围和整个输出负载电流范围(0mA至500mA)内保持稳定。
    The AC24 series are a group of low-dropout ( LDO ) voltage regulators offering the benefits of wide input voltage range, low dropout voltage, low power consumption, and miniaturized packaging.
    Quiescent current of only 1.5µA makes these devices ideal for powering the battery-powered, always-on systems that require very little idle-state power dissipation to a longer service life.
    The AC24 series of linear regulators are stable with the ceramic output capacitor over its wide input range from 2V to 24V and the entire range of output load current ( 0mA to 500mA ).
    C24 General Description:
        The AC24 series are a group of low-dropout ( LDO ) voltage regulators offering the benefits of wide input voltage range, low dropout voltage, low power consumption, and miniaturized packaging.
        Quiescent current of only 1.5µA makes these devices ideal for powering the battery-powered, always-on systems that require very little idle-state power dissipation to a longer service life.
        The AC24 series of linear regulators are stable with the ceramic output capacitor over its wide input range from 2V to 24V and the entire range of output load current ( 0mA to 500mA ).

    AC24 Features:
    1.5μA Ground Current at no Load
    ±2% Output Accuracy
    500mA Output Current
    Wide Operating Input Voltage Range: 2V to 24V
    Dropout Voltage: 0.35V at 100mA / VOUT 5V
    Support Fixed Output Voltage 1.8V, 3.3V, 5V
    Stable with Ceramic or Tantalum Capacitor
    Current Limit Protection
    Over-Temperature Protection
    SOT-23-3, SOT-23-5, SOT-89-3 Packages Available

    AC24 Applications:
    Portable, Battery Powered Equipment
    Low Power Microcontrollers
    Laptop, Palmtops and PDAs
    Wireless Communication Equipment
    Audio/Video Equipment
    Car Navigation Systems
    Industrial Controls
    Weighting Scales
    Meters
    Home Automation

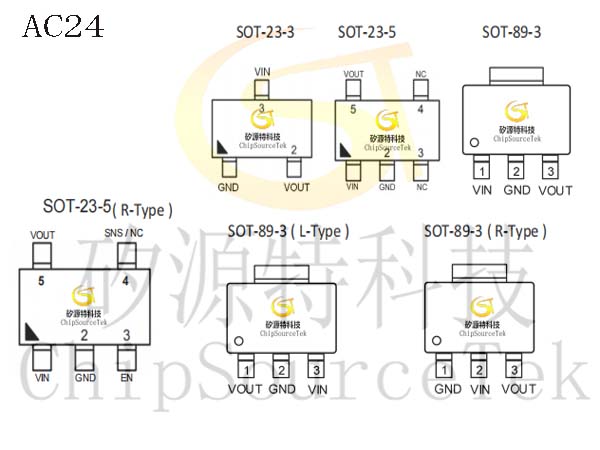

    AC24 Pin Configurations:

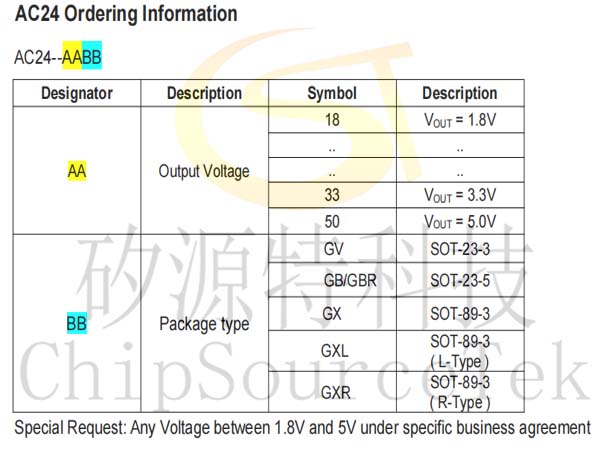

    AC24 Ordering Information:

    AC24 Description of Functional Pins:

    Pin No
    Pin Name
    Pin Function
    SOT-23-3
    SOT23-5| R
    SOT-89-3
    SOT-89-3
    ( L-Type )
    SOT-89-3
    ( R-Type )


    1
    2
    2
    2
    2
    1
    GND
    Ground
    2
    5
    5
    3
    1
    3
    VOUT
    Output of the Regulator
    3
    1
    1
    1
    3
    2
    VIN
    Input of Supply Voltage.

    3,4
    4



    NC
    No Internal Connection.


    3



    CE
    Enable Control Input.

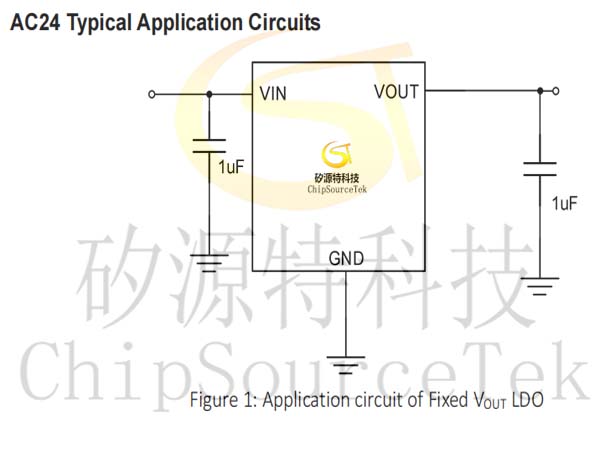

    AC24 Typical Application Circuits:

    AC24 Function Block Diagram:
