Voltage rise fall chip

RY8601

    The RY8601 is a current mode monolithic buck switching regulator. Operating with an input range of 4.5V~60V, it supplies 0.6A of continuous output current over a wide input-supply range with excellent load and line regulation. At light loads, the regulator operates in low frequency to maintain high efficiency and low output ripple. Current mode control provides tight load transient response. RY8601 achieves low EMI signature with well-controlled switching edges. Fault condition protection includes over-voltage protection, over-current protection, short-circuit protection, thermal shutdown and input under voltage lockout. The RY8601 is available in SOT23-6 package, which provides a compact solution with minimal external components.
    RY8601 General Description:
        The RY8601 is a current mode monolithic buck switching regulator. Operating with an input range of 4.5V~60V, it supplies 0.6A of continuous output current over a wide input-supply range with excellent load and line regulation. At light loads, the regulator operates in low frequency to maintain high efficiency and low output ripple. Current mode control provides tight load transient response. RY8601 achieves low EMI signature with well-controlled switching edges. Fault condition protection includes over-voltage protection, over-current protection, short-circuit protection, thermal shutdown and input under voltage lockout. The RY8601 is available in SOT23-6 package, which provides a compact solution with minimal external components.

    RY8601 Features:
    Wide 4.5V to 60V Operating Input Range
    0.6A Continuous Output Current
    500KHz Switching Frequency
    Short-Circuit Protection
    Built-in Over Current Limit
    Built-in Over Voltage Protection
    PSM Mode for High Efficiency in Light Load
    500mΩ Internal Power MOSFETs
    Output Adjustable from 0.8V
    Low EMI Signature
    Internal Soft-Start
    Thermal Shutdown
    Available in SOT23-6 Packages
    -40°C to +85°C Temperature Range

    RY8601 Applications:
    Automotive GPS
    Automotive Entertainment
    Power Supply for Linear Chargers
    Network Equipment

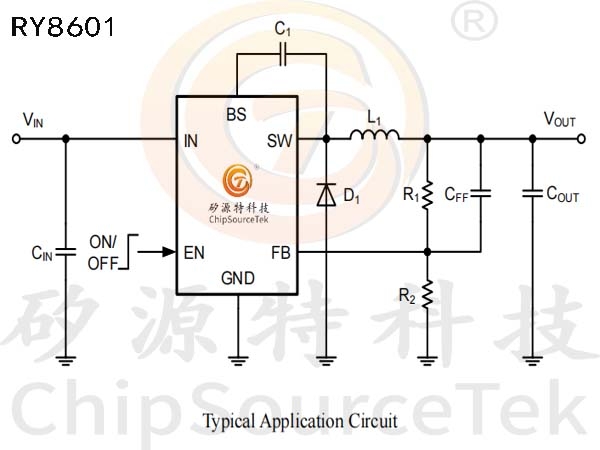

    RY8601 Typical Application Circuit:

    RY8601 Package and Pin Description:

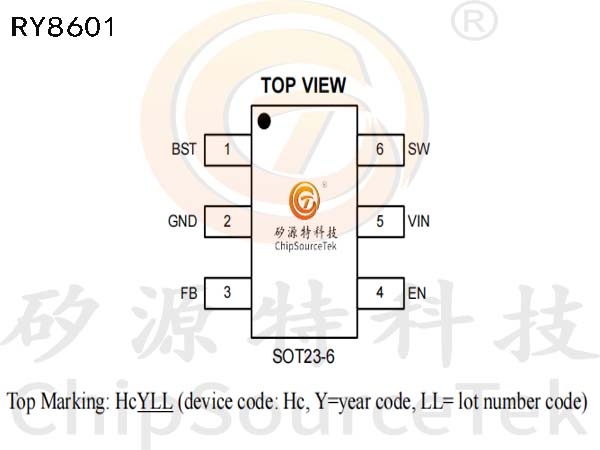

    Pin Configuration:

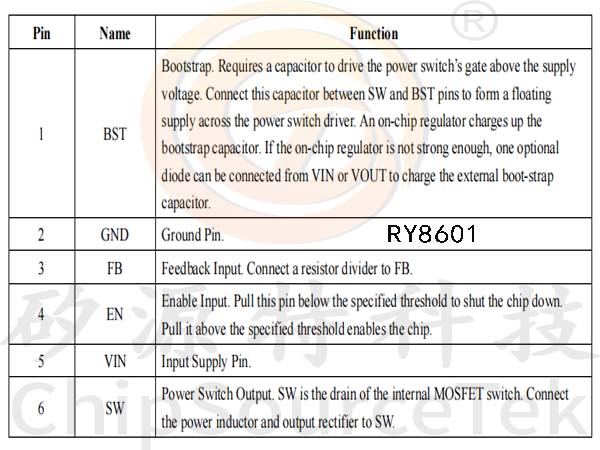

    Pin Description:

    RY8601 Order Information (1):
    Marking
    Part No.
    Model
    Description
    Package
    T/R Qty

    HcYLL

    70301740

    RY8601AT6

    RY8601AT6 PSM Async Buck, 4.5- 60V, 0.6A, 500KHz, VFB 0.8V, SOT23-6

    SOT23-6

    3000PCS

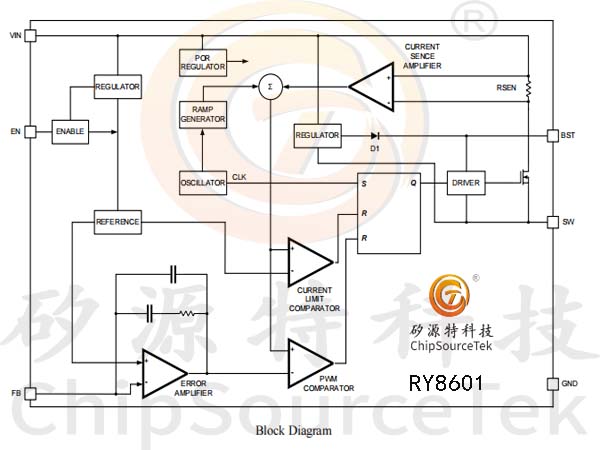

    RY8601 Functional Block Diagram:
