PE8205概述:
PE8205是VDS=20V,ID=6A,RDS(ON)<26mΩ,@VGS=4.5V,RDS(ON)<28mΩ,@VGS=3.8V,RDS(ON)<36mΩ,@VGS=2.5V的N-Channel Enhancement Mode Power MOSFET.
PE8205的丝印是8205.PE8205提供SOT-23-6L封装.
PE8205的丝印是8205.PE8205提供SOT-23-6L封装.
The PE8205 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of applications.
PE8205特性:
VDS = 20V, ID = 6A
RDS(ON) < 26mΩ @ VGS=4.5V
RDS(ON) < 28mΩ @VGS=3.8V
RDS(ON) < 36mΩ @VGS=2.5V
High Power and current handing capability
Lead free product is acquired
Surface Mount Package
PE8205应用:
Battery Protection
Load switch

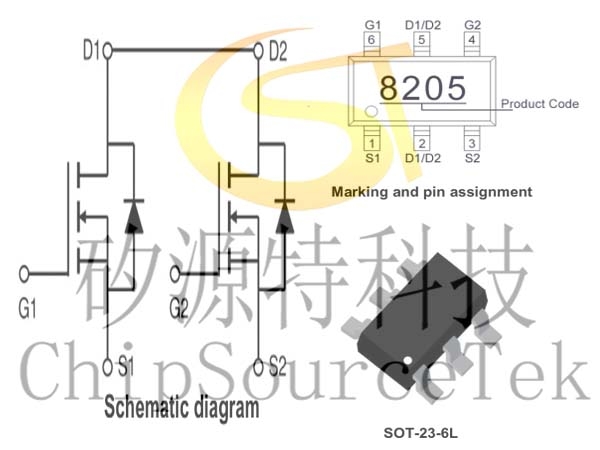

PE8205典型应用及引脚:
