5g-RF

FM1119C

    The FM1119C is a single-pole four-throw (SP4T) switch designed for static Antenna/impedance tuning applications which requires very low insertion loss and high power handling capability with a minimum of DC power consumption. The high linearity performance achieved by the FM1119C make it ideal for use in multi-mode GSM/GPRS/ EDGE/WCDMA/LTE applications.

    The FM1119C is controlled by a standard GPIO interface for easy control. The FM1119C includes an integrated LDO (Low Drop Out) regulator, which enables operation over a very wide supply range. All pins are ESD protected to ensure 2kV HBM ESD tolerance. The FM1119C is packaged in an ultra compact 1.6 x 1.6 mm, 11-pin, QFN package.

    FM1119C概述:
        The FM1119C is a single-pole four-throw (SP4T) switch designed for static Antenna/impedance tuning applications which requires very low insertion loss and high power handling capability with a minimum of DC power consumption. The high linearity performance achieved by the FM1119C make it ideal for use in multi-mode GSM/GPRS/ EDGE/WCDMA/LTE applications.
        The FM1119C is controlled by a standard GPIO interface for easy control. The FM1119C includes an integrated LDO (Low Drop Out) regulator, which enables operation over a very wide supply range. All pins are ESD protected to ensure 2kV HBM ESD tolerance. The FM1119C is packaged in an ultra compact 1.6 x 1.6 mm, 11-pin, QFN package.

    FM1119C特性:
    Low insertion loss: 0.4 dB at 1 GHz.
    High peak voltage handling.
    High linearity.
    Ultra small package: QFN, 11-pin, 1.6x1.6 mm. No external DC blocking capacitor required(Unless external DC is applied to the RF ports).
    Wide VDD voltage range.
    2 kV HBM ESD protection at all ports.

    FM1119C应用:
    Antenna Tuning
    Band Switching
    Impedance Tuning

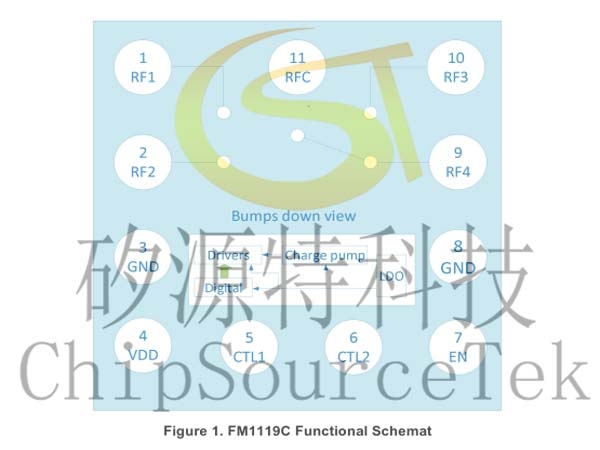

    FM1119C功能图:

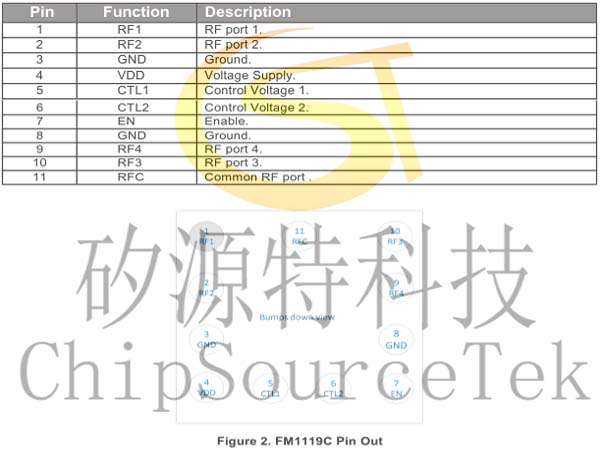

    FM1119C引脚名称及描述:
