FM1033

    The FM1033 is a CMOS, high isolation, Silicon-OnInsulator (SOI) three-pole, three -throw (3P3T) switch. The switch provides high linearity performance, low insertion loss and high isolation.

    The FM1033 is compatible with MIPI control, which is a key requirement for many cellular transceivers. RF1, RF3, RF5 pins connect to one of the three other RF port pins (RF2 or RF4 or RF6) through a low insertion loss path, while maintaining a very high isolation path to the other ports. No external DC blocking capacitors are required on the RF path as long as no DC voltage is applied externally.

    The FM1033 high isolation 3P3T switch is provided in a QFN (16-pin, 2.0 x 2.0 x 0.55 mm) package. A functional block diagram is shown in Figure 1. The pin configuration and package are shown in Figure 1, too. Signal pin assignments and functional pin descriptions are provided in Table 1.
    FM1033概述:
        The FM1033 is a CMOS, high isolation, Silicon-OnInsulator (SOI) three-pole, three -throw (3P3T) switch. The switch provides high linearity performance, low insertion loss and high isolation.
        The FM1033 is compatible with MIPI control, which is a key requirement for many cellular transceivers. RF1, RF3, RF5 pins connect to one of the three other RF port pins (RF2 or RF4 or RF6) through a low insertion loss path, while maintaining a very high isolation path to the other ports. No external DC blocking capacitors are required on the RF path as long as no DC voltage is applied externally.
        The FM1033 high isolation 3P3T switch is provided in a QFN (16-pin, 2.0 x 2.0 x 0.55 mm) package. A functional block diagram is shown in Figure 1. The pin configuration and package are shown in Figure 1, too. Signal pin assignments and functional pin descriptions are provided in Table 1.

    FM1033特性:
    Multi-Band operation 0.4 to 5.0GHz
    Excellent insertion loss
    0.55dB Insertion Loss at 1.0GHz
    0.75dB Insertion Loss at 2.7GHz
    0.90dB Insertion Loss at 3.8GHz
    Input 0.1dB compression point: 36dBm
    MIPI RFFE V2.1 interface compatible
    Compact 2.0mm x 2.0mm x 0.55 mm QFN-16 package, MSL

    FM1033应用:
    Simultaneous voice and LTE systems
    Antenna switching

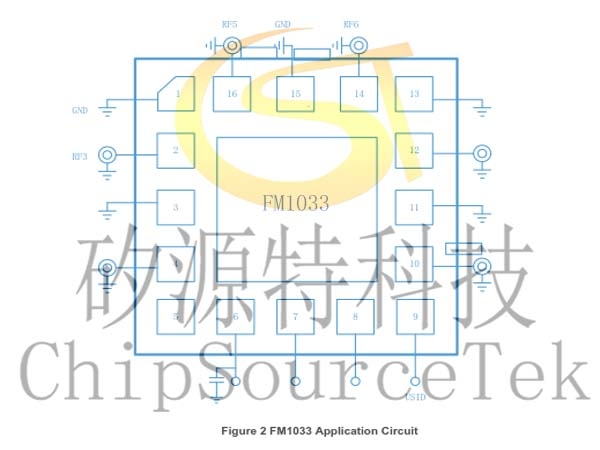

    FM1033应用电路:

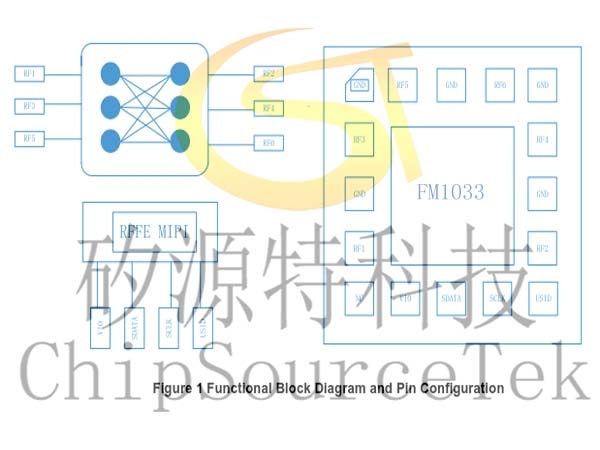

    FM1033功能框图与引脚配置:

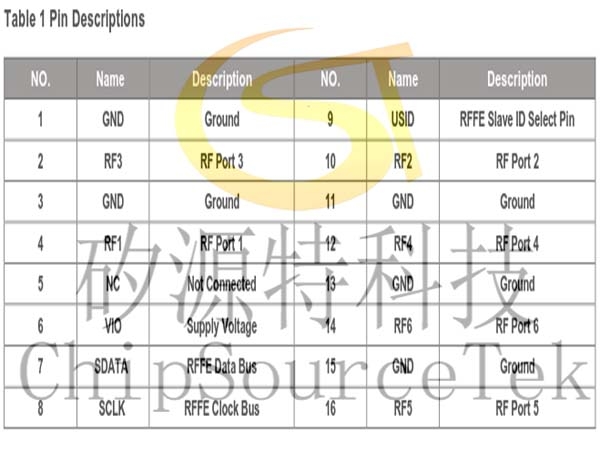

    FM1033引脚说明:
